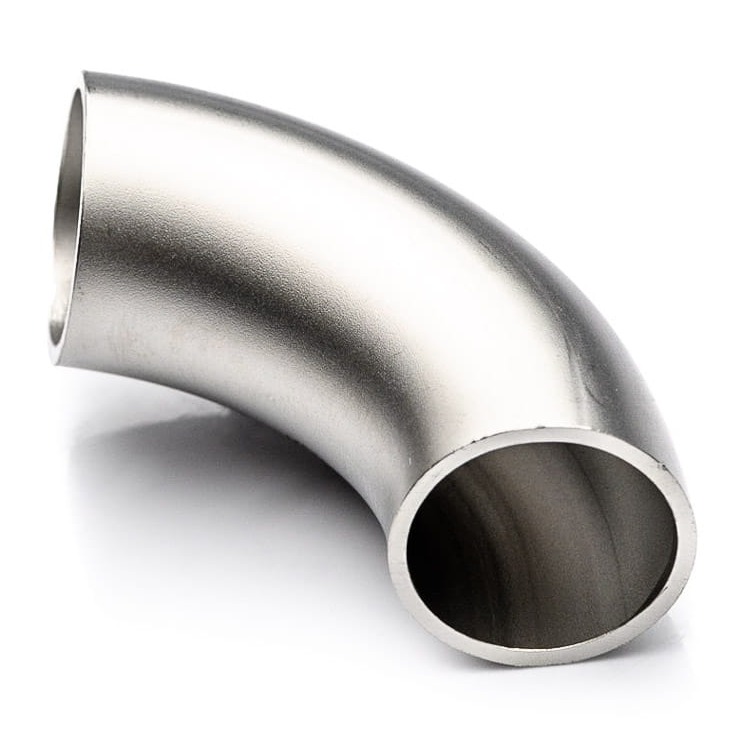

Hamburg Elbow 10'' SCH10S 304L 90°

• Size: 10''
• Wall thickness: SCH10S
• Material: 304L stainless steel (1.4301 / 1.4307)
• Bend radius: 3D (standard long radius)
• Angle: 90°
• Excellent weldability
• Manufactured according to: EN 10253-4 Type A
• Butt weld elbow

Alternative Name: Hamburg Elbow 10'' SCH10S 304L 90°, stainless steel butt weld elbow, SS304 pipe elbow, AISI 304L elbow, inox welding elbow, long-radius 3D pipe bend.

Information

Hamburg Elbow 10'' SCH10S 304L 90° is a butt weld pipe fitting designed to change the direction of flow in industrial piping systems while maintaining smooth flow characteristics and minimizing pressure losses. The 3D long-radius design reduces flow resistance and provides excellent mechanical performance in demanding process installations.

304 / 304L Stainless Steel

304 / 304L stainless steel is the most widely used corrosion-resistant stainless steel grade. It offers excellent weldability, formability, and resistance to many chemicals, making it suitable for industrial and hygienic applications.

Equivalent grades: 1.4301, 1.4306, 1.4307, AISI 304L, SS304, X5CrNi18-10.

Advantages of 304 / 304L Stainless Steel

• Excellent corrosion resistance
• Outstanding weldability
• Non-magnetic
• Excellent ductility
• Good impact strength
• Wide operating temperature range

Applications

• Chemical industry
• Food processing industry
• Pharmaceutical equipment
• Breweries and dairies
• Industrial process piping
• Marine installations
• Architectural structures

Available Materials

• S235JR
• ST37.0
• P235GH
• P265GH
• P355NL1
• P355NH
• 16Mo3
• 13CrMo4-5
• A105
• P245
• 1.4301
• 1.4306
• 1.4307
• 1.4404
• 1.4541
• 1.4571
• 304
• 316
• 316L
• 321

Available Standards

• DIN 2605-1
• DIN 2605-2
• ASME / ANSI B16.9
• EN 10253-2 Type A
• EN 10253-2 Type B
• EN 10253-4 Type A

Available Versions

• 45°
• 90°
• 180°
• 1D
• 1.5D
• 2D
• 2.5D
• 5D
• Sizes from DN15 to DN800

We also offer stainless steel butt weld elbows in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Hamburg Elbow 10'' SCH10S 304L 90° is also available in other sizes from our product range.
