Socket Weld BSP Coupling 1" 316L Class 3000

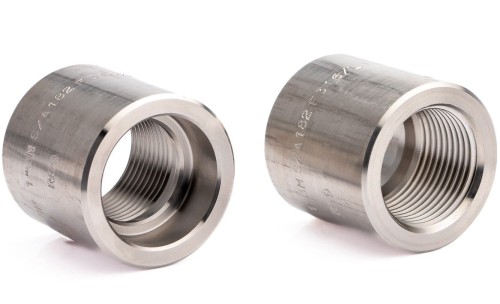

Mufa redukcyjna 1'' socket weld BSP 316L 3000lb.jpg

Availability: last items

Dispatched within: 24 hours

Gross price: €24.67

incl. 23% TAX, excl. shipping costs

Regular price:

24.67

Net price: €20.06

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10632E

Description

Socket Weld BSP Coupling 1" 316L Class 3000

Size: 1" × 1"
Suitable for pipe: DN25 (33.7 mm)
Connection: One end Socket Weld (SW), the other end BSP female thread
Material: 316L stainless steel
Suitable for welding
Pressure class: Class 3000 (206 bar)
3.1 material certificate available on request (free of charge)
Applications: Industrial pressure systems, steel industry, marine industry, refineries
Origin: European Union

Mufa 1'' socket weld BSP 316L 3000lb

Alternative Name

Socket Weld BSP Coupling 1" 316L Class 3000, Stainless Steel Socket Weld Coupling, SW to BSP Coupling, Socket Weld Pipe Coupling, Stainless Steel Weld Fitting, SW Coupling

Information

The 1" Socket Weld BSP Coupling 316L Class 3000 belongs to the group of high-pressure Socket Weld fittings, where the pipe is inserted into the socket before welding. The welded socket creates a strong, leak-tight connection. The Socket Weld (SW) system ensures safety, durability, and permanent pipe joints. SW fittings make it easy to select the correct pressure class for the installation.

Each fitting is permanently marked with its size, material grade, heat number, and pressure class. All Socket Weld fittings are available with a 3.1 material certificate.

Advantages

Pipe end preparation without beveling
No special preparation required before welding
Alternative to threaded fittings
Permanent and leak-tight connection
Suitable for high-pressure applications

Marking

Each fitting is permanently marked with:

Size
Material grade
Heat number
Pressure class
Thread type (where applicable)

Manufacturing and marking comply with the applicable standards.

Material

316L stainless steel is one of the most widely used corrosion-resistant stainless steels. It offers excellent weldability and formability.

Alternative material designations: DIN 1.4401, DIN 1.4404, SS316, SS316L, AISI 316, AISI 316L.

Applications of 316L Stainless Steel

Heat exchangers
Pharmaceutical equipment
Dairy industry
Brewing industry
Marine fittings
Coastal architecture
Food processing industry

Advantages of 316 / 316L Stainless Steel

Non-magnetic stainless steel
Excellent ductility
Excellent impact strength
Outstanding weldability
Good mechanical strength
Wide operating temperature range

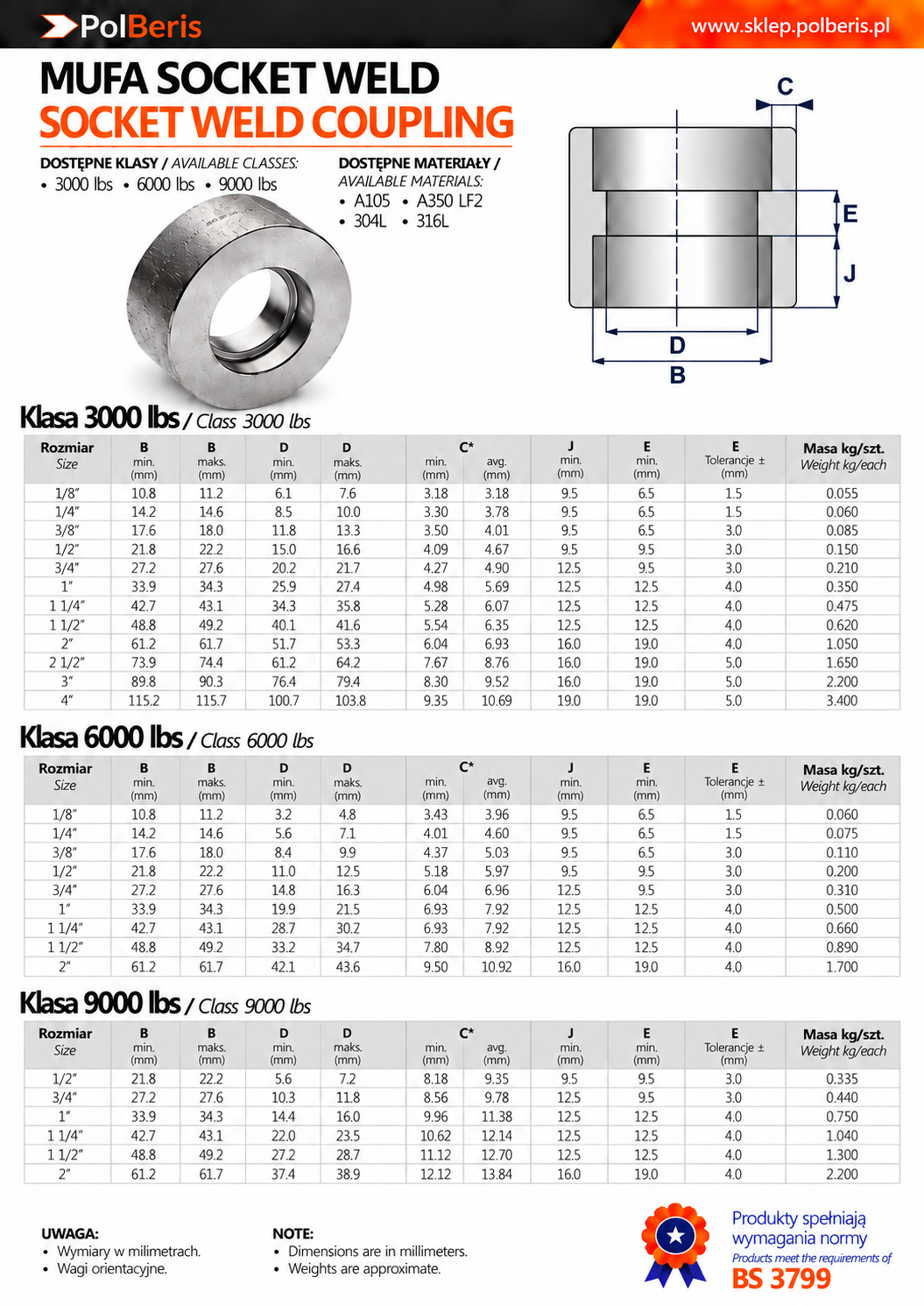

Available Sizes

1/8" • 1/4" • 3/8" • 1/2" • 3/4" • 1" • 1-1/4" • 1-1/2" • 2" • 2-1/2" • 3" • 3-1/2" • 4"

We also offer Socket Weld couplings in other sizes on request. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about Socket Weld couplings here >>

Technical data

Coupling Type	Coupling
Material	Stainless Steel
Pressure	Pressure Range 101–250 bar
Connection 1	1''
Thread Type – Connection 1	BSP / G / Rp / Rc Thread
Connection 2	1''
Thread Type – Connection 2	Socket Weld (SW)
