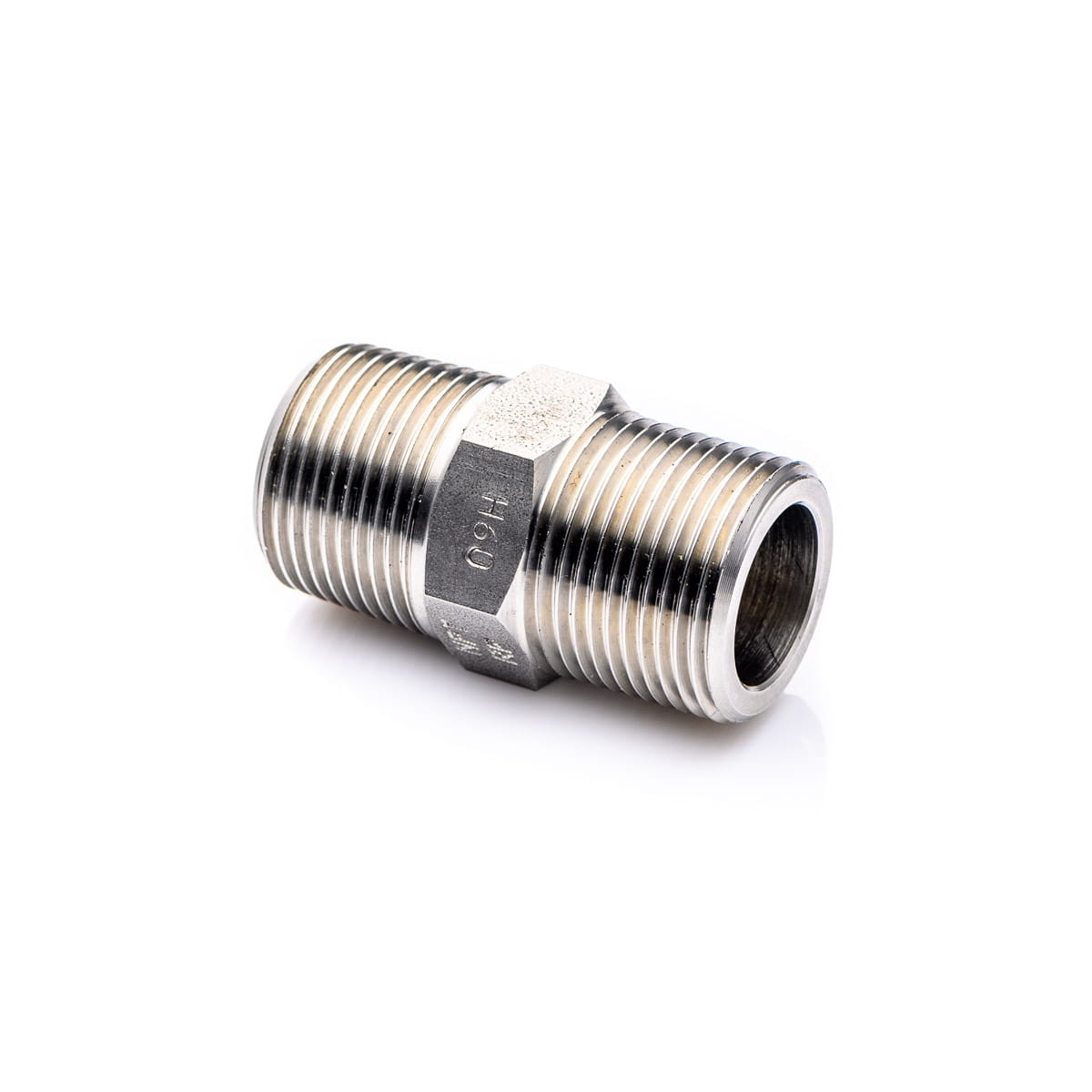

Nipple stainless steel 1'' BSP 316L kl. 3000

• Size: 1''
• Thread: BSP
• Material: Stainless steel 316L, 1.4404, SA182
• Pressure class: 3000 (206 bar)
• Certificates: 3.1 certificate available on request (free)
• Standard: ISO 228
• Applications: High-pressure installations, boilers, ships, heavy industry

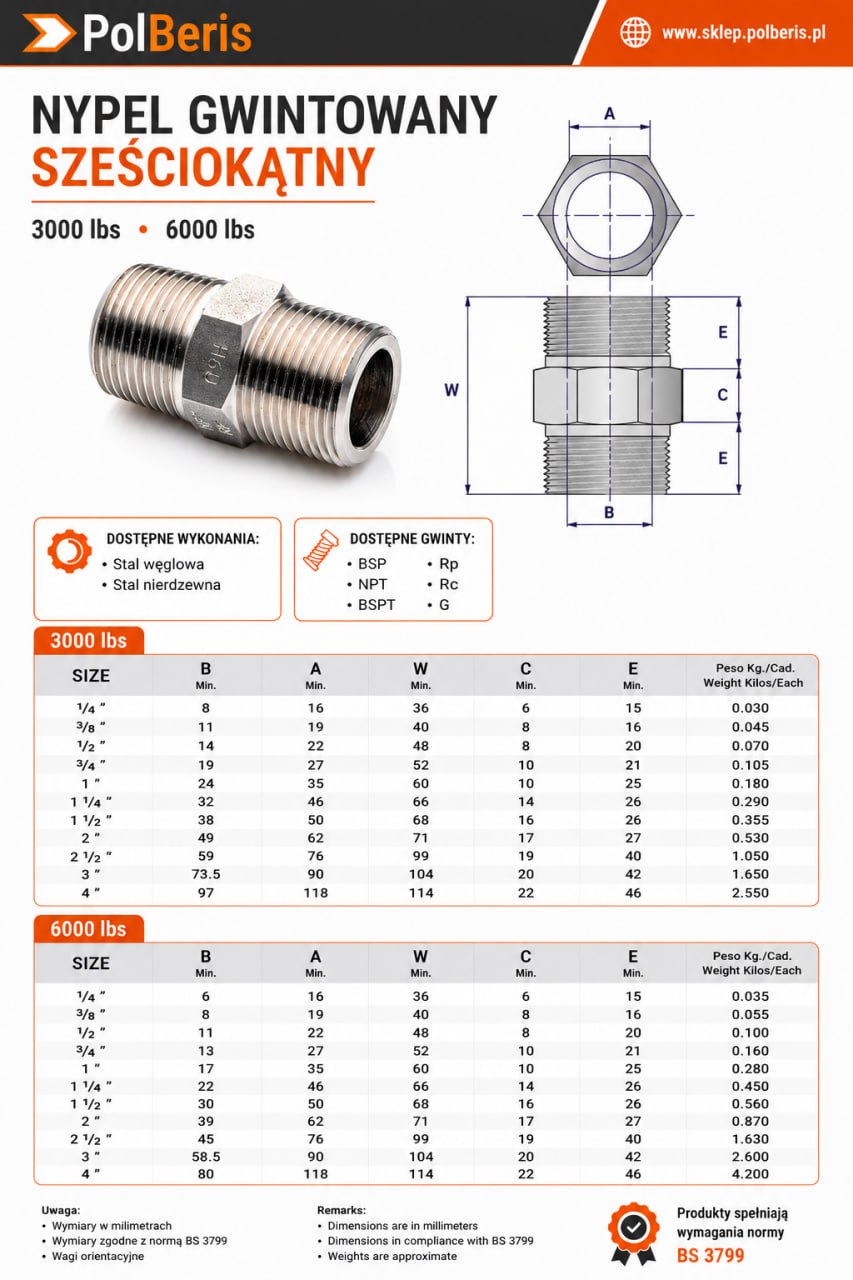

B = 24 mm

A = 35 mm

W = 60 mm

C = 10 mm

E = 25 mm

Also Known As: 1'' BSP 316L hex nipple, stainless steel reducing nipple, corrosion-resistant, threaded fitting GZ MM, with 3.1 certificate

Product Information

The 1'' BSP 316L stainless steel nipple is a high-pressure threaded fitting designed for various industrial applications. Its main uses include pressure systems, boilers, heavy industry, and marine environments. The external threads conform to BSP (British Standard Pipe) standards, ensuring compatibility with a wide range of piping systems. Its robust design guarantees system integrity, particularly in demanding environments where high pressure and temperature are critical factors. This fitting is engineered to handle high-pressure systems efficiently, rated at Class 3000 (equivalent to 206 bar).

Steel Grade 316L: 316L stainless steel is a highly corrosion-resistant material with excellent weldability and formability. Originally developed for the paper industry, it demonstrates strong resistance to sulfur compounds used in paper processing.

Applications: Heat exchangers, pharmaceutical equipment, dairy installations, breweries, marine fittings, coastal architecture, food industry.

Advantages of 316L: Non-magnetic, excellent ductility, high impact resistance, superb weldability, good strength, wide temperature range.

Available Sizes: 1/8’’ – ¼’’ – 3/8’’ – ½’’ – ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ – 3 ½’’ – 4’’

More information about fittings and nipples you may find here>>

Our offer includes also nipples in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
