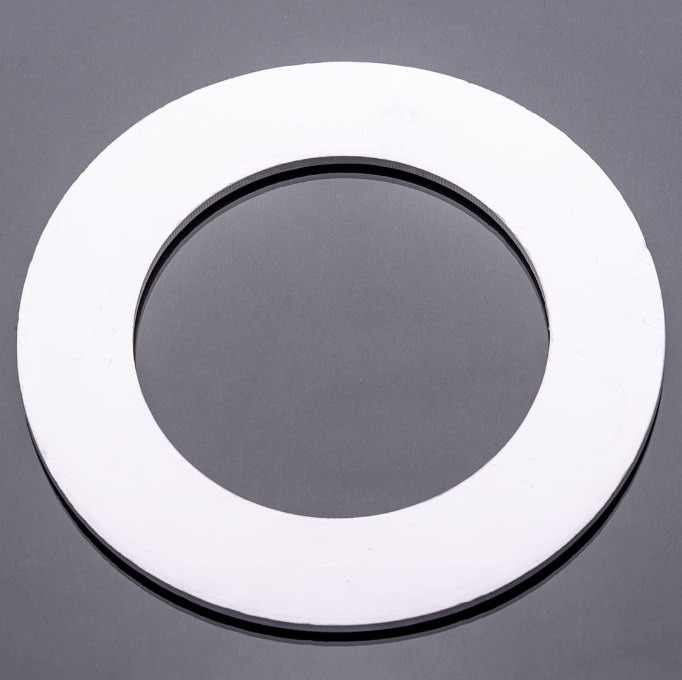

Gasket DN50 PN40 PTFE Graphite

• Size: DN50
• Inside diameter: 60.3 mm
• Outside diameter: 105.4 mm
• Pressure rating: PN40
• Material: PTFE with 15% graphite
• Maximum intermittent temperature: 315°C
• Continuous operating temperature: -200°C to +260°C
• High thermal resistance with increased mechanical strength
• Zero moisture absorption
• Non-asbestos, non-flammable material

Alternative Name: Gasket DN50 PN40 PTFE Graphite, PTFE graphite flange gasket, graphite-filled PTFE gasket, flat flange gasket, thermal insulation gasket.

Information

Gasket DN50 PN40 PTFE Graphite combines the outstanding chemical resistance of PTFE with the enhanced mechanical strength provided by 15% graphite. The graphite filler improves hardness, wear resistance, and durability, making the gasket ideal for demanding industrial applications involving high loads and elevated temperatures.

In addition to its widespread use in the chemical and food processing industries, PTFE is also valued for its excellent electrical insulation properties.

PTFE is resistant to almost all solvents, with fluorine and certain fluorine compounds being among the few exceptions.

Properties

• Maximum intermittent temperature: 315°C
• Continuous operating temperature: -200°C to +260°C
• High thermal resistance
• Increased mechanical strength
• Improved wear resistance
• Zero moisture absorption
• Suitable media: chemicals, cold water, hot water, steam, alcohols, salt solutions, dilute acids and alkalis, solvents

Available on request:

• With or without bolt holes (IBC type)

Applications

Gasket DN50 PN40 PTFE Graphite is widely used in:

• Industrial installations
• Hydraulic systems
• Chemical processing plants
• Food processing industry
• Pumps
• Industrial valves
• Heat exchangers
• Pharmaceutical equipment
• Hydraulic and pneumatic systems
• Agricultural machinery
• Chemical reactors
• Process pipelines

Custom Manufacturing

Available according to:

• EN 1514-1
• EN 12560-1
• ASME B16.20
• DIN 2690
• Customer technical drawings
• TG, SR and IBC flange gasket designs
• Custom shapes and dimensions
• Large segmented gaskets

We also offer PTFE, graphite-filled PTFE, rubber gaskets, sealing sheets, and O-rings in a wide range of sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Gasket DN50 PN40 PTFE Graphite is also available in other sizes from our product range.
