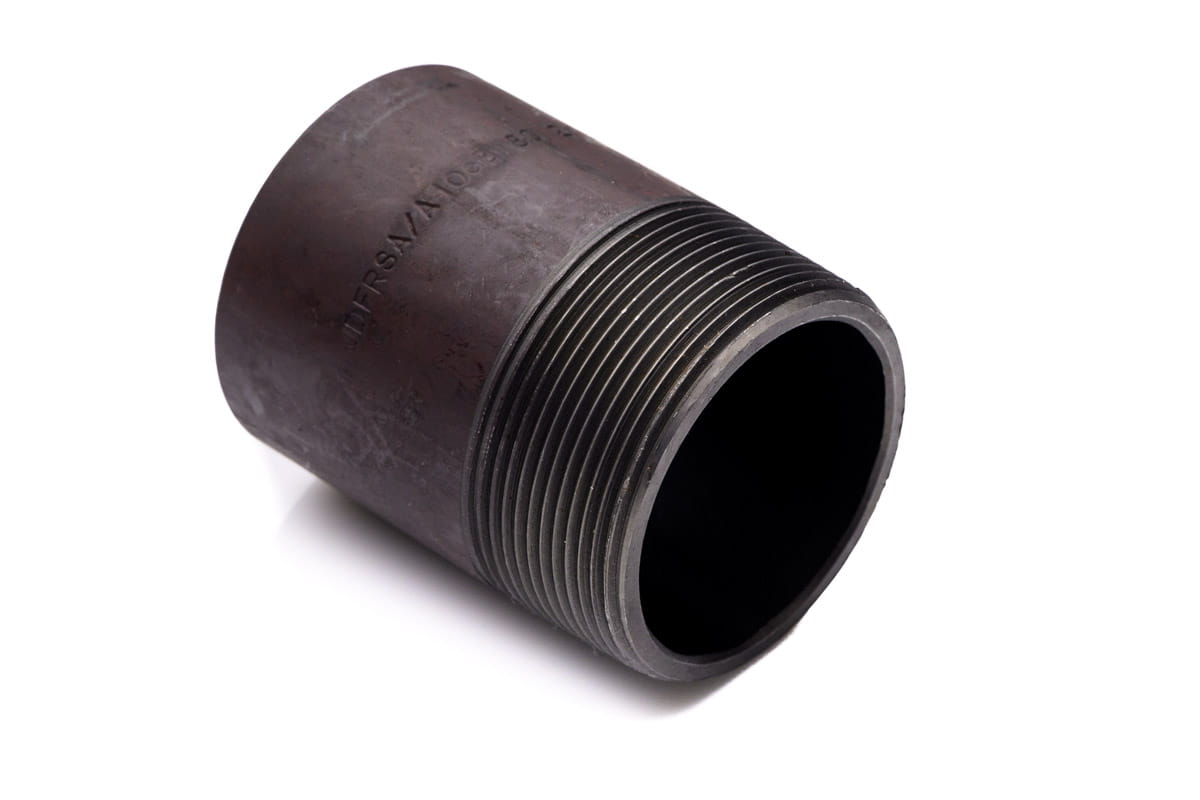

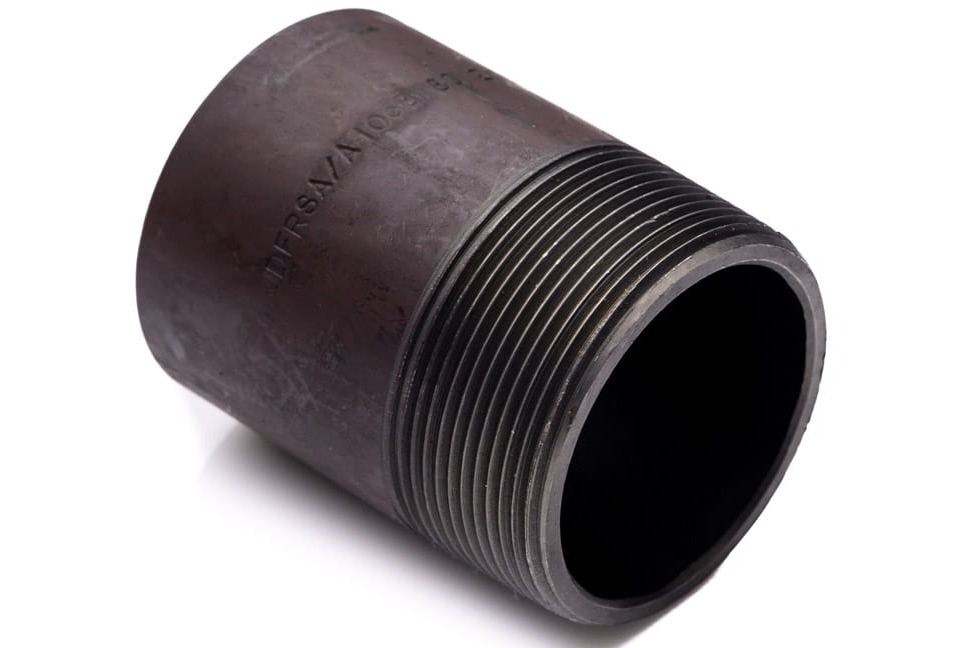

Pipe nipple 2'' NPT 75mm A106
Regular price:
Regular price:
product unavailable
add to wish list
Description
Pipe nipple 2'' NPT 75mm A106
- thread size: 2''
- thread type: NPT (tapered)
- length: 75mm
- material: A106 ( P265GH K18 ST.45.8 1.0405)
- single threaded
- carbon steel for welding
- SCH80
- application: high pressure industrial installations
- according to ASME B36.10-L.E, ASME B1.20.1-2013 SP25-2018 ASME/15 - ASTM/15 SA/A106 GrB Sect II Part A
- certificate 3.1 at the request of the customer (free of charge)
- origin: European Union
Other name: Pipe nipple 2'' NPT 75mm A106:, stiff nipple single threaded pipe threaded tube stub pipe nipple A106 SCH40 NPT (US conical) carbon steel for welding
Information
Carbon steel (CS) or unalloyed steel, is a material formed from a combination of carbon and iron. Significantly important is also the content of other elements such as boron or copper, which does not exceed the limits and is regulated by PN-EN 10020:2003.
Undeniably, it is a very popular steel used in large structures (bridges), elements of precision mechanics and, above all, in many items of everyday use.
It is noteworthy that carbon steel is easy to machine, weld, is not expensive and at the same time reliable.
Steel grade A106 - primarily a grade used for seamless pipes (also known as ASME SA106). Commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, ships, due to the fact that pipelines must transport fluids and gases with higher temperatures and high pressures.
Pipe nipple 2'' NPT 75mm A106 is made of steel, which is suitable for bending, bending and similar forming operations.
Since the tapered thread is formed by a helical cut on the outer or inner tapered surface, a tight connection is ensured without the need for additional sealing.
How to measure the thread? click here>>
Other dimensions are also available, and we offer nipples/spigots:
- straight; reducing
- double-threaded; single-threaded
- material: carbon steel, stainless steel
- coating: uncoated; galvanized, hot-dip galvanized, weldable
- thread type: metric "M" - inch "G" - BSP - BSPP - BSPT - NPT - UN - UNF - JIC - Rc - Rp - straight - tapered
- shape: hexagonal; round
- with certificate 3.1, with PZH certificate
- non-standard - according to customer's drawing
More information about fittings and nipples you may find here>>
Our offer includes also nipples in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us for an offer. Please free feel to contact us for any information.
