Ball valve 1'' NPT 1000WOG carbon steel
Regular price:
Regular price:
product unavailable
add to wish list
Description

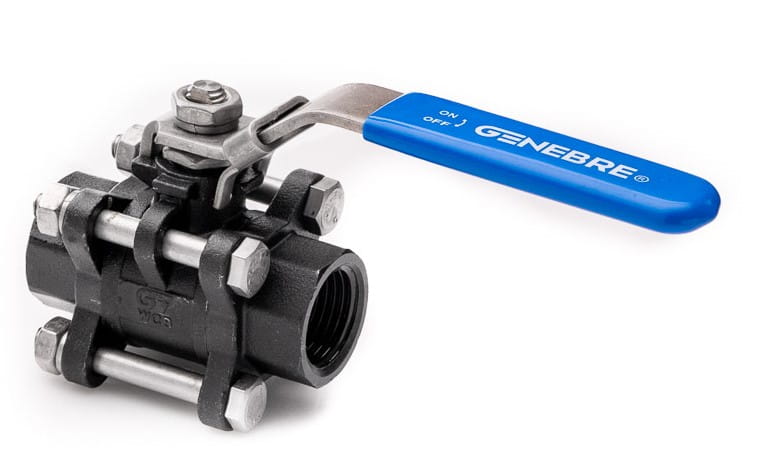

Ball valve 1'' NPT 1000WOG carbon steel
- size: 1''
- material: carbon steel
- medium: WOG i.e. water oil gas
- thread: NPT
- pressure: 63 bar
- max. working pressure: 1000 p.s.i.
- operation: lever
- handle color: blue
- operating temperature –25 ºC + 180 ºC.
- seat/seal: PTFE
- ball/pin: 316 stainless steel
- lever with locking system
- solid workmanship
- quality control carried out strictly in accordance with applicable standards
- application: in industry, agriculture, household
- s
Other name: F-F Threaded Equal Port Ball Valve Blue Handle Ball Valve 1" Carbon Steel Threaded NPT 1000 WOG CS Ball valve 1'' NPT 63bar carbon steel
The operating pressure of a ball valve depends on the valve's operating temperature. They should be read from the chart below, i.e.:
At an operating temperature of -20ºC, the valve will withstand a pressure of 1000 p.s.i. i.e. 69bar
At an operating temperature of +40ºC, the valve will withstand a pressure of 1000 p.s.i. i.e. 69 bar
At an operating temperature of +100ºC, the valve will withstand a pressure of 600 p.s.i. i.e. 41.4 bar
At an operating temperature of +150ºC, the valve will withstand a pressure of 350 p.s.i. i.e. 24.13 bar
This ball valve model is suitable for installations with high requirements. Withstands a wide range of temperatures. The PTFE Teflon seal allows safe flow of most media.
More information about ball valves you may find here >>
Our offer includes also ball valves in other sizes. If you have any questions contact us. Call 0048 632614202 or send an inquiry to email: biuro@polberis.pl
If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us, we will send you proforma without TAX. Please free feel to contact us for any information.
