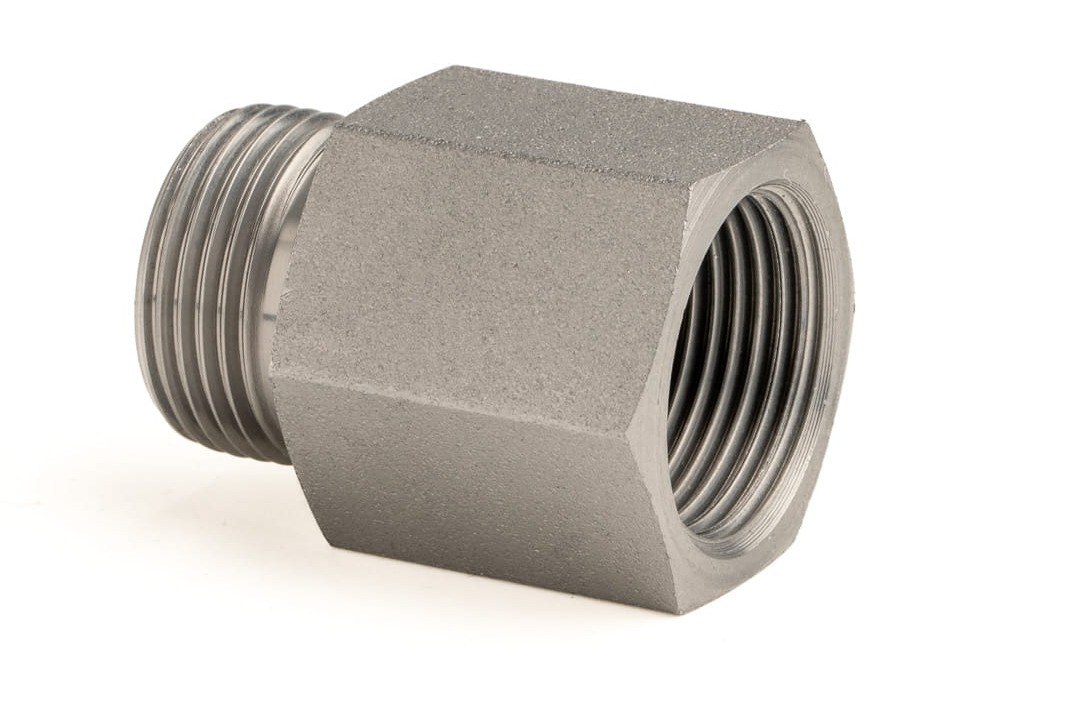

Hydraulic Adapter M22×1.5 Male × Female CEL15

• Thread size: M22×1.5
• Material: Steel
• Male and female metric thread: M22×1.5
• Suitable for 15 mm tube (CEL15)
• 24° internal cone
• Working pressure: 315 bar
• High-pressure hydraulic fitting
• Precision machined
• Zinc-plated finish
• Manufactured according to: DIN 2353, ISO 8434-1
• Applications: industry, agricultural machinery, construction equipment, lifting and transport machinery

Alternative Name: Hydraulic Adapter M22×1.5 Male × Female CEL15, straight hydraulic adapter, male × female reducer, threaded hydraulic fitting, reduction nipple, high-pressure adapter.

Information

Hydraulic Adapter M22×1.5 Male × Female CEL15 belongs to the family of high-pressure hydraulic threaded fittings. It is designed for hydraulic systems operating under high pressure and provides a reliable connection between components with M22×1.5 metric threads.

The fitting features an internal 24° cone, which creates an additional metal-to-metal seal when connected with compatible hydraulic fittings, improving leak tightness and connection reliability.

Technical Features

• Metric male × female thread: M22×1.5
• 24° internal sealing cone
• Suitable for 15 mm hydraulic tube (CEL15)
• Maximum working pressure: 315 bar
• Precision machined
• Zinc-plated steel for corrosion protection

Applications

• Hydraulic systems
• Industrial machinery
• Agricultural equipment
• Construction machinery
• Lifting equipment
• Material handling systems

Available options

• Straight and reducing adapters
• Male × male and male × female fittings
• Carbon steel and stainless steel
• Plain, zinc-plated, hot-dip galvanized, and weld-ready versions
• Metric, BSP, BSPP, BSPT, NPT, UN, UNF, JIC, Rc and Rp threads
• Hexagonal and round bodies
• Available with 3.1 material certificate and PZH certificate
• Custom-made according to customer drawings

We also offer hydraulic adapters in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl.

Hydraulic Adapter M22×1.5 Male × Female CEL15 is also available in other sizes from our product range.
