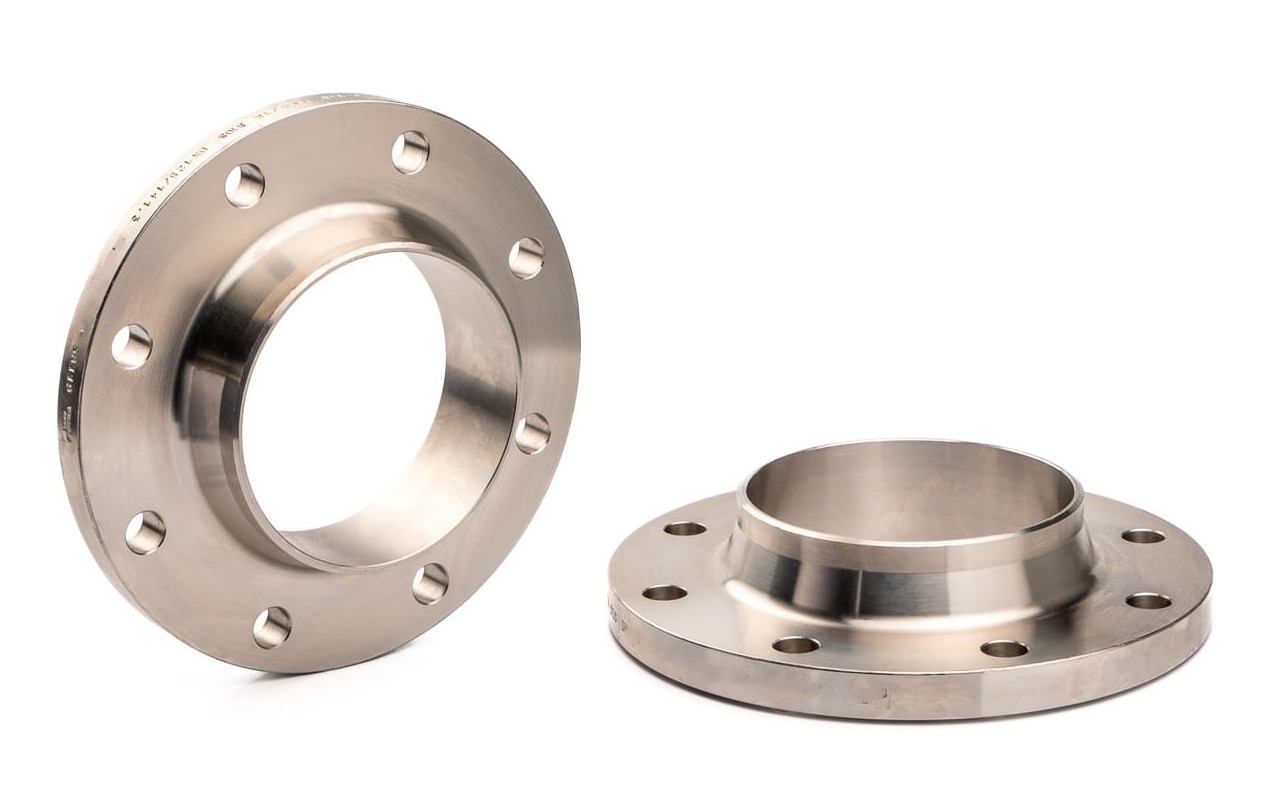

Weld Neck Flange DN100 PN40 304L Type 11B1

Kołnierz szyjkowy DN100 PN40 304L 11B1 .jpg

Availability: last items

Dispatched within: 24 hours

Gross price: €86.25

incl. 23% TAX, excl. shipping costs

Regular price:

86.25

Net price: €70.13

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12856N

Description

Weld Neck Flange DN100 PN40 304L Type 11B1

Size: DN100 (114.3 mm)
Pressure rating: PN40
Material: 304L stainless steel
Wall thickness: 3.6 mm
Flange type: 11B1
Manufactured according to: EN 1092-1 Type 11
Stainless steel weld neck flange
Suitable for welding

Kołnierz DN100 PN40 304l 11b1

Alternative Name: Weld Neck Flange DN100 PN40 304L Type 11B1, stainless steel weld neck flange, EN 1092-1 Type 11 flange, A/SA182 304L flange, inox welding flange, pipe flange.

Information

Weld Neck Flange DN100 PN40 304L Type 11B1 is designed for butt welding and is used to connect pipes, valves, pumps, pressure vessels, and industrial equipment. The tapered neck provides excellent strength and smooth stress distribution, making it suitable for pressure piping systems.

304L Stainless Steel

304L stainless steel is the standard corrosion-resistant stainless steel grade. It is one of the most versatile and widely used stainless steels, offering excellent corrosion resistance together with outstanding forming and welding properties.

Equivalent grades: 1.4301, 1.4306, 1.4307, AISI 304L.

Applications

Heat exchangers
Pharmaceutical equipment
Dairy processing equipment
Brewing industry
Marine fittings
Coastal structures
Food processing industry

We also offer weld neck flanges and stainless steel rings in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl.

Weld Neck Flange DN100 PN40 304L Type 11B1 is also available in other sizes from our product range.

Learn more about flanges here >>

Technical data

Manufacturing Standard	EN & DIN Standards
Flange Type	Welding Neck (WN)
Steel Grade	304 ~ 304L ~ 1.4307
Material	Stainless Steel
Size	DN100 ~ 4'' ~ 108mm ~ 114,3mm
