THREADOLET 3/4"x6''-12'' BSP 304L cl.3000

THREADOLET 3/4"x6''-12'' BSP 304L kl.3000

Availability: on sale

Dispatched within: 14 days

Gross price: €75.13

incl. 23% TAX, excl. shipping costs

Regular price:

75.13

Net price: €61.08

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12884M

Description

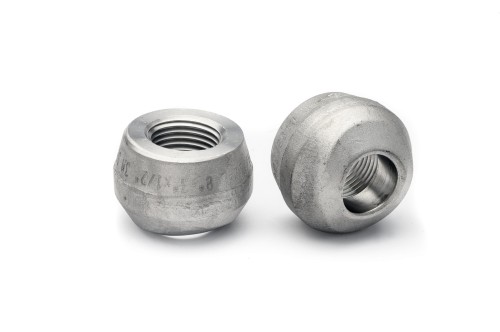

THREADOLET 3/4"x6''-12'' BSP 304L cl.3000

size: 3/4"x6''-12''
connection with thread size 3/4'' BSP - for welding on pipe 6''-12'' (168,3mm-323,90mm)
thread: BSP (standard polish, a.k.a BSPP, straight cylindrical, tubular, G, Rp)
type: 304L
pressure class: 3000lbs (206bar)
steel good fro welding
dimensions acc to. MSS SP 97
application: high-pressure industrial installations, high-temperature installations, pressure vessels, central heating installations.
certificate 3.1 on request (free of charge)

threadolet bsp

B = standard thread 3/4''

A = pipe 6''-12'' (168,3mm-323,90mm)

Other name: THREADOLET 3/4"x6''-12'' BSP 304L cl.3000 threadolet weld shaper tredolet screwbranches BSP internal threads 304L connector for welding olet

Information

THREADOLET 3/4"x6''-12'' BSP 304L cl.3000 belongs to the group of steel taps ( Olet ) type: veldolet, thredolet, sockolet, boss, couplet, latrolet is an alternative way of connecting pipes. Olets are pre-shaped to the curvature of the lead pipe so that they can be easily welded to the pipe and make a branch. They provide good flow and optimal stress distribution. Taps are typically used in high-pressure and high-temperature applications.

Other options available:

pressure class: 3000lbs, 6000lbs
material: carbon steel SA 105, for low temperatures (down to -50 degrees). A350 LF2 CL.1
material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / 316 / SA A182 / F316L / F321 / F347
threaded socket weld (SW)
3.1 certified goods

Grade 304 / 304L - is a standard stainless steel (SS 304L). The most versatile and widely used stainless steel, available in a wide range of products, undoubtedly has excellent forming and welding properties.

Application: in corrosive conditions, chemical industry, food industry, architecture, automotive

Other name: 1.4301 1.4306 1.4307 AISI304L

More information about threadolets and olets you may find here >>

Our offer includes also threadolets in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Branch Fitting Type	Threadolet
Material	Stainless Steel
Size	3/4''
Connection Type	BSP / G / BSPT / Rp / Rc Thread
