Hex Nipple 3/4" BSP A105 Class 3000
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Hex-Nipple-34-BSP-A105-Class-3000/13217&media=//sklep.polberis.pl/userdata/public/gfx/25216/Nypel-34-BSP-6-katny-klasa-3000-A105.jpg&description=Hex Nipple 3/4" BSP A105 Class 3000 "Pin It")
Description
Hex Nipple 3/4" BSP A105 Class 3000
- size: 3/4" (DN20)
- male threads
- material: A105 (carbon steel for high-temperature and high-pressure applications, equivalent to P245GH, P265GH, P285GH)
- thread type: BSP (British Standard Pipe)
- pressure class: 3000 lbs (206 bar)
- steel suitable for welding
- 3.1 certificate available on request (free of charge)
- application: pressure systems, boilers, ships, heavy industry

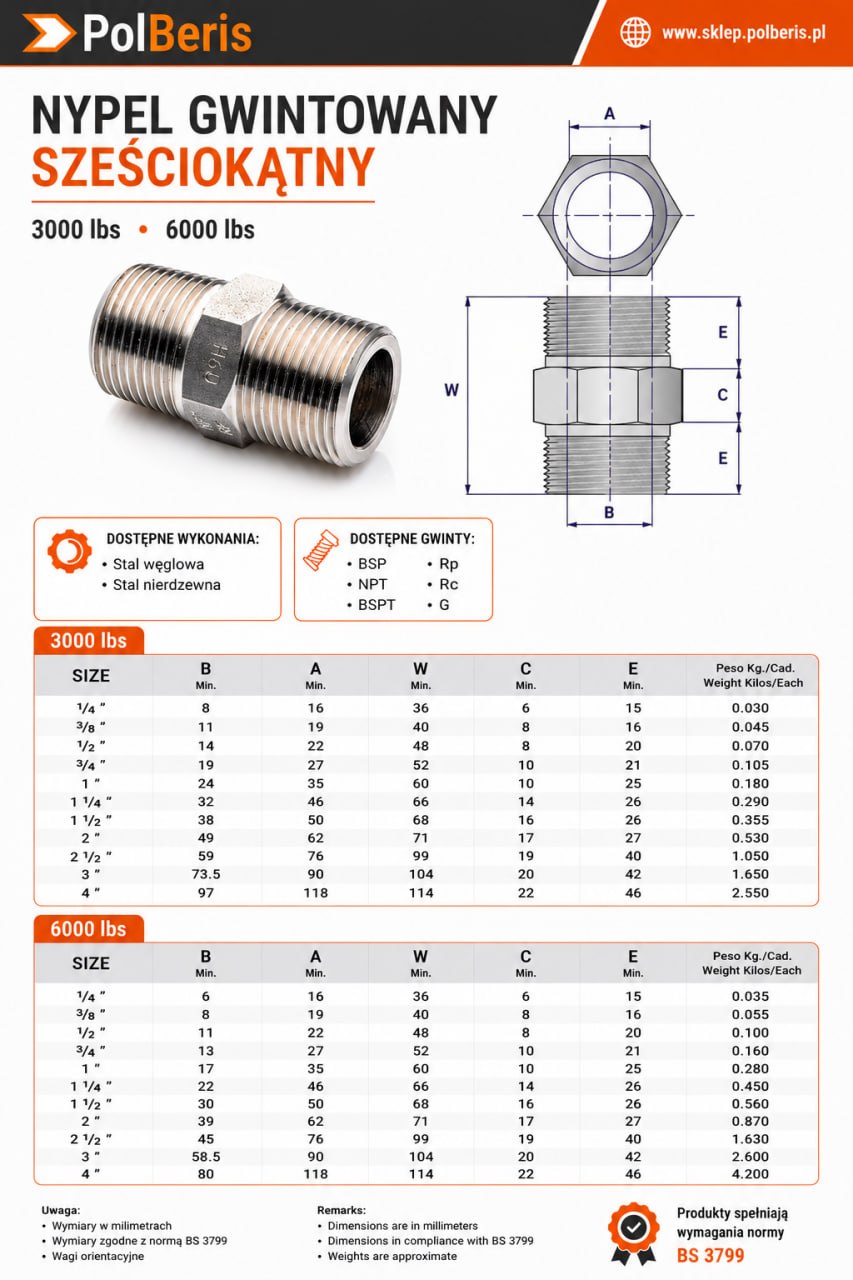

dimension B = 19mm
dimension A = 27mm
dimension W = 52mm
dimension C = 10mm
dimension E = 21mm
Alternative Name: Hex Nipple 3/4" BSP A105 Class 3000 High Pressure Steel Adapter High Temperature Boiler Steel P245GH P265GH P285GH Hexagonal Nipple
Information
Hex Nipple 3/4" BSP A105 Class 3000 belongs to the family of high-pressure threaded fittings. Hex nipples are available in all standard inch sizes. They are designed to withstand high operating pressures while ensuring safe and reliable installations.
A105 is a carbon steel commonly used for piping components, flanges and fittings. This carbon steel grade is intended for pressure systems operating at ambient and elevated temperatures. It offers good machinability and excellent weldability.
Applications: oil and gas transmission, petrochemical plants, power stations, pressure vessels and similar industrial installations.
Similar material grades: 1.0460, C22.8, P245GH, P265GH, P285GH, S235JR.
Our offer includes also nipples and fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl
More information about fittings and nipples you may find here>>
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.p
