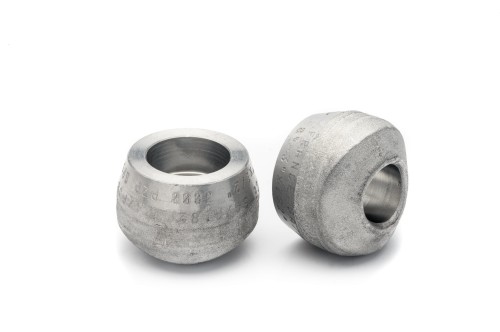

Sockolet SW 1 1/2''x 5''-6'' 304L cl. 3000

Sockolet SW 1 1/2''x5''-6'' 304L cl. 3000

• size: 1 1/2''x5''-6''
• sockolet allows to join pipe 1 1/2'' (48,3mm) with pipe 5''-6'' (139,70mm-168,30mm)
• grade: 304L stainless steel
• weldable steel
• tube socket weld: SW socket weld
• pressure class: 3000lbs (i.e. 206bar)
• dimensions according to MSS SP 97
• sockets application: high-pressure, high-temperature industrial installations
• 3.1 certificate on request (free of charge)

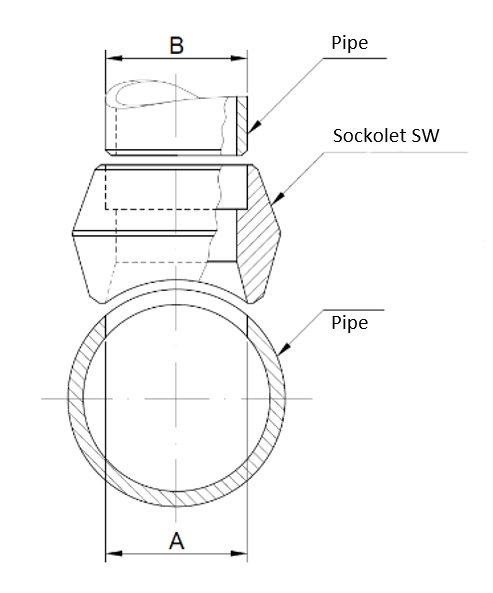

B = pipe entry 1 1/2'' (48,3mm)

A = pipe entry 5''-6'' (139,70mm-168,30mm)

Other name: Sockolet SW  1 1/2''x5''-6'' 304L cl. 3000 SW stainless steel 1.4404 socket weld SW branch for welding and joining pipes inox acid resistant acid resistant acid resistant steel

Information

Sockolet SW 1 1/2''x5''-6'' 304L cl. 3000 - steel tapping SW-OUTLET belongs to the group of "high-pressure fittings", where the pipe is welded in a groove (pocket). The pocket is welded to the pipe to form an airtight installation structure. The Socket Weld (SW) system guarantees the safety, durability and inseparability of the installation. With SW fittings, we can easily select the installation pressure. Each fitting is stamped with size, grade, melt and pressure class. All SW fittings are certified 3.1.

Available options:

• material: carbon steel SA 105 / carbon steel for low temperatures (up to -50 stop). A350 LF2 CL.1
• material: stainless steel 304 / SA A182 / F304/L / TP304 / TP304L / A312 / 316 / SA A182 / F316L / F321 / F347
  threaded, socket weld (SW)
• 3.1 certified goods
• Available sizes: 1/8'' - ¼'' - 3/8'' - ½'' - ¾'' - 1'' - 1 ¼'' - 1 ½'' - 2'' - 2 ½'' - 3'' - 4''

Application: refineries, metallurgy, marine industry, high pressure installations, high requirements installations, for high temperature A105, for low temperature LF2, boilers, pressure vessels, hydraulic installations, outdoor installations, oil and gas industry.

Marking: sockolet has stamped size, pressure class, grade, melt number and not always thread type. Markings are made in accordance with applicable standards.

More information about Sockolet and olets you may find here >>
