Tee 1 1/2'' socket weld 304L cl.3000
Regular price:
Regular price:
product unavailable
add to wish list
Description

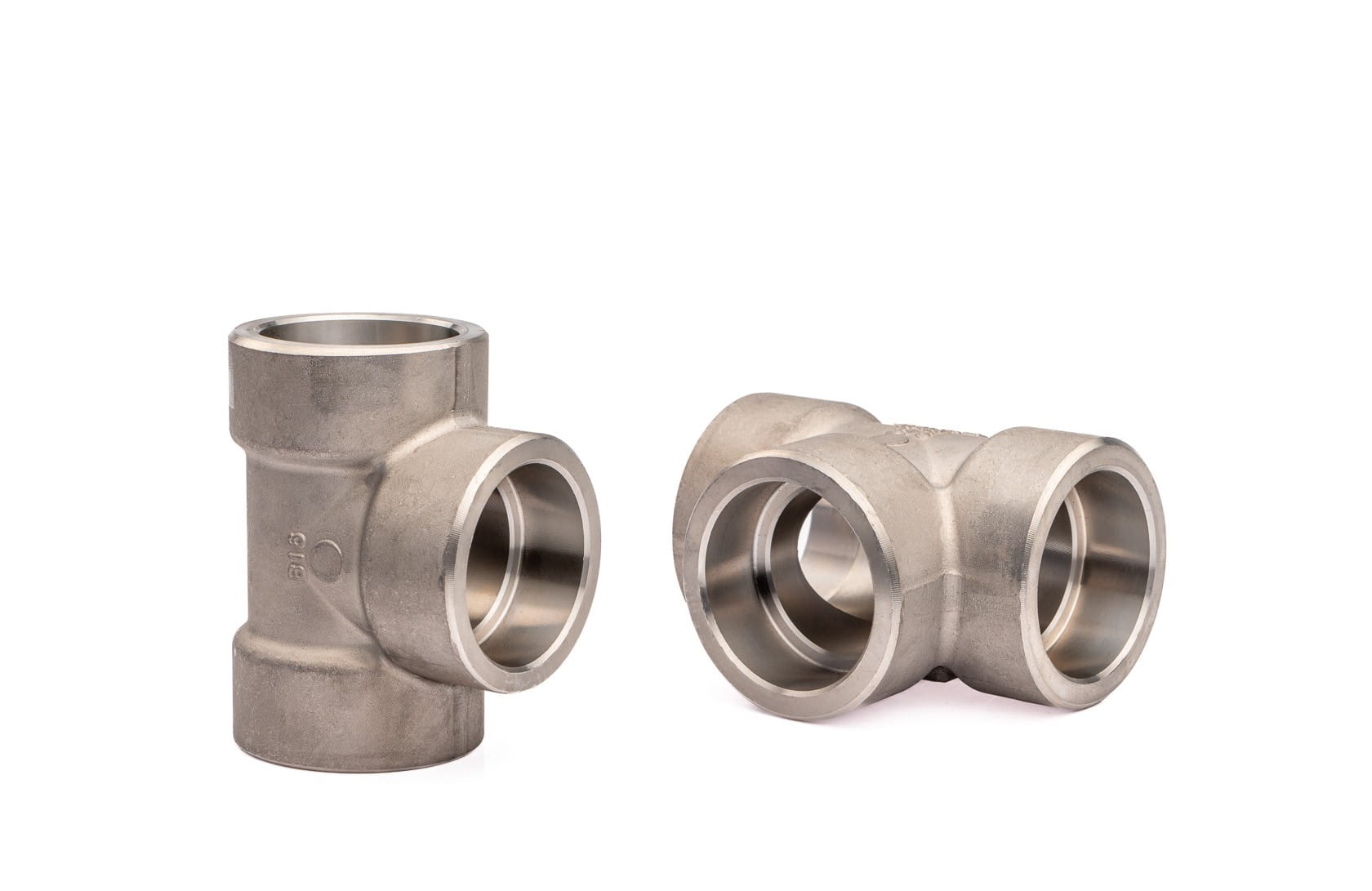

Tee 1 1/2'' socket weld 304L cl.3000
- size: 1 1/2''
- fits for pipe 1.1/2'' - 48,3mm DN40
- material: stainless steel 304 (1.4301)
- pressure class: 3000lbs (206bar)
- high-pressure tee
- made according to ANSI B16.11
- well weldable steel
- applications: industry, metallurgy, refineries, boilers, tanks, ships, marine industry, machinery, installations with high requirements
- properties: for high pressure, for high temperature
- 3.1 attestation on request (free of charge)
- origin: European Union
B = 1" (33,9-34,3mm)
Other name: Tee 1 1/2" socket weld 304L cl.3000 SW socket weld tee slip-on with keyway thick wall tee reduction tee stainless steel 206bar ANSI B16.11 fitting
Information
Tee 1 1/2'' socket weld 304L cl.3000 belongs to the group of Socket Weld SW where the pipe is welded in the socket (inlet). Socket welded with a pipe form tight structure of the system. Socket Weld (SW) system ensures safety, durability and resistance to rupture of the system. Such welding is well praised by the welders. During welding, the pipe is inserted into the socket and does not move what ensures better freedom. The weld resists bigger pressures. SW fittings allow easy selection of the pressure of the system. Each fitting is stamped with size, grade, melt and pressure rating. All SW fittings have 3.1 certificates.
Advantages: pipe does not require bevelling for welding. Socket Weld fittings do not require special preparations, they are an alternative for threaded union pieces.
Other sizes available: 1/8’’ – ¼’’ - 3/8’’ - ½’’- ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ – 3 ½’’ - 4’’
Steel grade 304/304L – it is standard stainless steel (SS 304L). The most versatile and most often used, available in a wide range of products. Has excellent forming and welding properties.
Application: corrosive conditions, chemical industry, food industry, architecture, automotive industry
Other name: 1.4301 1.4306 1.4307 AISI304L
More information about socket weld fittings you will find here>>
Our offer includes a wide range socket weld high-pressure fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
