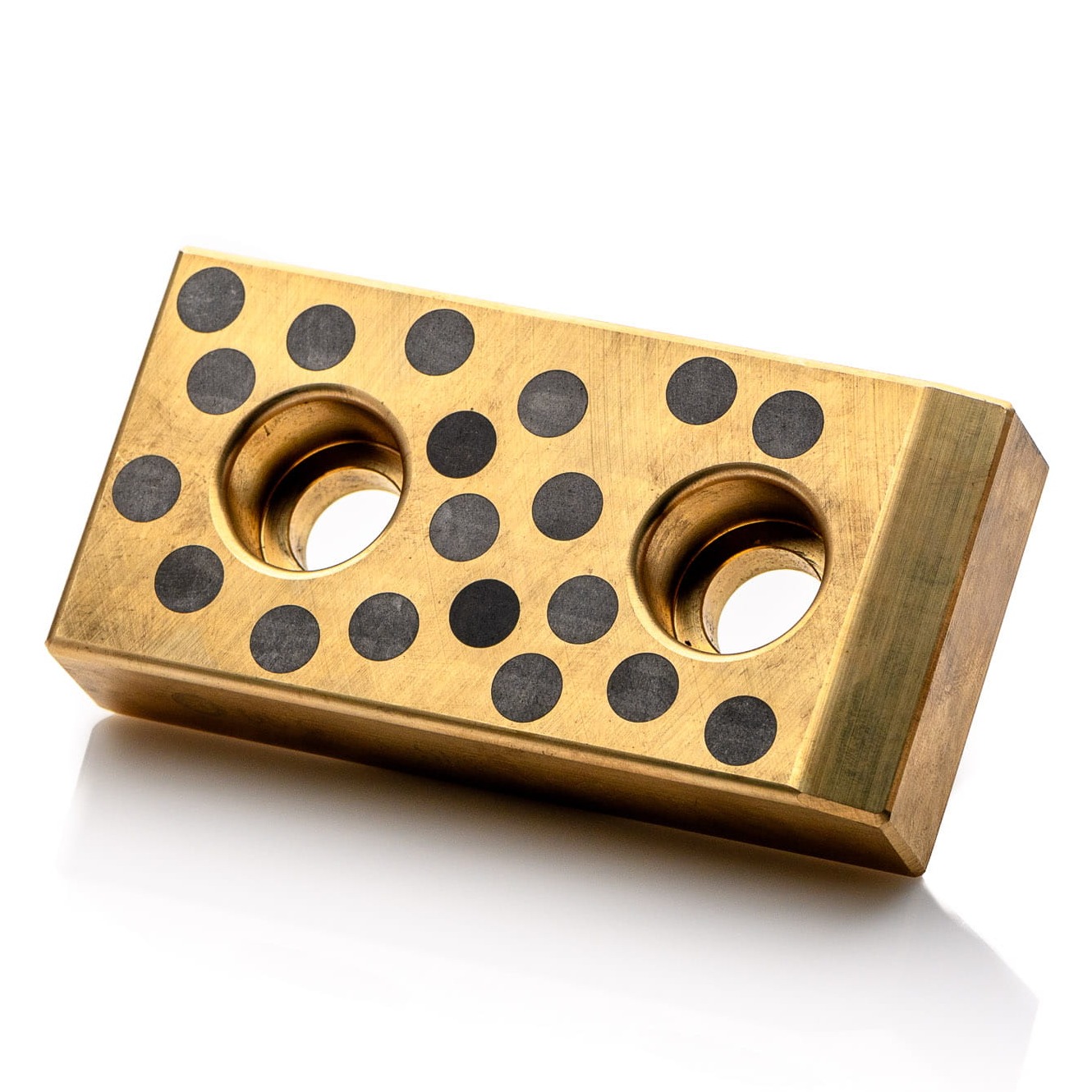

Sliding Plate VDI-13-SP2 Bronze with Graphite

Płytka prowadząca VDI-13-SP2 brąz z grafitem 39 D 86313 NA13 SANKYO bezobsługowa samosmarna.jpg

Availability: on sale

Dispatched within: 24 hours

Gross price: €47.39

incl. 23% TAX, excl. shipping costs

Regular price:

47.39

Net price: €38.53

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 9914

Description

Sliding Plate VDI-13-SP2 Bronze with Graphite

Part number: 39D 863/13
Dimensions: 50 × 100 × 20 mm
Guide sliding plate
Material: bronze with graphite inserts
Maintenance-free sliding plate requiring no lubrication

Information

Sliding Plate VDI-13-SP2 Bronze with Graphite is manufactured from high-strength bronze with specially positioned solid graphite lubricant inserts. The graphite is arranged to match the direction of movement. The bronze carries the load, while the graphite provides continuous lubrication throughout the service life of the bearing.

The graphite inserts create a thin lubricating film on the bronze sliding surface during operation. Proper clearance between the sliding surfaces is essential to ensure effective lubrication and optimum performance.

Maximum recommended operating temperature: 300°C (the bearings are manufactured at approximately 1000°C).
At operating temperatures above 100°C, additional clearance should be provided to compensate for thermal expansion.

Maintenance

Maintenance generally consists of inspecting wear every 6 months to 2 years, depending on operating conditions and load. Re-lubrication after disassembly is recommended. Do not remove the existing solid lubricant layer. Continuous grease lubrication is not required, provided the bearing operates under the recommended conditions.

Machining

SANKYO bronze is easy to machine. Machining is similar to standard steel and requires no special tools, although sharp or new tools are recommended.

When using HSS or carbide tools, cooling lubricants are recommended.

Recommended cutting allowance: approx. 0.3 mm
Use a low feed rate and small cutting depth during rough machining.

We offer a wide range of guide bushings and sliding plates. If you are looking for another model or size that is not available in our store, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

Sliding Plate VDI-13-SP2 Bronze with Graphite is also available in other models and sizes from our product range.
