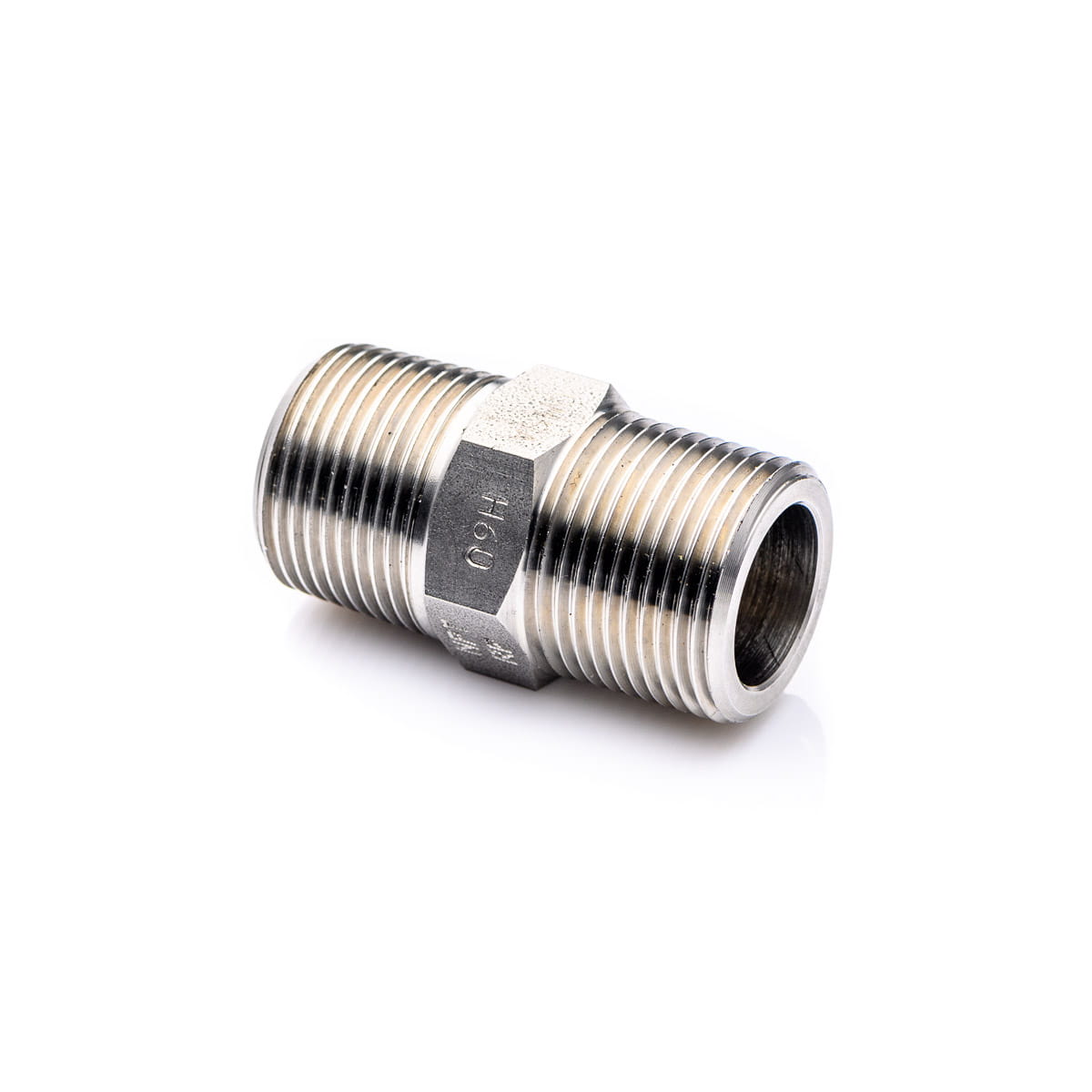

Nipple stainless steel 2'' BSP 316L kl. 3000

• Size: 2''
• Thread: BSP
• Material: Stainless steel 316L, 1.4404, SA182
• Pressure class: 3000 (206 bar)
• Certificates: 3.1 certificate available on request (free)
• Standard: ISO 228
• Applications: High-pressure installations, boilers, ships, heavy industry

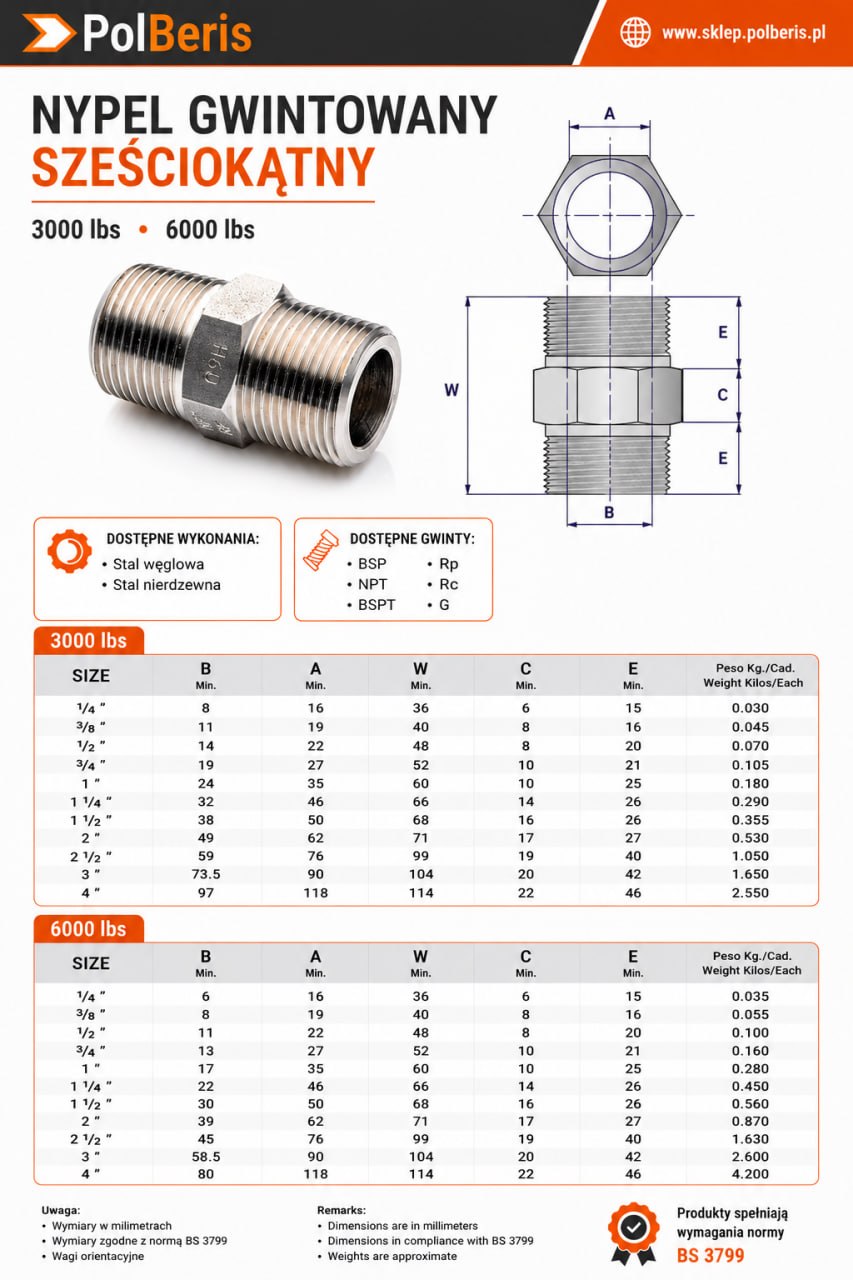

B = 49 mm

A = 62 mm

W = 71 mm

C = 17 mm

E = 27 mm

Also Known As: 2'' BSP 316L hex nipple, stainless steel nipple, corrosion-resistant, threaded fitting GZ MM, with 3.1 certificate

Product Information:

The 2'' BSP 316L stainless steel nipple is a high-pressure threaded fitting designed for various industrial systems. It is commonly used in pressure installations, boilers, heavy industry, and marine environments. Its external threads comply with BSP (British Standard Pipe) standards, ensuring compatibility with a wide range of piping systems. Its robust construction guarantees system integrity, especially in demanding environments where high pressure and temperature are factors. This fitting is designed to handle high-pressure systems easily, rated at Class 3000 (equivalent to 206 bar).

Steel Grade 316L: 316L stainless steel is highly corrosion-resistant, with excellent weldability and forming properties. Originally developed for the paper industry, it is highly resistant to sulfur compounds used in paper processing.

Applications: Heat exchangers, pharmaceutical equipment, dairy installations, breweries, marine fittings, coastal architecture, food industry.

Advantages of 316L: Non-magnetic, excellent ductility, high impact resistance, superb weldability, good strength, wide temperature range.

Available Sizes: 1/8’’ – ¼’’ – 3/8’’ – ½’’ – ¾’’ – 1’’ – 1 ¼’’ – 1 ½’’ – 2’’ – 2 ½’’ – 3’’ – 3 ½’’ – 4’’
