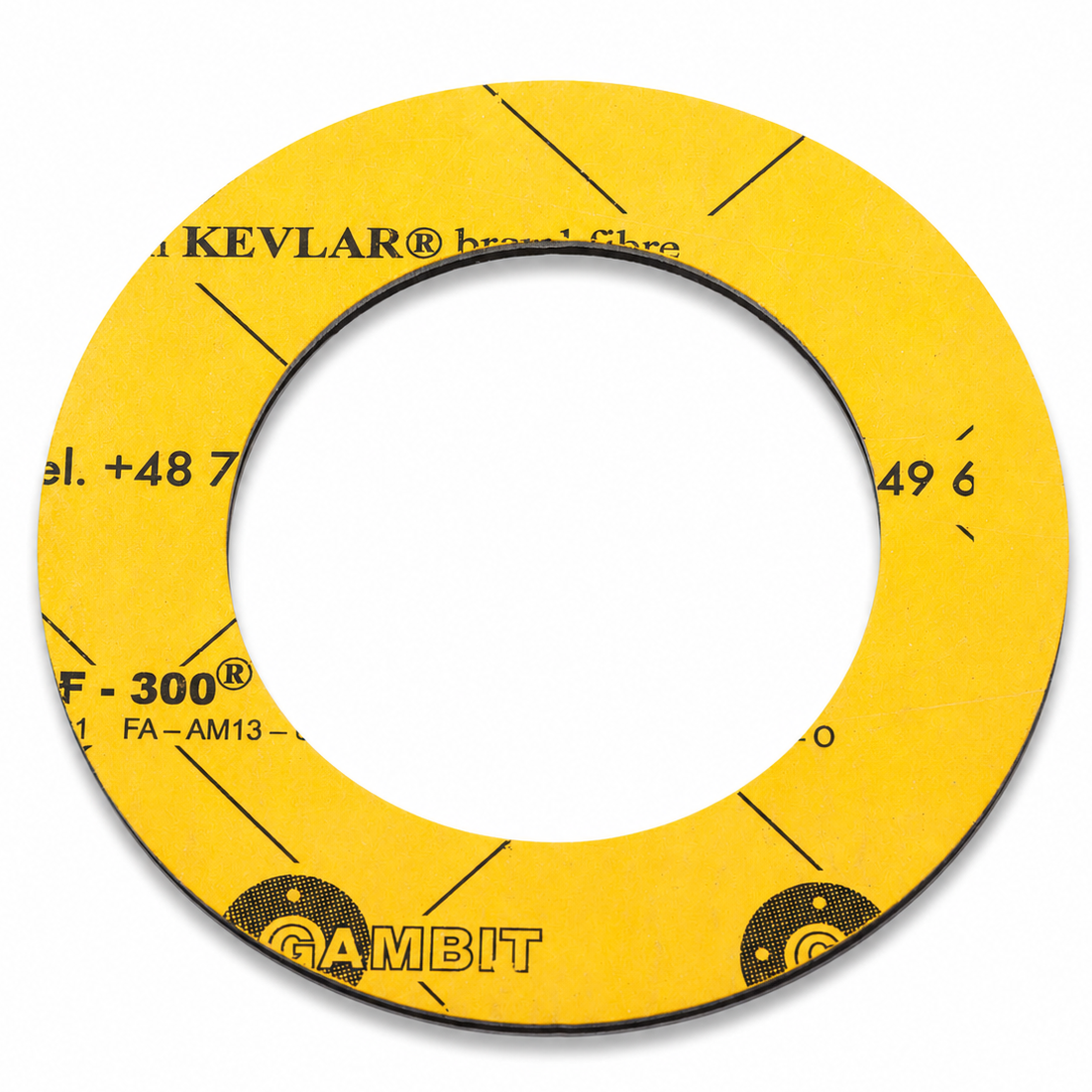

Gasket DN40 PN16 × 2 mm AF300

Gasket DN40 PN16 × 2 mm AF300.png

Availability: last items

Dispatched within: 24 hours

Gross price: €1.24

incl. 23% TAX, excl. shipping costs

Regular price:

1.24

Net price: €1.00

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 10741I

Description

Gasket DN40 PN16 × 2 mm AF300

Size: DN40
Pressure rating: PN16
Thickness: 2 mm
Material: GAMBIT AF-300 compressed fibre gasket sheet manufactured from aramid fibres, mineral fibres, and NBR, NR, and SBR rubber binders
Maximum intermittent temperature: 320°C
Maximum continuous temperature: 280°C
Maximum continuous temperature with steam: 220°C
Suitable media: water, steam, salt solutions, dilute acids and alkalis
Maximum working pressure: 10 MPa

Alternative Name: Gasket DN40 PN16 × 2 mm AF300, AF-300 gasket, yellow fibre gasket, compressed fibre flange gasket, flat industrial gasket.

Information

Gasket DN40 PN16 × 2 mm AF300 is manufactured from GAMBIT AF-300 compressed fibre sheet, designed to provide reliable sealing in industrial flange connections. The flexible material conforms to flange irregularities and surface imperfections, ensuring a durable, leak-tight seal.

AF-300 Properties

Maximum intermittent temperature: 320°C
Maximum continuous temperature: 280°C
Maximum continuous temperature with steam: 220°C
Maximum working pressure: 10 MPa
Flexible sealing material for flange joints

Applications

Recommended for:

Water installations
Steam systems
District heating
Power generation
Municipal utilities
Automotive applications
Brake fluid systems
Coolant systems

Suitable Media

Water
Steam
Salt solutions
Dilute acids
Dilute alkalis

Custom Manufacturing

Gaskets are manufactured to order according to customer requirements, including:

EN 1514-1
EN 12560-1
ASME B16.20
DIN 2690
Customer drawings
IBC flat gaskets
Custom dimensions and shapes

We also offer a wide range of industrial gaskets and O-rings. If you require a different material or size, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl. We will prepare a quotation for you.

Gasket DN40 PN16 × 2 mm AF300 is also available in other sizes from our product range.

Learn more about sealing products here >>

Technical data

Size	DN40 ~ 1 1/2''
