Coupling 1" Socket Weld NPT x SW A105 Class 3000

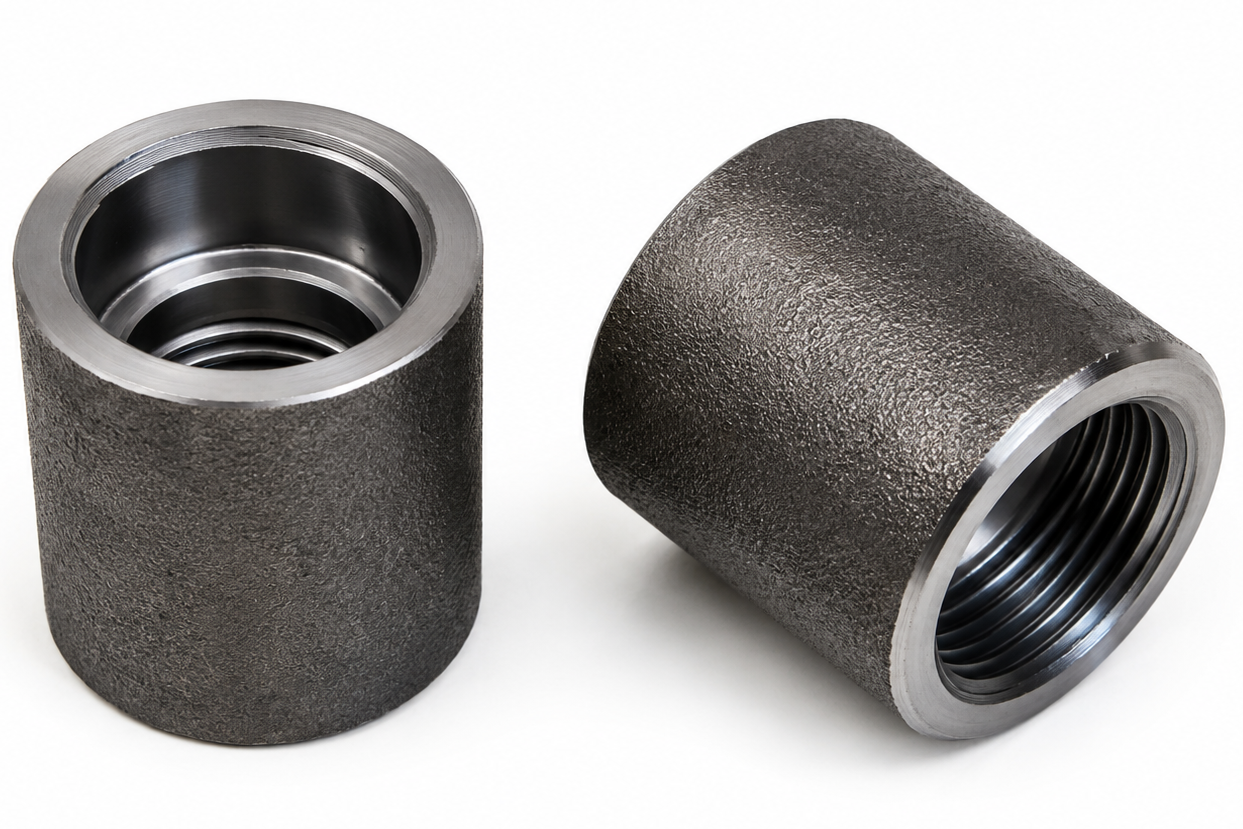

Mufa 12 socket weld NPT A105 kl.3000 SW.png

Availability: on sale

Dispatched within: 24 hours

Gross price: €9.85

incl. 23% TAX, excl. shipping costs

Regular price:

9.85

Net price: €8.00

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 8533C

Description

Coupling 1" Socket Weld NPT x SW A105 Class 3000 SW

size: 1"
thread type: NPT thread on one side and Socket Weld (SW) socket on the other side
pressure class: 3000lbs (206 bar)
material: A105 carbon steel
weldable steel
3.1 certificate available on request (free of charge)
application: industry, export machine manufacturing, hydraulic systems, high-demand installations, pressure systems, central heating systems
origin: European Union

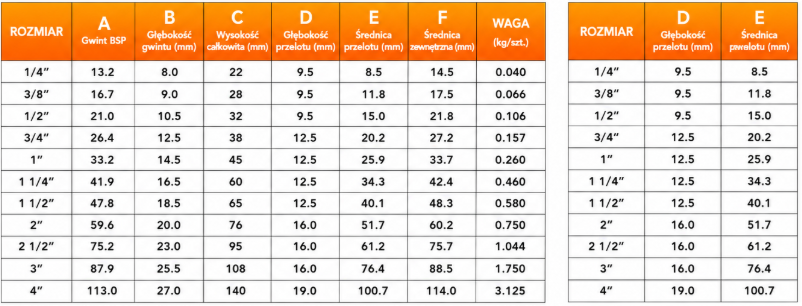

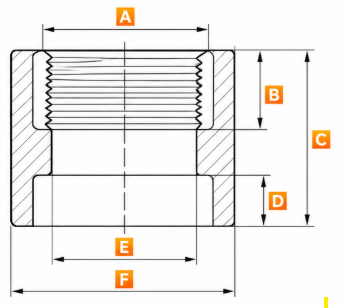

Rysunek mufa SW NPT Tabela z wymiarami SW NPT

Alternative Name: Coupling 1" Socket Weld NPT A105 Class 3000 SW high-pressure coupling socket weld coupling NPT coupling forged steel coupling A105 SW x NPT fitting 206 bar

Information about the Coupling

Coupling 1" Socket Weld NPT x SW A105 Class 3000 belongs to the group of threaded fittings known as high-pressure fittings. Couplings are available in all inch sizes. Each coupling is marked with size, material grade, heat number, and pressure class. It guarantees safety and durability of the installation. All threaded fittings are available with 3.1 certification.

Material Information

A105 steel is a carbon steel widely used for piping components, flanges, and fittings. This carbon steel grade is intended for operation at ambient and elevated temperatures, especially in pressure systems. It offers good machinability, as is typical for low-alloy steels. It is also a weldable steel.

Application: oil and gas transmission, petrochemical plants, power stations, pressure vessels, and similar industrial installations.

Similar Material Grades 1.0460, C22.8, P245GH, P265GH, P285GH, S235JR

Additional Information

material grade on certificate: A105 (P280GH, P245GH according to EN10222-2)
size, class, material grade, and heat number are marked on the coupling
PED 97/23/CE & PED 2014/68/EU certification
manufactured according to ASME/18 – ASTM/14 SA/A105 Sect II Part A
the thread is not machined through the entire coupling; this is not possible with NPT threads

More about couplings, you may find here>>

Our offer includes a wide range high-pressure couplings and fittings. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
