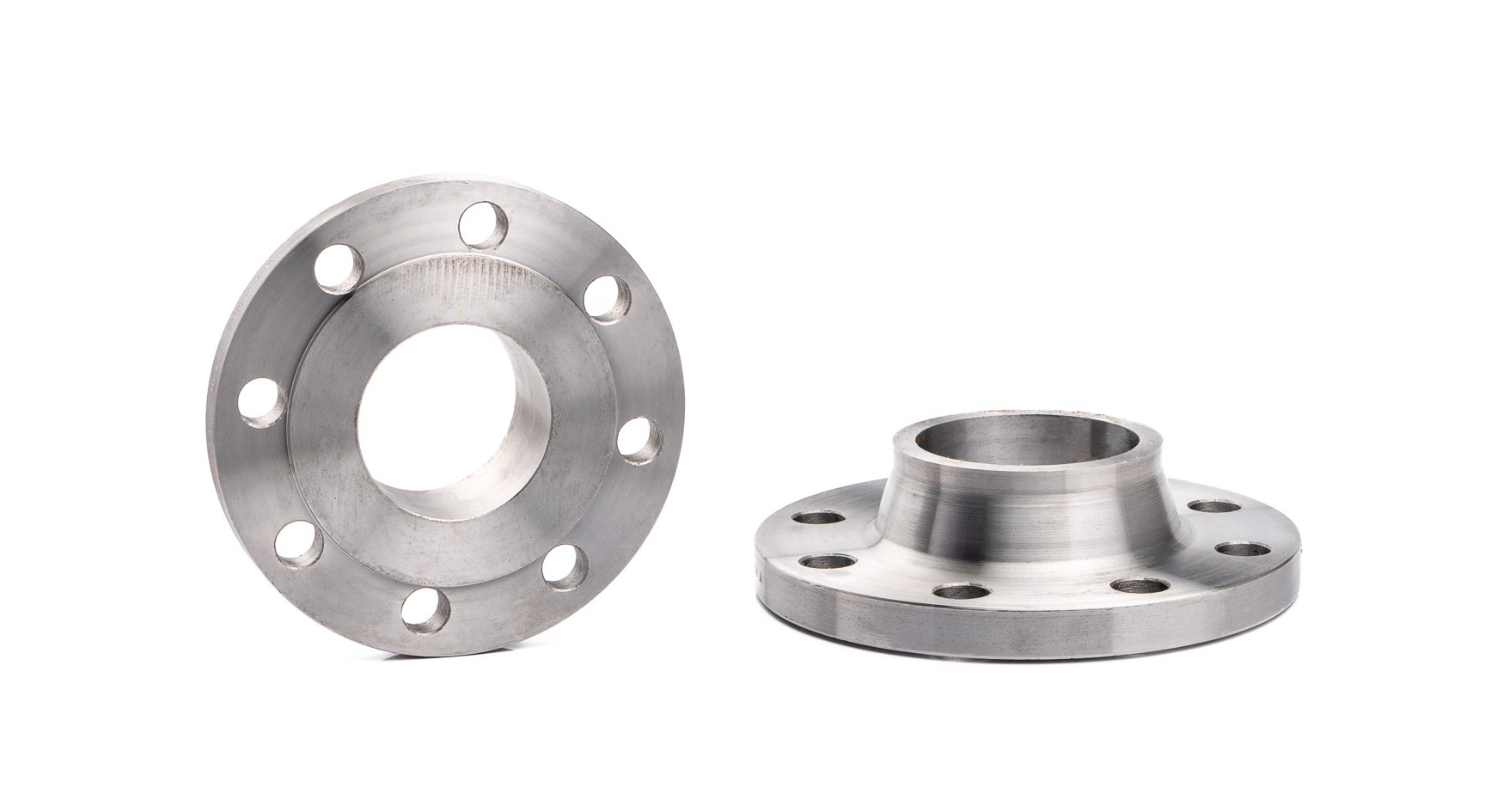

Neck flange 6'' 150lbs ASME B16.5 RF STD A105
Regular price:
Regular price:
product unavailable
add to wish list
Description
Neck flange 6'' 150lbs ASME B16.5 RF STD A105
- size: 6''
- pressure class: 150lbs
- adhesion: RF
- neck thickness: STD
- steel type: A105
- manufacture according to standard: B16.5
- steel flange for welding
- flange with 8 screw holes
- certificate 3.1 on request (free of charge)
- application: industrial installations
Inna nazwa: Neck flange 6'' 150lbs ASME B16.5 RF STD A105N for welding according to ANSI adhesion pressure for high pressure flange steel flange
What is the Purpose of a Steel Welding Flange?
A steel welding flange is used for connecting pipe sections and constructing continuous installations. The main applications of steel flanges are in the petrochemical industry, metallurgy, shipbuilding, installations on ships, boilers, pressure vessels, turbines, and various types of steel connections. The Neck Flange 6'' 150lbs ASME B16.5 RF STD A105 is very strong and can withstand a pressure of 150 lbs. It needs to be mounted using 8 bolts.
Properties of steel grade A105
Application: grade used for oil and gas transmission, petrochemicals, power plants, pressure vessels, etc.
Properties similar to grades: 1.0460 C22.8 P245GH P265GH P285GH S235JR
More about flanges and steel ring can be found here>>
We also offer flanges and steel rings in other dimensions. If you have any questions, contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
