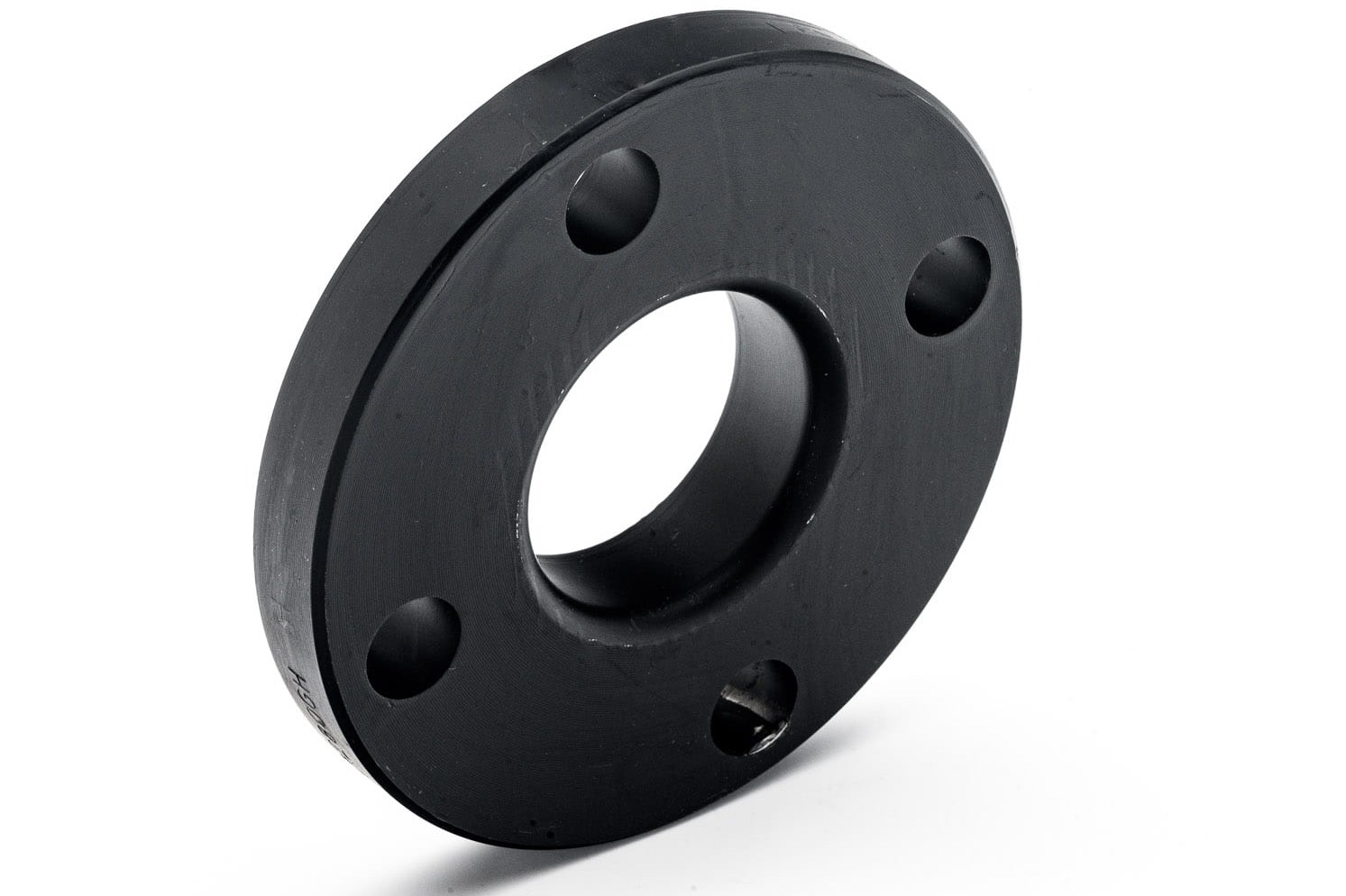

Lap Joint flange 3'' B16.5 A105 150lbs
Regular price:
Regular price:
product unavailable
add to wish list
Description
Lap Joint flange 3'' B16.5 A105 150lbs
- size: 3''
- pressure: 150lbs
- ASME B16.5
- flange type: Lap Joint
- material: A105
- number of bolt holes: 4
- flange with certification 3.1
- price for 1pcs
Other name: Lap Joint flange 3'' B16.5 A105 150lbs flange with flange LP flange steel flange steel pipe connector in connection with stubs
Lap Joint flange 3" Lap Joint B16.5 A105 150lbs
Information
Lap Joint flanges are used in conjunction with stub pipes. They are used in installations that require frequent cleaning and/or inspection.
Advantages of flanges:
- Free rotation around the pipe facilitates lining up opposite flange bolt holes.
- Lack of contact with the fluid in the pipe often allows the use of inexpensive carbon steel flanges with corrosion-resistant pipe.
- In installations that erode or corrode quickly, flanges can be stored for reuse.
Steel grade A105 - is a carbon steel undoubtedly often used in piping components, flanges and fittings. This grade of carbon steel is primarily used for ambient and higher temperatures, and to work in pressure installations. Good machinability, as with any low-alloy steel. Noteworthy is the fact that it is a weldable steel
More about flanges and steel ring can be found here>>
We also offer flanges and steel rings in other dimensions. If you have any questions, contact us. Call 63/2614202 or send an inquiry to e-mail: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
