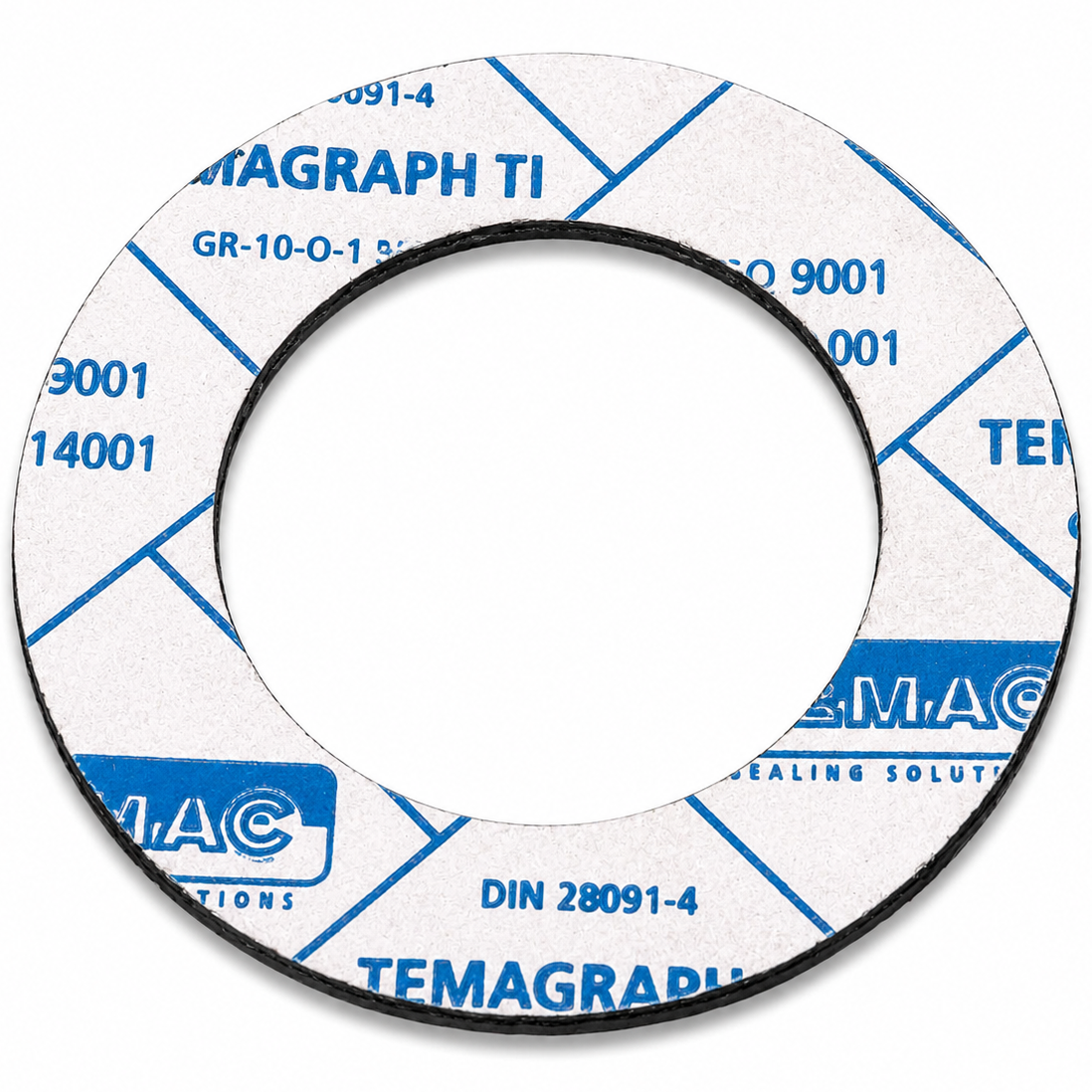

Graphite Gasket DN80 PN10–40 × 2 mm TEMAGRAPH Ti

• Size: DN80 (88.9 × 2 mm)
• Pressure rating: suitable for PN10, PN16, PN25, PN40
• Material: TEMAGRAPH Ti
• Manufactured according to: DIN 28091-4
• Operating temperature: -200°C to +450°C
• Flat IBC gasket without bolt holes
• Applications: industrial installations. Resistant to high operating pressures and temperature fluctuations. Commonly used in steam pipelines and the chemical and petrochemical industries.

Alternative Name: Graphite Gasket DN80 PN10–40 × 2 mm TEMAGRAPH Ti, graphite flange gasket, flat IBC gasket, flange sealing gasket, graphite gasket for steel flanges.

Information

Graphite Gasket DN80 PN10–40 × 2 mm TEMAGRAPH Ti is manufactured from TEMAGRAPH Ti graphite, offering excellent resistance to high operating pressures and temperature fluctuations. It is widely used in steam pipeline systems as well as in the chemical, petrochemical, and other demanding industrial sectors.

How to install the Graphite Gasket DN80 PN10–40 × 2 mm TEMAGRAPH Ti

• Check that the gasket is the correct size and material.
• Inspect the gasket for damage.
• Check that the flanges are not distorted.
• Clean the flange faces and fastening components (bolts, nuts, and washers).
• Align the flanges and bolt holes.
• Carefully insert and centre the gasket between the flanges.
• Do not use sealing compounds.
• Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you have any questions, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

Graphite Gasket DN80 PN10–40 × 2 mm TEMAGRAPH Ti is also available in other sizes from our product range.
