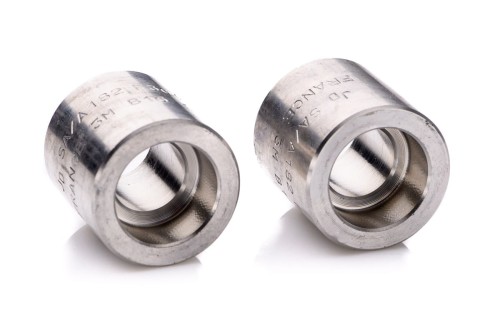

Coupling 3" socket weld 304L kl.3000

Size: 3''

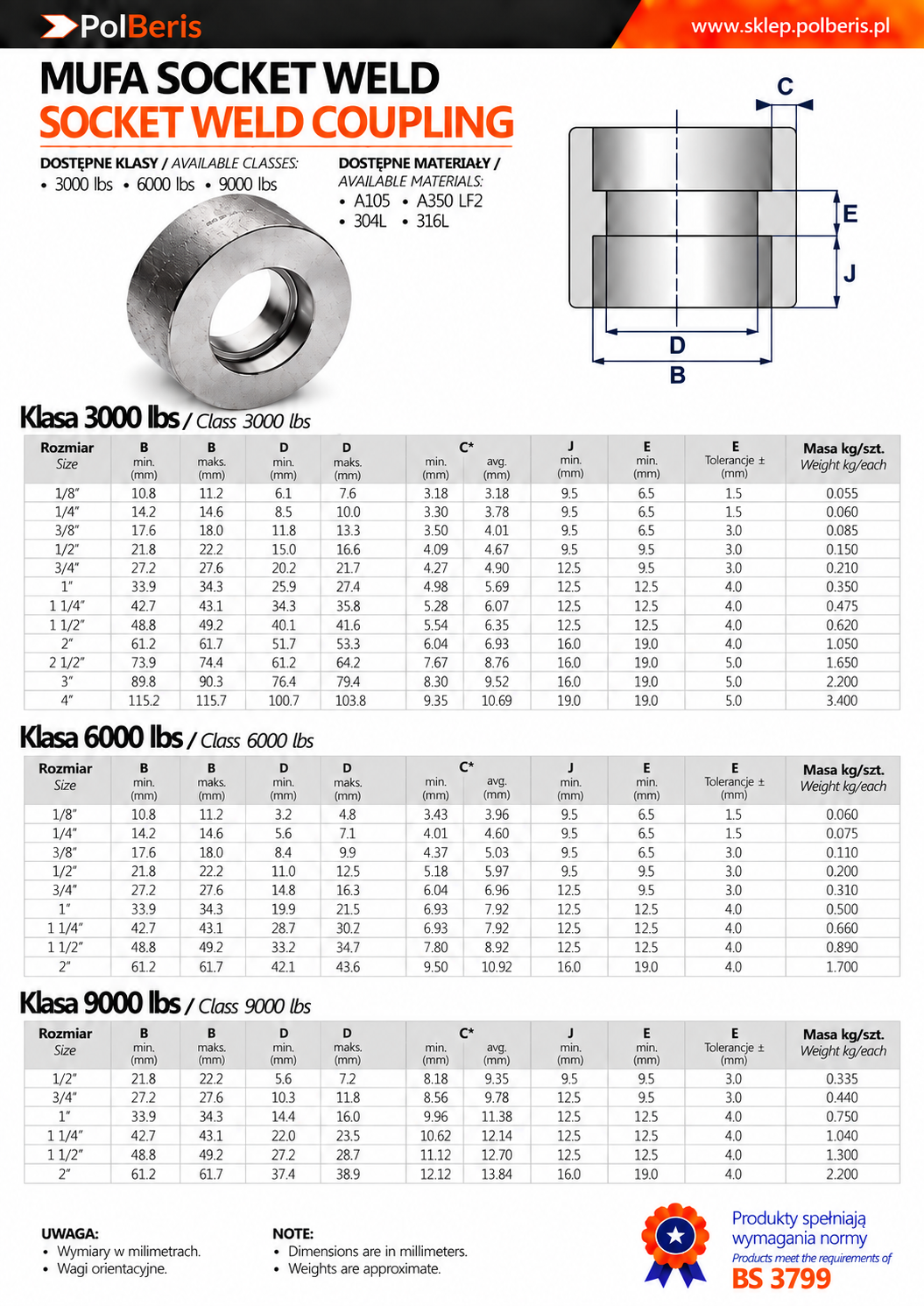

Dimension B: 89.8 mm – 90.3 mm
Fits Pipe: DN80 = 88.9 mm
Pressure Class: 3000 lbs (approx. 206 bar)
Standard: ANSI B16.11
Material Grade: Stainless steel 304L (also known as 1.4301)
Type: Socket weld fitting (SW)
Weldable steel
Applications: Boilers, high-pressure installations, high-temperature systems, refineries, marine industry, metallurgy
Certification: 3.1 certificate available on request (free of charge)
Origin: European Union

Also Known As: 3'' socket weld coupling 304L class 3000, SW coupling, socket weld fitting, stainless steel coupling 1.4301, SA/304

Product Information

The 3'' 304L socket weld coupling class 3000 belongs to the group of high-pressure fittings, where the pipe is inserted into a socket (recess) and welded. The welded socket creates a tight and durable pipeline structure. The Socket Weld (SW) system ensures safety, durability, and a permanent, leak-proof connection.

Socket weld fittings allow easy pressure matching for installations. Each fitting is marked with size, material grade, heat number, and pressure class. All SW fittings are supplied with 3.1 certification.

Advantages:
No need for pipe beveling before welding. Socket weld fittings require minimal preparation and are a reliable alternative to threaded fittings.

Marking:
Each fitting is stamped with size, grade, heat number, and pressure class, sometimes also thread type. Marking complies with applicable standards.

Material Information – 304 / 304L

304 / 304L is a standard stainless steel grade and the most versatile and widely used stainless steel. It offers excellent forming and welding properties and is available in a wide range of products.

Also Known As: 1.4301, 1.4306, 1.4307, AISI 304L

More information you will find here >>
