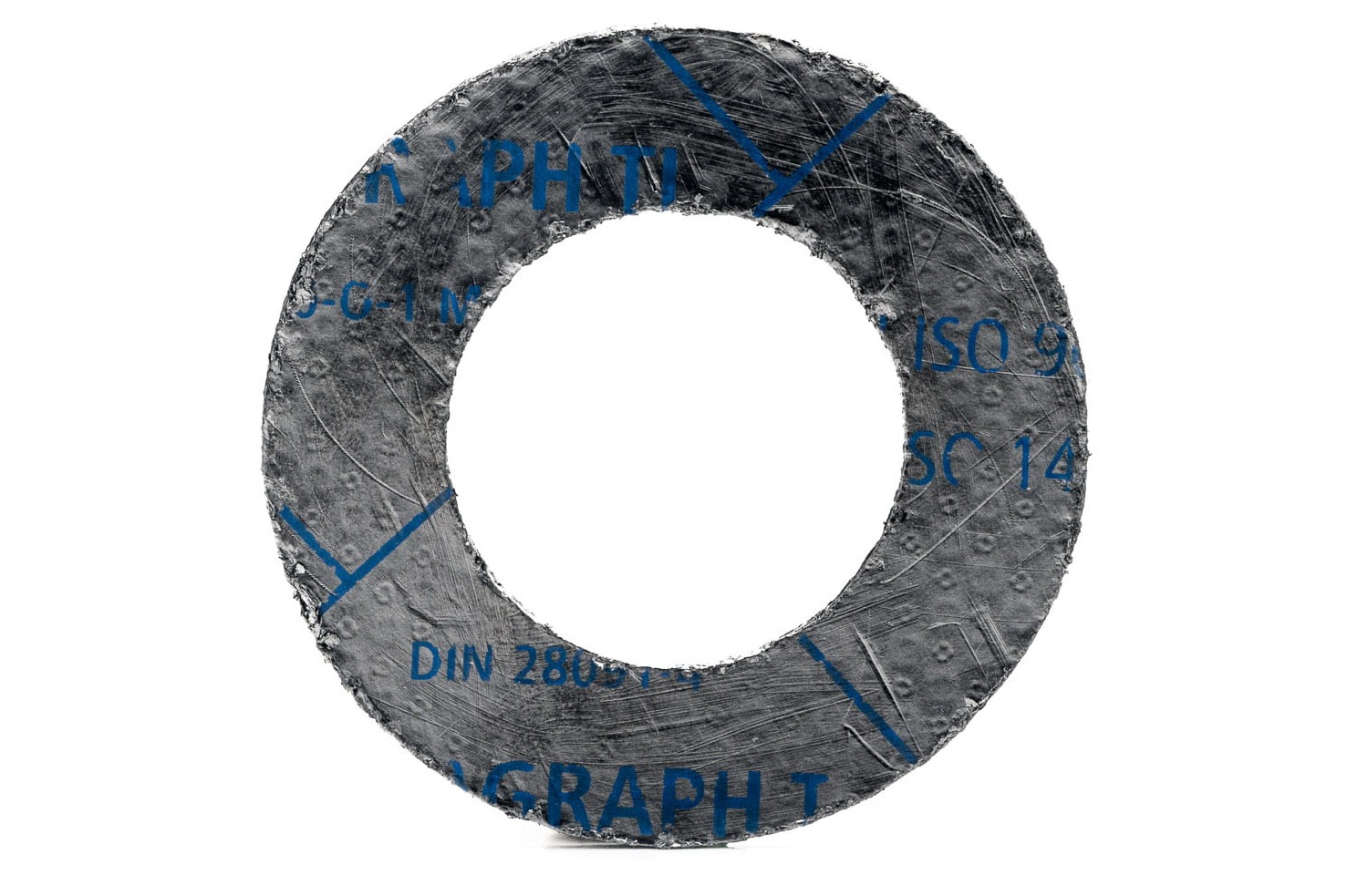

Graphite Gasket DN65 PN40 × 3 mm
Regular price:
Regular price:
product unavailable
add to wish list
Description
Graphite Gasket DN65 PN40 × 3 mm
- Size: DN65
- Thickness: 3 mm
- Pressure rating: PN40
- Material: Graphite reinforced with a 316 stainless steel insert for improved blowout resistance
- Flat gasket without bolt holes
- Maximum operating temperature: +450°C
- Maximum working pressure: 14 MPa
- Stability according to DIN 52913: 16 h / 300°C > 48 N/mm²
- Applications: steam systems, chemical industry, power generation, petrochemical industry, process industry
- Available according to ASME B16.20
Alternative Name: Graphite Gasket DN65 PN40 × 3 mm, flat IBC flange gasket, graphite gasket without bolt holes, industrial flange gasket, EN 1514-1 gasket.
Information
Graphite Gasket DN65 PN40 × 3 mm is manufactured from expanded graphite reinforced with a 316 stainless steel insert, providing increased blowout resistance. Graphite offers excellent flexibility, compressibility, and high temperature resistance.
Graphite Gasket DN65 PN40 × 3 mm is designed for high-temperature sealing applications and is widely used in steam systems, as well as in the chemical, power generation, petrochemical, and process industries.
Additional information
- Maximum operating temperature: +450°C
- Maximum working pressure: 14 MPa
- Stability according to DIN 52913: 16 h / 300°C > 48 N/mm²
We offer a wide range of gaskets and O-rings. If you are looking for a different material or size, please contact us. Call +48 63 261 42 02 or send an email to biuro@polberis.pl. We will prepare a quotation for you.
Graphite Gasket DN65 PN40 × 3 mm is also available in other sizes from our product range.
