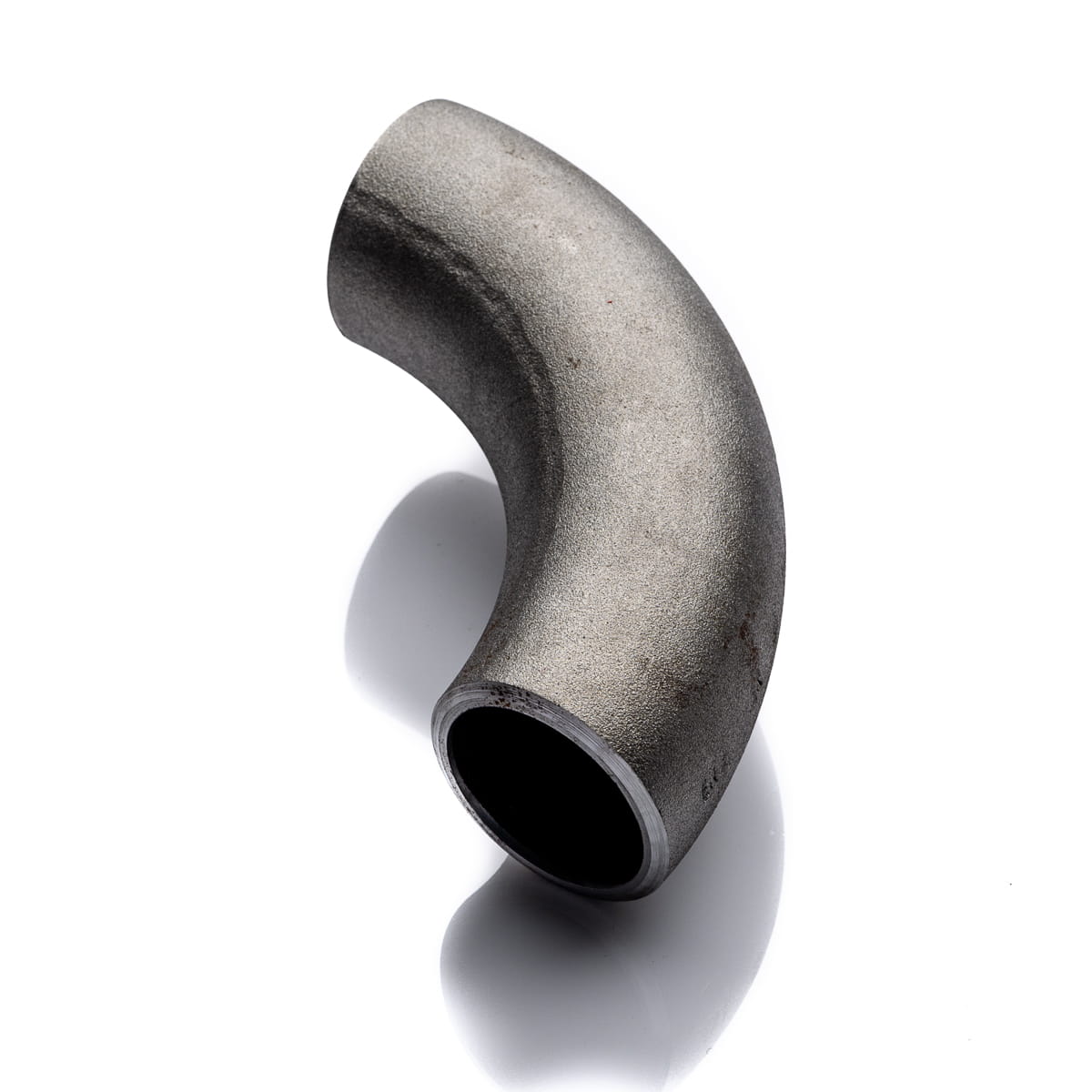

Butt weld elbow 48,3x2,6mm 5D P265GH

Kolano hamburskie 5D 48,3x2,6 P265GH stalowe do spawania

Availability: on sale

Dispatched within: 24 hours

Gross price: €10.28

incl. 23% TAX, excl. shipping costs

Regular price:

10.28

Net price: €8.36

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12268

Description

Butt weld elbow 48,3x2,6mm 5D P265GH

Product Specifications:

size of external wall: 48,3mm
thickness of wall: 2,6mm
radius: 5D ( R107,5 )
type: P265GH
according to. EN 10204/3.1 EN10253-2 DIN2605-1 DIN 2609 EN10216-2 DIN 17175 EN 10893-1
carbon steel for welding
precise production
atestation on request
application: industry, agriculture, construction, railings

Other name: Butt weld elbow 48,3x2,6mm 5D P265GH with a wall thickness of 2.6mm radius 5D grade P265GH black steel for butt weld elbows certification

When it comes to pipe fittings, the Butt Weld Elbow 48.3x2.6mm 5D P265GH is an essential component for various industries, including construction, agriculture, and railings. This high-quality product is designed for efficient welding and fluid transportation.

Applications of Butt Weld Elbows

Butt Weld Elbows are commonly used in industries that require robust pipe systems. They are essential for:

Transporting Hot Liquids: These elbows are designed to handle hot fluid flow, making them perfect for industries like petrochemicals and oil and gas.
Pressure Vessels: Ideal for constructing pressure vessels and boiler systems.
Construction Projects: Useful in various construction applications, particularly in implementing railings and support structures.

Advantages of P265GH Carbon Steel

P265GH is a widely recognized steel grade ideal for high-temperature applications. Its notable advantages include:

Excellent Weldability: This steel is engineered for welding, facilitating easier installation and maintenance.
Good Cold and Hot Forming Properties: P265GH is versatile enough for various forming processes, suitable for different industrial applications.

P265GH carbon steel is primarily a weldable steel grade that is suitable for working at elevated temperatures. It is undoubtedly widely used in the petrochemical, chemical and oil and gas industries. It is used for pressure vessels and boiler vessels, and for pipes that transport hot liquids. It is a standard European steel

Certainly, the advantages of this grade of steel include: good weldability, good cold and hot forming properties

Who Uses Butt Weld Elbows?

Butt Weld Elbows are primarily used by professionals in industries such as:

Petrochemical
Chemical
Oil and Gas
Construction
Agriculture

More information about elbows here>>

Our offer includes also elbows in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT.Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl

Technical data

Bend Angle	90 Degrees
Radius	5D
Steel Grade	P265GH ~ P285GH
Material	Carbon Steel
Size	DN40 ~ 1 1/2'' ~ 48,3mm
