Black Malleable Iron Cap 3'' T1
Regular price:
Regular price:
product unavailable
add to wish list
Description

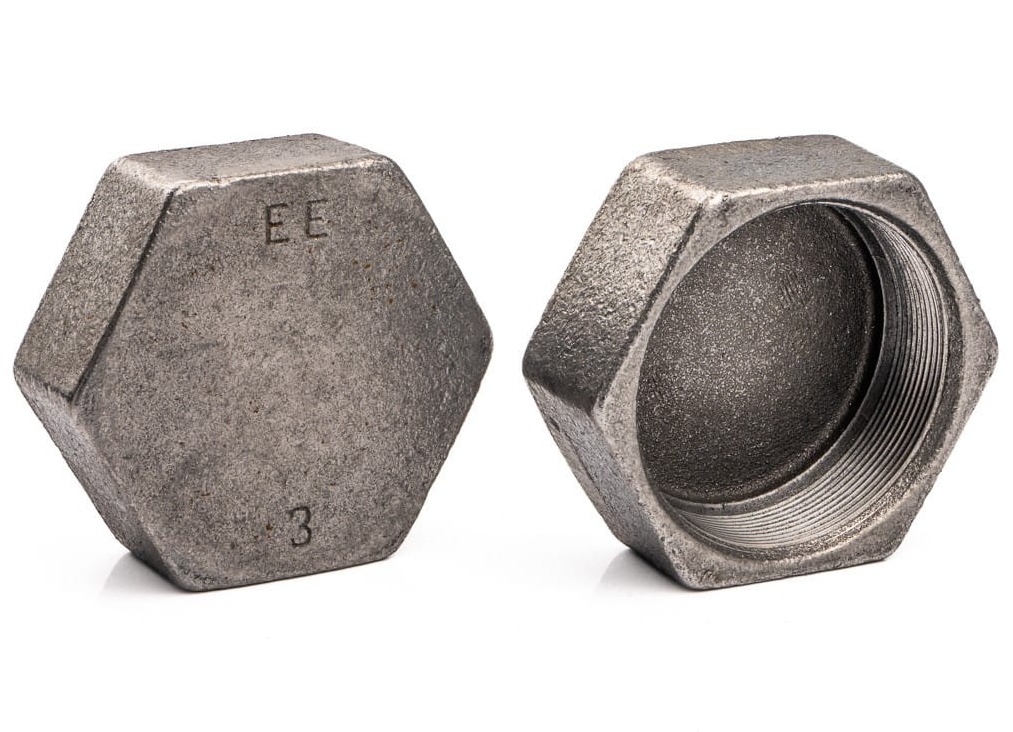

Black Malleable Iron Cap 3'' T1
- Size: 3'' (thread diameter: 84.9–85.3 mm)
- Model: T1 (also known as No. 43 or No. 300)
- Material: Malleable iron
- Applications: central heating systems, industrial installations
- Manufacturer: EE
Alternative Name: Black Malleable Iron Cap 3'' T1, hexagonal threaded cap, female threaded cap, DN80 threaded cap, black iron pipe cap.
Information
Black Malleable Iron Cap 3'' T1 is designed to securely seal female threaded pipe connections in industrial and heating installations. It is manufactured from malleable iron, providing durability and reliable performance in low and medium-pressure systems.
Technical Specifications
- Manufactured according to: EN 10242
- Threads: Internal parallel Rp thread according to ISO 7-1
- Permanently marked with the fitting size
Applications
- Central heating systems
- Industrial installations
- Cold water systems
- Hot water systems
- General plumbing
Available Sizes
1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', 2 1/2'', 3'', 4''.
The range of black malleable iron fittings includes:
- Elbows
- Reducing elbows
- Tees
- Reducing tees
- Reducers
- Short and long bends
- Couplings
- Reducing couplings
- Caps
- Plugs
- Threaded unions
- Union fittings with gasket
- Conical unions
- Straight and reducing nipples
We also offer galvanized malleable iron caps in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.
Black Malleable Iron Cap 3'' T1 is also available in other sizes from our product range.
Learn more about plugs and caps here >>
Technical data
| Pressure | Pressure Range < 50 bar |
| Thread Type | BSP / G / Rp / Rc Thread |
| Size | 3'' |
| Material | Cast Iron |
