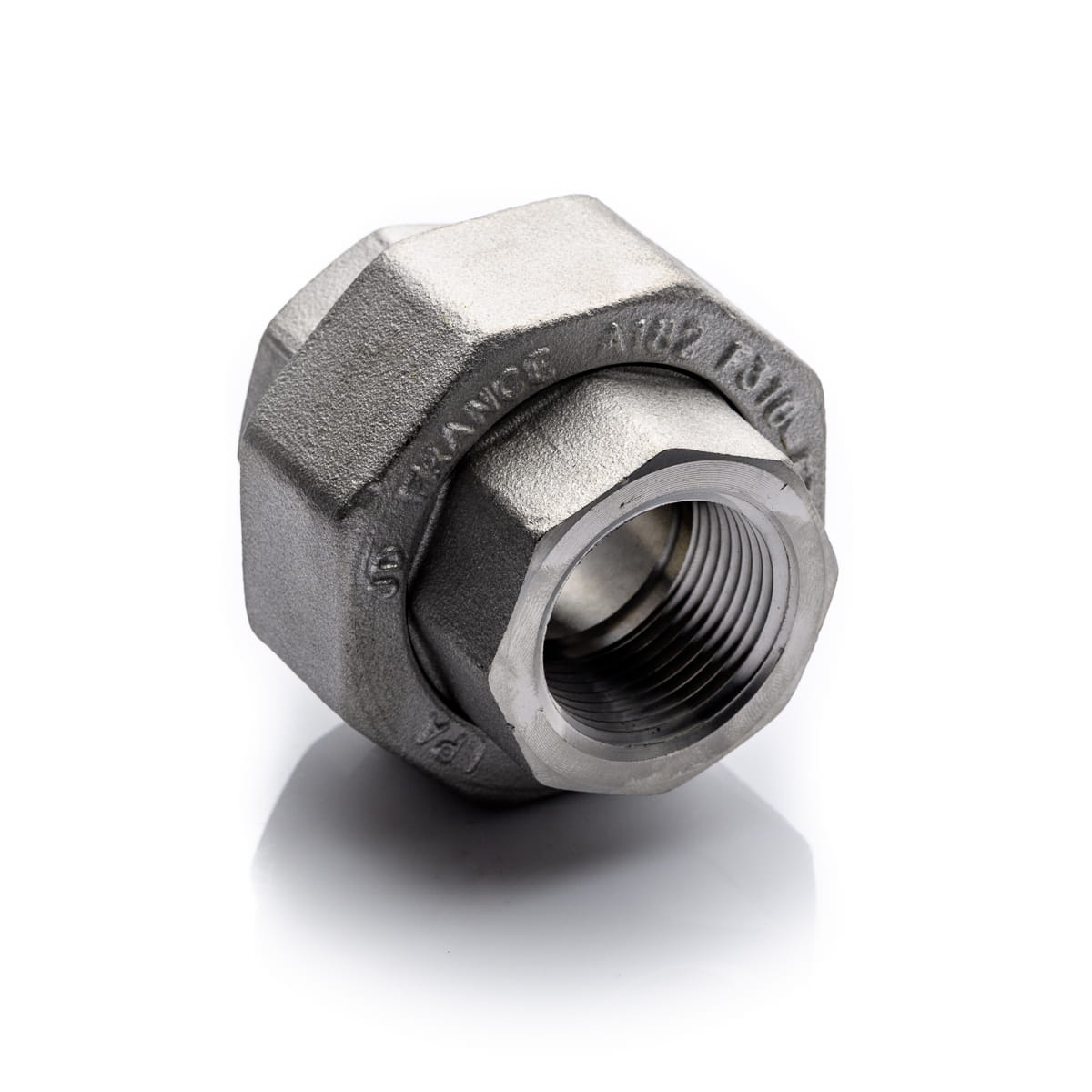

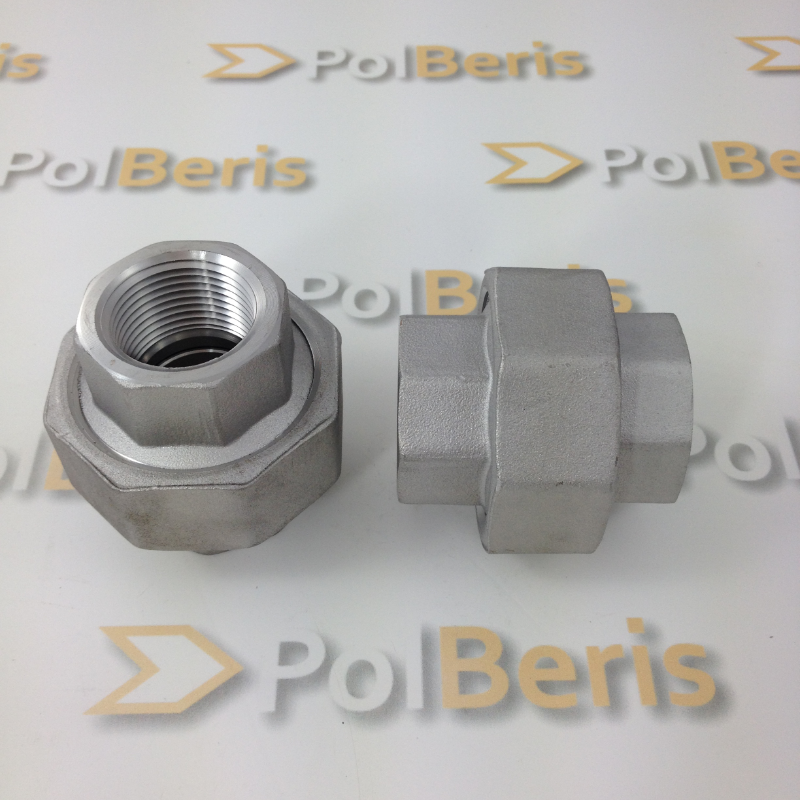

1/2'' BSP 316L Union Fitting Class 3000

• Size: 1/2'' (thread diameter 18.3 ÷ 18.7mm)
• Thread: BSP
• Material: Stainless steel 316L acid-resistant (1.4404)
• Pressure class: 3000Psi (206bar)
• Applications: industry, metallurgy, refineries, boilers, tanks
• Properties: for high pressure, for high temperature
• 3.1 certificate on customer request (free)
• Certificate data: ASTM A182/A 182M-17 F316L/ASME SA 182/SA 182M Sect II Part A Ed.2017
• NF EN10272 (BARS) NF EN10222-5 (Forgings) 1.4404 PED 2014/68/EU

Other name: 1/2'' BSP 316L Class 3000 union, two-piece fitting, Dutch fitting, nipple union, threaded union WW 1/2'' RP GZ-GW A182 316L Class 3000, high-pressure tapered union

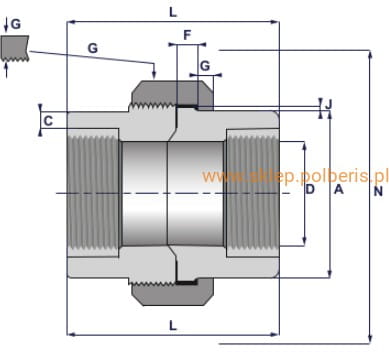

A [mm] = 27.69

C [mm] = 3.73

D [mm] = from 17.06 to 17.86

G [mm] = 3.68

H [mm] = 14.00

L [mm] = 49.02

Information about the 1/2'' BSP 316L Union Fitting Class 3000

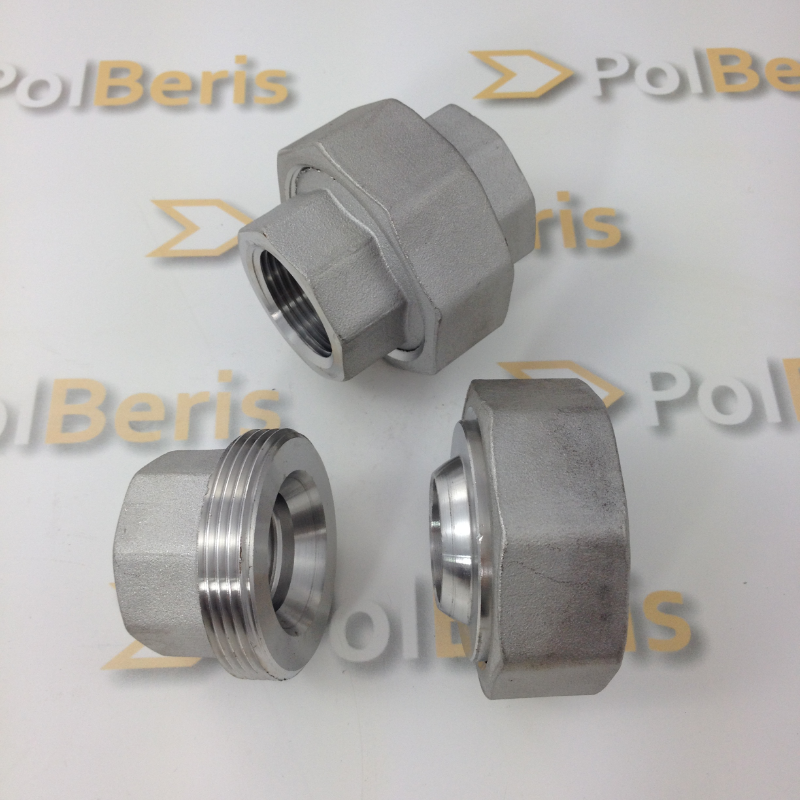

1/2'' BSP 316L Class 3000 union – is a two-piece fitting used for quick connection and disconnection of hydraulic systems. Inside it has a tapered seal, praised by hydraulics professionals, as it does not require additional seals.

Steel grade 316 / 316L – is a very popular stainless steel with high corrosion resistance. It has excellent welding and forming properties.

Advantages of grade 316 / 316L: non-magnetic steel, excellent ductility, excellent impact strength, excellent weldability, good strength, wide operating temperature range.

Other name: DIN 1.4401 1.4404 SS 316 AISI316 AISI316L SS316 SS316L

Applications: pharmaceutical equipment, dairy industry, brewing industry, marine fittings, coastal architecture, food processing industry, industrial machinery, agricultural machinery, automotive.
