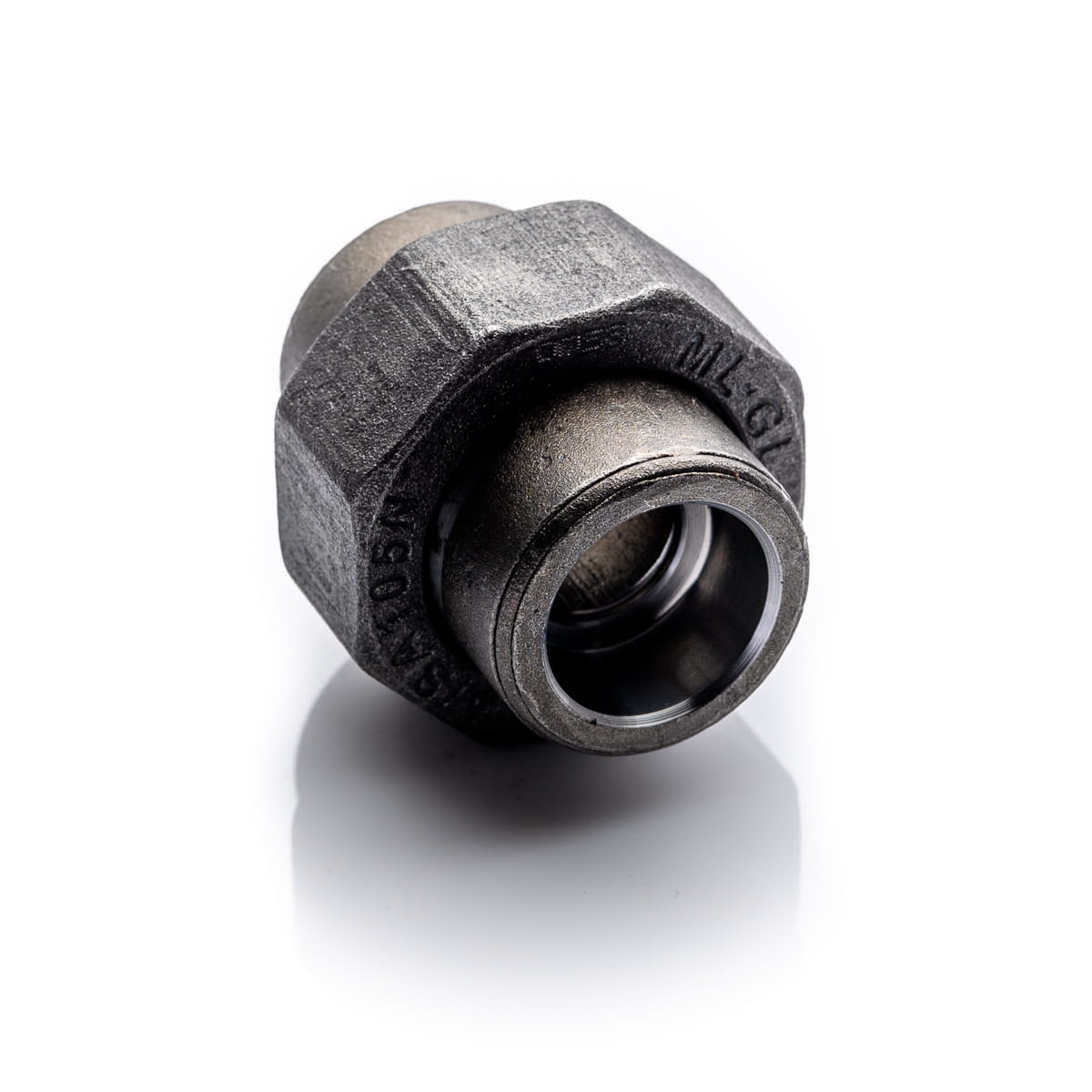

Union 3/8" Socket Weld A105 Class 3000

• size: 3/8"
• material: A105 boiler steel
• pressure class: 3000 PSI (206 bar)

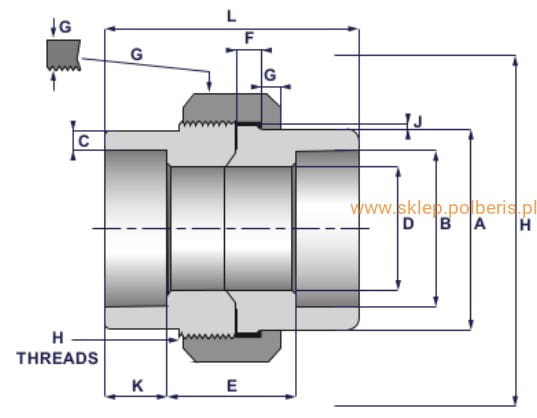

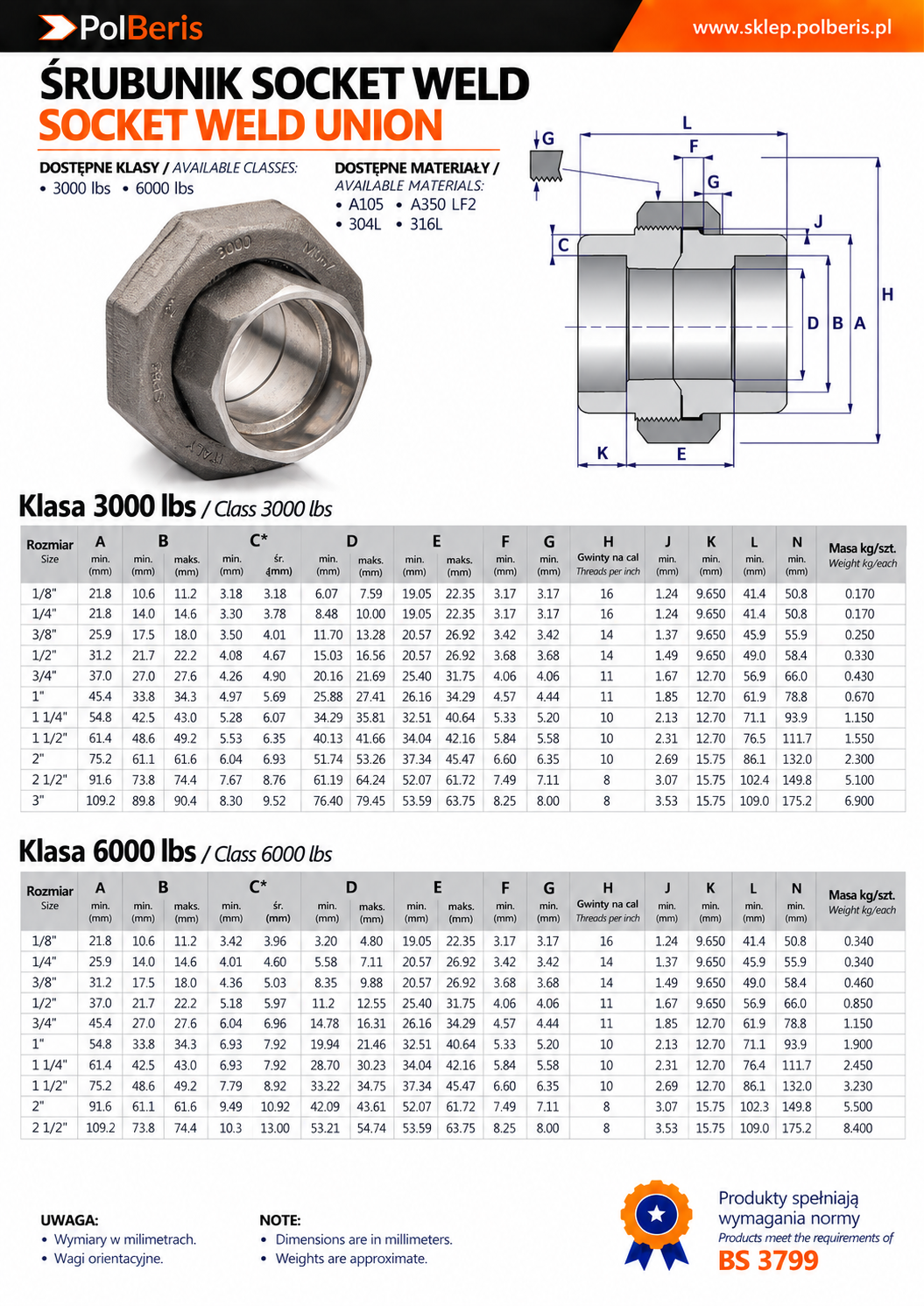

• dimensions according to MSS SP-83
• seal: metal-to-metal (cone)
• socket weld union
• application: industry, steelworks, refineries, boilers, tanks
• properties: suitable for high pressure and high temperature applications
• 3.1 certificate available on request (free of charge)

Alternative Name: Union 3/8" Socket Weld A105 Class 3000 socket weld union MSS SP-83 boiler union high-pressure union female thread UNION P245GH P285GH F-F forged steel #3000Informacje o śrubunku do spawania socket weld:

Information about the Socket Weld Union

Union 3/8" Socket Weld A105 Class 3000 is a two-piece fitting designed for quick connection and disconnection of hydraulic systems.

Socket Weld (SW) fittings belong to the group of high-pressure fittings, where the pipe is welded into a recessed socket. The socket welded to the pipe creates a leak-tight installation structure. The Socket Weld (SW) system guarantees safety, durability, and installation integrity. SW fittings make it easy to select the appropriate pressure rating for the system. Each fitting is marked with size, material grade, heat number, and pressure class. All SW fittings are available with 3.1 certification.

Material Information

A105 steel is a carbon steel widely used for piping components, flanges, and fittings. This carbon steel grade is intended for operation at ambient and elevated temperatures, especially in pressure systems. Like most low-alloy steels, it offers good machinability. It is also a weldable steel.

Similar Material Grades 1.0460, C22.8, P245GH, P265GH

More information about unions you may find here>>

Our offer includes also fittings in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
