Union 3/4" BSP x Weld End 316 CF8M Stainless Steel
Regular price:
Regular price:
product unavailable
add to wish list
![Pin It](http://pinterest.com/pin/create/button/?url=https://sklep.polberis.pl/en_US/p/Union-34-BSP-x-Weld-End-316-CF8M-Stainless-Steel/14161&media=//sklep.polberis.pl/userdata/public/gfx/27894/Srubunek-nierdzewny-12-gwint-BSP-x-do-spawania.png&description=Union 3/4" BSP x Weld End 316 CF8M Stainless Steel "Pin It")
Description

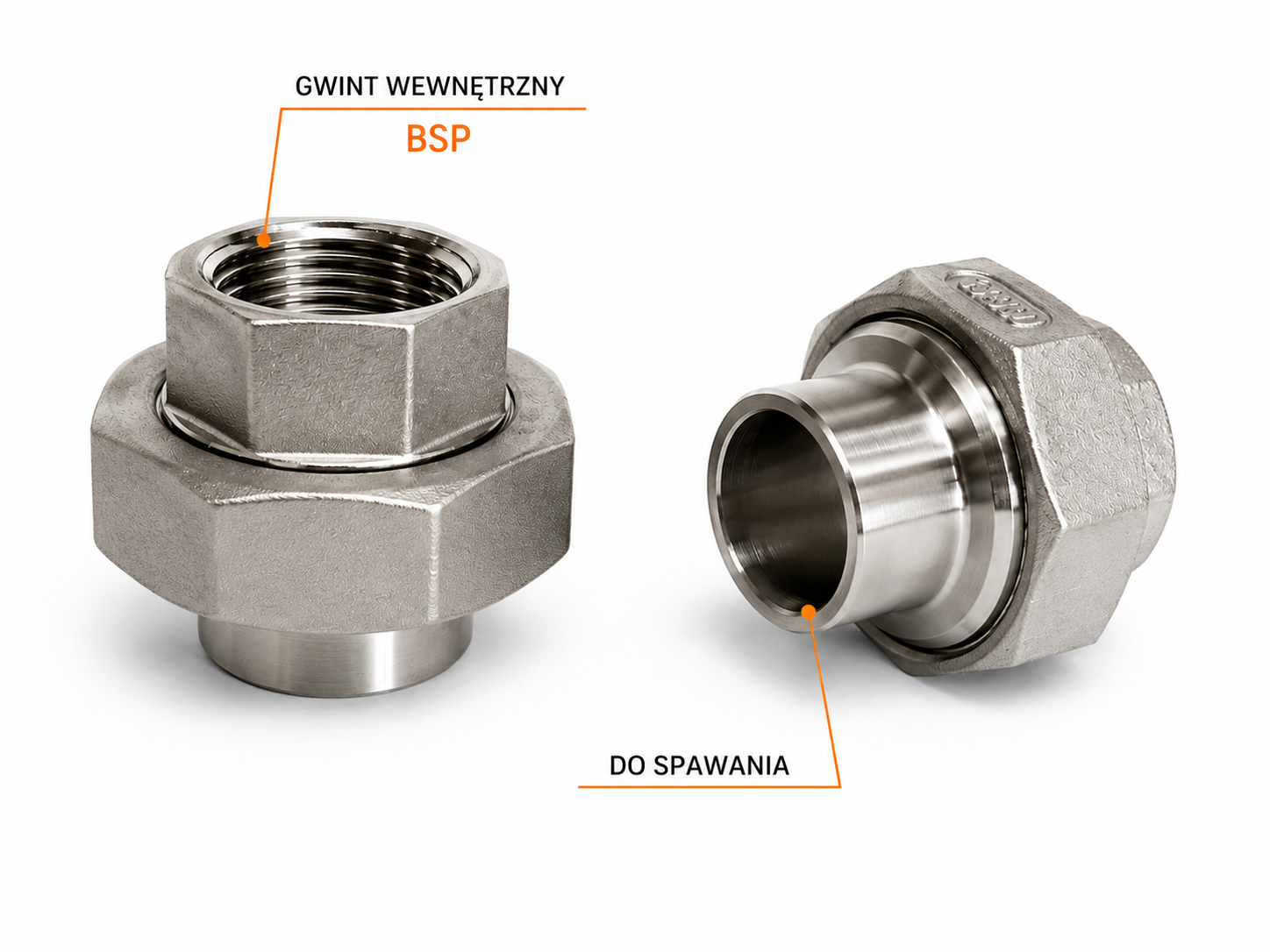

Union 3/4" BSP x Weld End 316 CF8M Stainless Steel
- size: 3/4"
- connection A: BSP thread
- connection B: weld end
- material: 1.4408 / 316 (CF8M)
- seal: PTFE
- pressure rating: PN16
- high corrosion resistance
- precision manufacturing
- 3.1 certificate
Union 3/4" BSP x Weld End 316 CF8M Stainless Steel
Union 3/4" BSP x Weld End 316 CF8M Stainless Steel is a piping component designed for durable yet detachable connections in industrial, process, and hydraulic installations. One side of the union is equipped with a BSP thread, while the other side features a weld end, allowing easy connection between threaded systems and welded pipelines.
The body is manufactured from CF8M stainless steel casting (equivalent to stainless steel 316 / 1.4408), which offers very good resistance to corrosion, moisture, and many chemical substances. As a result, the union is suitable for use in chemical, pharmaceutical, and water treatment industries, as well as in stainless steel process installations.
The PTFE seal provides excellent tightness and resistance to most industrial media. The union design allows quick disassembly of selected pipeline sections without cutting or re-welding the system, significantly simplifying maintenance work.
More information about unions you may find here >>
Our offer includes also unions in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
