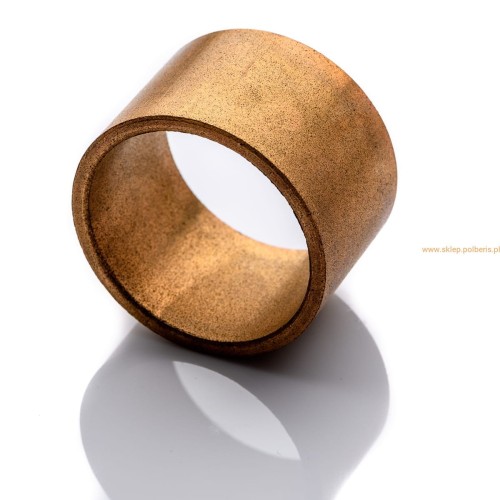

Sintered Bronze Bushing 50 × 60 × 60 mm SINTB

• Size: 50 × 60 × 60 mm
• Material: Sintered bronze
• Type: SINTB
• Manufacturer: SANKYO

Advantages

• Eliminates the risk of bearing seizure
• Permanent lubrication by an oil film
• Quiet operation
• Low coefficient of friction
• Maintenance-free
• Precision manufactured
• Load capacity up to 10 MPa (100 kg/cm²)
• Rotational speed up to 30,000 rpm

Applications: Pumps, electric motors, machinery, sluice gates, fans, beverage filling equipment, industrial chairs, garage doors, sliding windows, projectors and automotive components.

More Information

Operating Temperature

Operating temperature range: -12°C to +100°C.

Exceeding these temperatures may require additional lubrication.

Oil Loss – Additional Lubrication

Avoid contact with absorbent materials to prevent oil loss. Store bushings in sealed plastic packaging.

Additional lubrication is normally not required but may be beneficial under severe operating conditions. This can be achieved by immersing the bushing in oil heated to 80°C and leaving it submerged until the oil cools.

Shaft Recommendations

Shafts should preferably be hardened or have a high-quality surface finish.

When using stainless steel shafts, polishing or chrome plating is recommended to reduce wear.

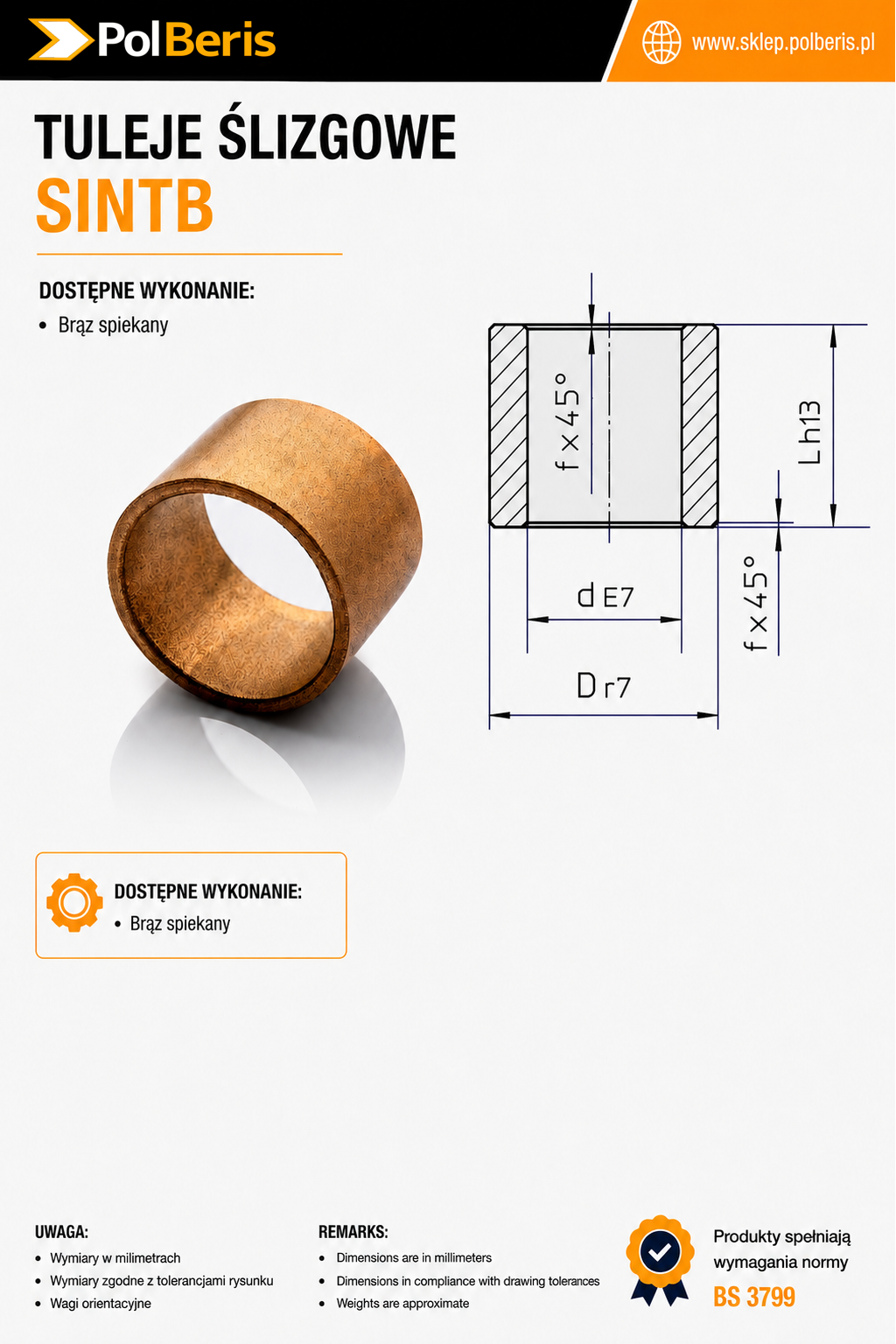

Recommended shaft tolerance: h6–h9, depending on the E7 bushing tolerance.

Machining

Any additional machining should be performed using carbide (K20/01) or diamond-tipped tools.

• Cutting speed: 100–150 m/min

The bearing surface should not be ground or cut, as this may clog the material pores required for self-lubrication.

Additional lubrication may be required in applications involving very high loads, temperatures or speeds.

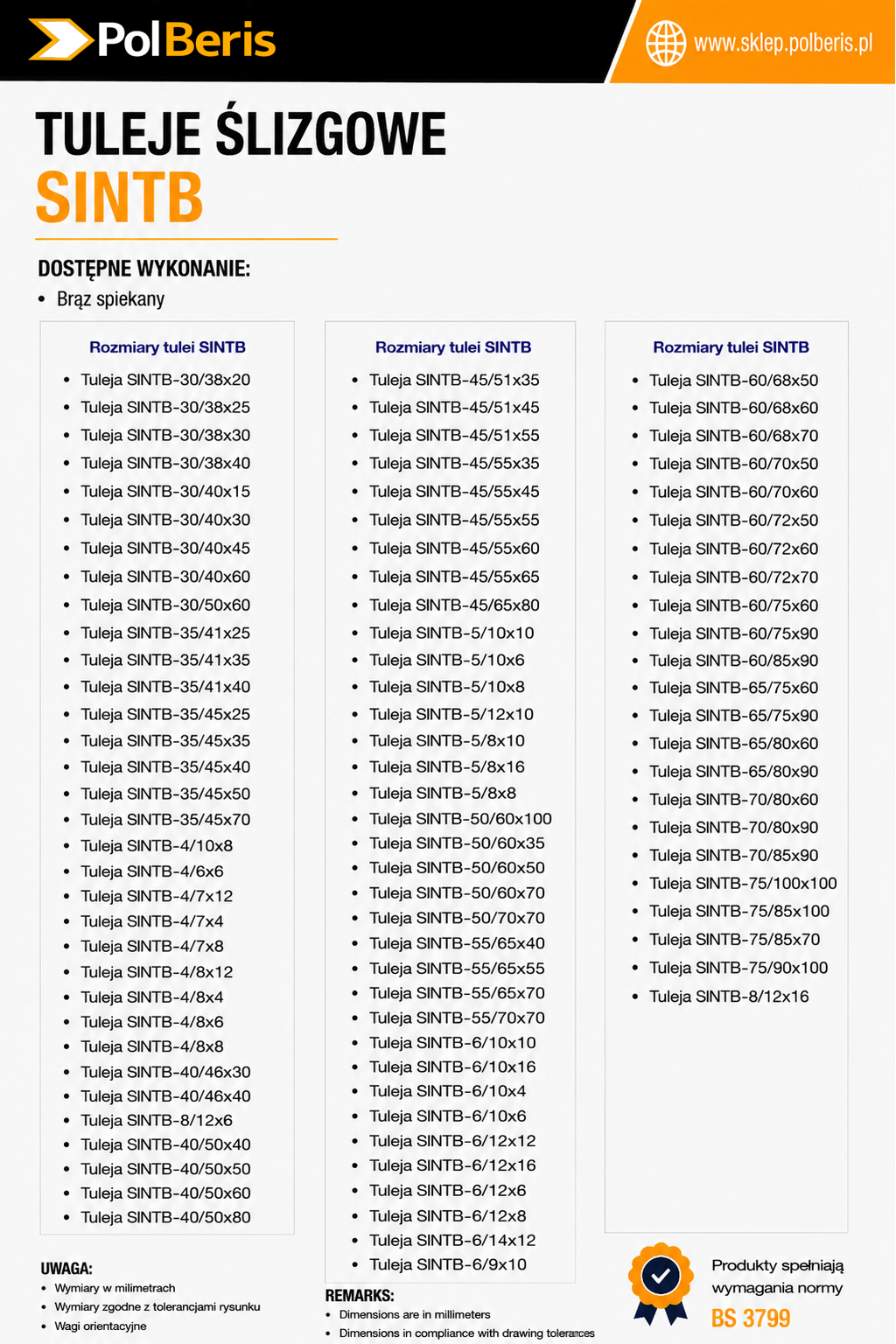

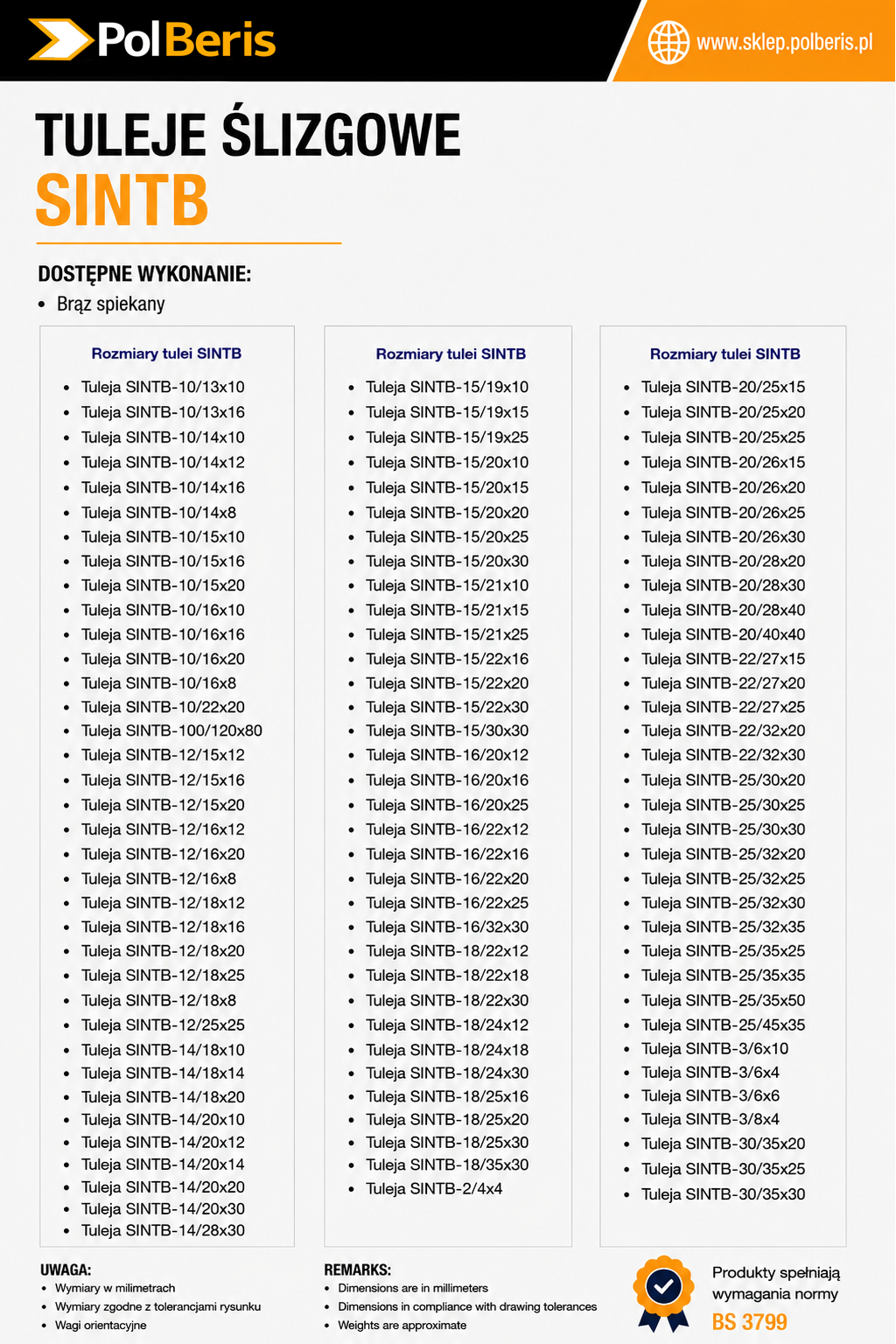

We offer SINTB sintered bronze bushings in many other sizes. If you have any questions, please contact us by email at biuro@polberis.pl or call +48 63 261 42 02.
