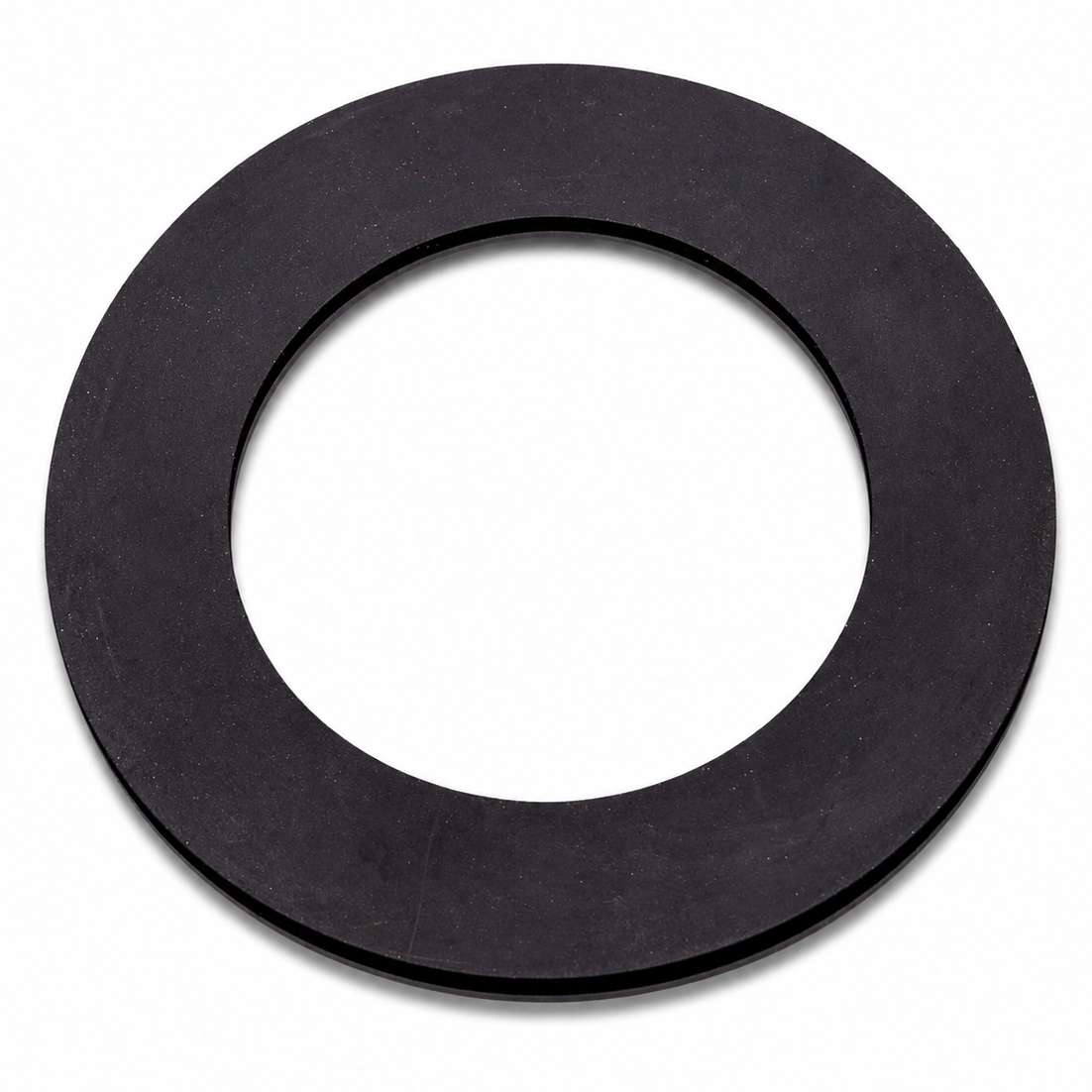

SBR Gasket DN250 PN10 × 8 mm
Regular price:
Regular price:
product unavailable
add to wish list
Description
SBR Gasket DN250 PN10 × 8 mm
- Size: DN250
- Pressure rating: PN10
- Thickness: 8 mm
- Material: SBR
- Operating temperature: -30°C to +70°C
- Applications: general-purpose rubber sheet for static sealing, storage facilities, vibration pads, bumpers, damping pads, footwear industry
- Not recommended for: esters, glycol, benzene, chlorinated hydrocarbons
- Industrial applications: production of gaskets, O-rings, tyres, inner tubes, bumpers, fuel and oil hoses, automotive and petrochemical industries
Alternative Name: SBR Gasket DN250 PN10 × 8 mm, black rubber flange gasket, standard flange gasket, SBR sealing gasket, flat flange gasket.
Information
SBR Gasket DN250 PN10 × 8 mm is manufactured from general-purpose SBR rubber, designed for static sealing applications and industrial use.
Suitable media
- Neutral aqueous solutions
- Brake fluids
- Alcohols
- Inorganic acids and alkalis
Properties
- Operating temperature: -30°C to +70°C
- Thickness range: 1–12 mm
- Colour: Black
- Hygienic certificate available
Limitations
- Not resistant to prolonged UV exposure
- Flammable material
Custom gasket cutting
Available according to:
- EN 1514-1
- EN 12560-1
- ASME B16.20
- DIN 2690
- Customer technical drawings
- TG flat gaskets for tongue-and-groove flanges
- SR flat gaskets for male-and-female flanges
- IBC flat gaskets for raised-face flanges
- Custom shapes and full dimensional range
- Large segmented gaskets
- Lead time: 2–5 days
Installation
- Verify the correct gasket size and material.
- Inspect the gasket for damage.
- Ensure flange faces are clean and undamaged.
- Clean bolts, nuts and washers.
- Align flange and bolt holes.
- Centre the gasket between the flanges.
- Do not use sealing compounds.
- Tighten evenly without over-compressing the gasket.
We also offer SBR gaskets, O-rings, and other sealing products in a wide range of sizes. For enquiries, contact us at biuro@polberis.pl or call +48 63 261 42 02.
SBR Gasket DN250 PN10 × 8 mm is also available in other sizes from our product range.
Learn more about gaskets here >>
Technical data
| Size | DN250 ~ 10'' |
