Nipple union 1/4'' sealing cone
Regular price:
Regular price:
product unavailable
add to wish list
Description

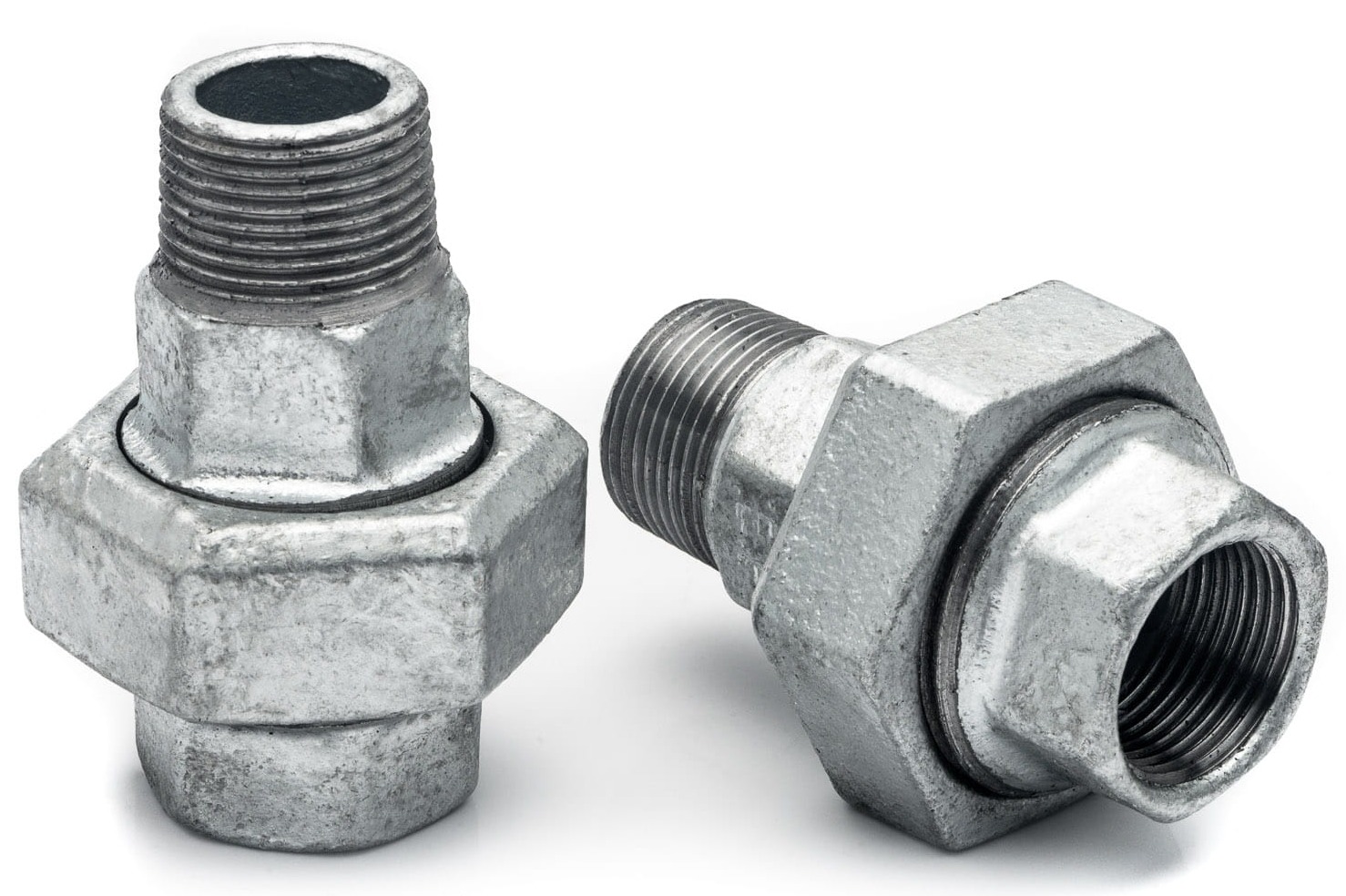

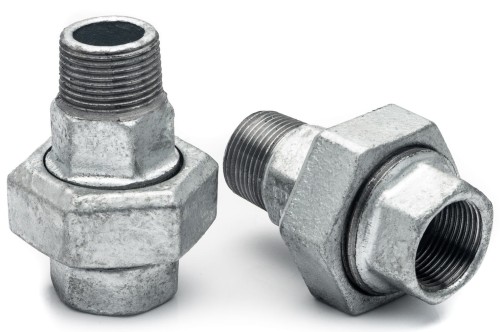

Nipple union 1/4'' sealing cone
- size: 1/4''
- diameter of the external thread is 12,9 ÷ 13,1mm
- diameter of the internal thread is 11,4 ÷ 11,9mm
- galvanized union
- threads: internal and external
- material: cast iron
- sealing: cone
- application: hot, cold water, central heating, plumbing systems
Other name: Nipple union 1/4'' sealing cone: 5521G, with gasket two-piece union galvanized cast iron fitting for central heating system.
Information
Nipple union 1/4'' sealing cone – is used in all industries, in central heating systems and for quick connection and disconnection of hydraulic systems. Fittings are used to connect fittings, pumps, industrial equipment, pipes, fittings, etc. The main advantage of galvanized cast iron fittings is the price and general availability. They are used in installations with small requirements, for cold water and hot water.
Fttings are made of galvanized cast iron. Their surface is protected by hot-dip galvanizing.
- Maximum working pressure: 25 bar at working temperatures from -20°C to 120°C
- Maximum working pressure: 20-25 bar at working temperatures from -20°C to 300°C
Galvanized cast iron fittings are made in accordance with EN10242.
The surface is coated with hot-dip galvanizing which protects against corrosion and weather conditions.
The galvanized cast iron fittings have R tapered external thread, and Rp cylindrical internal threads, in accordance with ISO 7/1.
Rating: fittings have a stamped size.
- Available sizes: 1/8'' - 1/4'' - 3/8'' - 1/2'' - 3/4'' - 1'' - 1 1/4'' - 1 1/2'' - 2'' - 2 1/2'' - 3'' - 4''
- Galvanized iron fittings do not come in metric sizes.
The group of galvanized cast iron fittings includes: elbows, reduction elbows, tees, reduction tees, reductions, short bends, long bends, couplers, reduction couplers, plugs, plugs with rim, plugs without rim, T9 plugs, union fittings with female threads, nipple unionfittings, union fittings with gasket, conical union fittings, straight nipples, reduction nipples.
We also offer cast iron fittings without tin (uncovered).
It is noteworthy that the nipple union is used for quick connection and disconnection of plumbing systems, so it can certainly be used for hot and cold water and central heating.
More information about unions you may find here >>
Our offer includes also unions in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl
Write to us if you have European VAT number and do not want to pay the TAX. We will prepare an offer without VAT. Contact us if you want to know price of shipping. Send an inquiry to e-mail: biuro@polberis.pl
