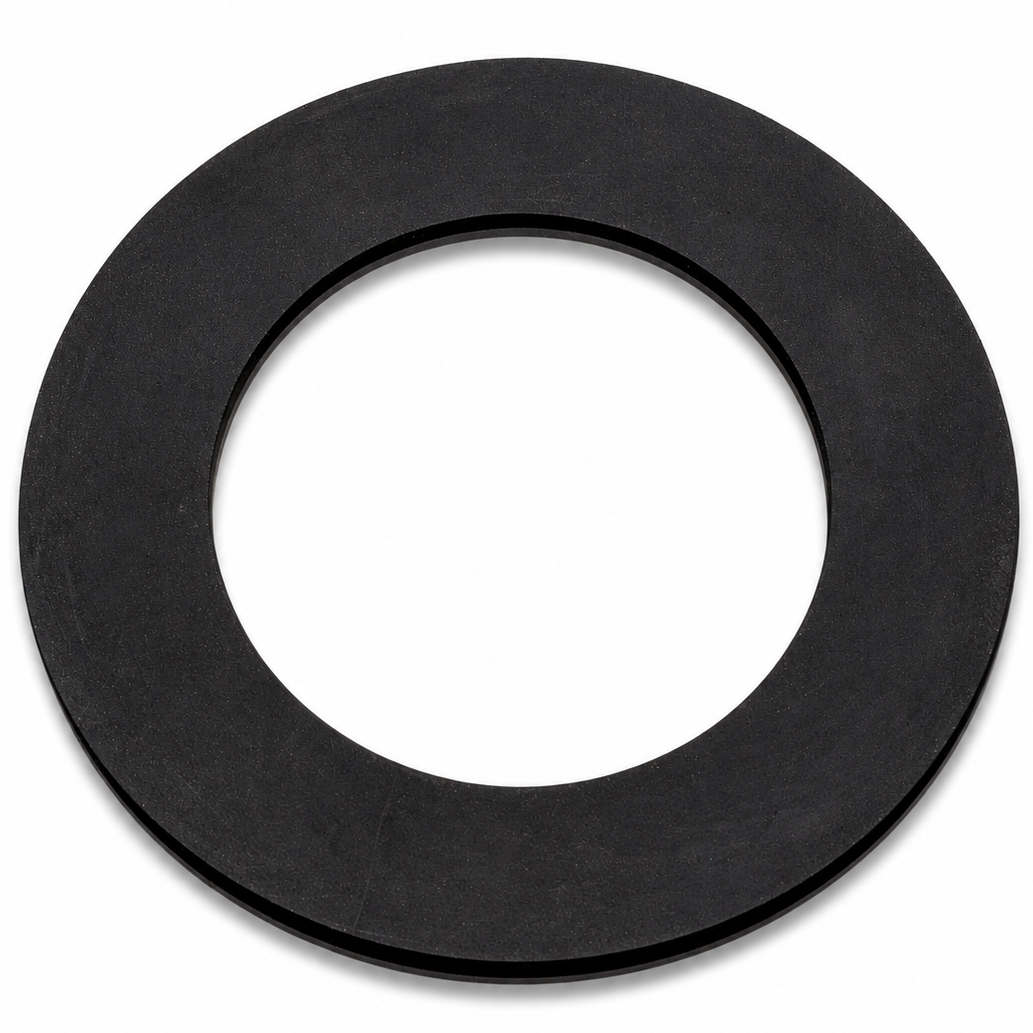

NBR Gasket DN25 PN10–16 × 2 mm
Regular price:
Regular price:
product unavailable
add to wish list
Description
NBR Gasket DN25 PN10–16 × 2 mm
- Size: DN25
- Pressure rating: PN10–16
- Thickness: 2 mm
- Material: Oil-resistant NBR rubber sheet
- Manufactured according to: EN 1514-1
- Operating temperature: -40°C to +100°C
- Advantages: excellent resistance to oils, greases, hydraulic fluids, aliphatic hydrocarbons, propane, butane, alcohols, and aqueous salt solutions
- Not recommended for: esters, glycol, benzene, chlorinated hydrocarbons
- Applications: static sealing, gasket and O-ring production, tyres, inner tubes, bumpers, fuel and oil hoses, automotive and petrochemical industries
Information
NBR Gasket DN25 PN10–16 × 2 mm is manufactured from oil-resistant vulcanized NBR rubber and is designed for reliable sealing of industrial flange connections exposed to oils, fuels, and hydraulic fluids.
NBR Properties
- Thicknesses available: 1–12 mm
- Colour: Black
- Operating temperature: -40°C to +100°C
- Available with no reinforcement or reinforced with one or two fabric inserts
Advantages
- Excellent resistance to oils and greases
- Resistant to hydraulic fluids
- Suitable for aliphatic hydrocarbons
- Compatible with propane, butane, alcohols, and aqueous salt solutions
Limitations
- Not recommended for esters
- Not recommended for glycol
- Not recommended for benzene
- Not recommended for chlorinated hydrocarbons
Applications
- Static sealing
- Industrial gaskets
- O-rings
- Fuel and oil hoses
- Automotive industry
- Petrochemical industry
Custom gasket manufacturing
Available according to:
- EN 1514-1
- EN 12560-1
- ASME B16.20
- DIN 2690
- Customer technical drawings
- TG, SR and IBC flange gasket designs
- Custom shapes and dimensions
- Large segmented gaskets
- Lead time: 2–5 days
Installation
- Check the correct gasket size and material.
- Inspect the gasket for damage.
- Clean and inspect flange faces.
- Clean bolts, nuts, and washers.
- Align the flange bolt holes.
- Centre the gasket carefully.
- Do not use sealing compounds.
- Tighten evenly without over-compressing the gasket.
We also offer NBR gaskets, O-rings, and industrial sealing products in many sizes. If you have any questions, please contact us at biuro@polberis.pl or call +48 63 261 42 02.
NBR Gasket DN25 PN10–16 × 2 mm is also available in other sizes from our product range.
Learn more about sealing products here >>
Technical data
| Size | DN25 ~ 1'' |
