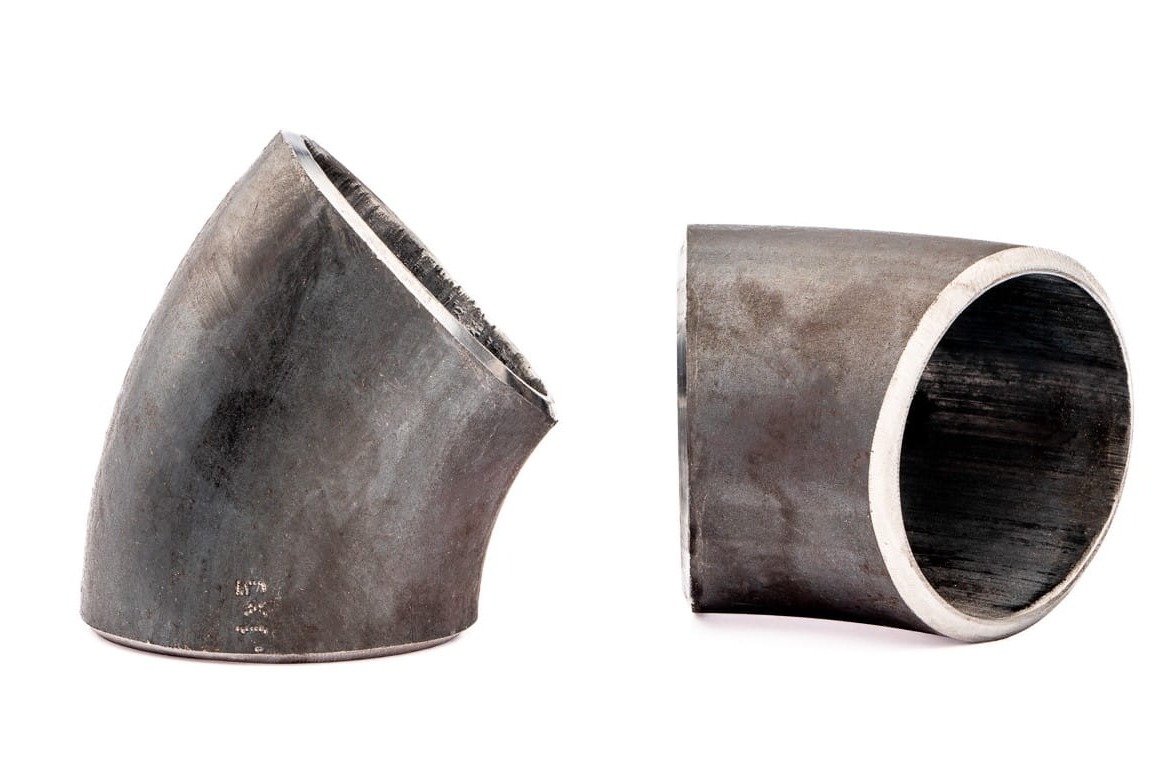

Hamburg Elbow 114.3 × 3.6 mm 45° P235GH Type A
Regular price:
Regular price:
product unavailable
add to wish list
Description
Hamburg Elbow 114.3 × 3.6 mm 45° P235GH Type A
- Size: 114.3 × 3.6 mm
- Outside diameter: 114.3 mm
- Wall thickness: 3.6 mm
- Angle: 45°
- Material: P235GH carbon steel
- Excellent weldability
- Butt weld elbow
- Applications: industry, agriculture, construction, water supply, central heating, gas installations
- 3.1 material certificate available on request (free of charge)
Alternative Name: Hamburg Elbow 114.3 × 3.6 mm 45° P235GH Type A, seamless butt weld elbow, carbon steel welding elbow, black steel elbow, 45-degree pipe elbow.
Information
Hamburg Elbow 114.3 × 3.6 mm 45° P235GH Type A is a butt weld pipe fitting designed to change the direction of flow in industrial piping systems. It provides a strong, leak-tight welded connection and is widely used in pressure pipelines, water systems, heating installations, and gas networks.
P235GH Steel
P235GH is a weldable pressure vessel carbon steel intended for service at elevated temperatures. It is widely used in boiler systems, pressure vessels, heating installations, and industrial piping carrying hot liquids and gases.
Advantages of P235GH Steel
- Excellent weldability
- Good cold-forming properties
- Good hot-forming properties
- Suitable for pressure applications
We also offer Hamburg elbows in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl.
Hamburg Elbow 114.3 × 3.6 mm 45° P235GH Type A is also available in other sizes from our product range.
Learn more about weld fittings here >>
Technical data
| Bend Angle | 45 Degrees |
| Radius | 3D |
| Steel Grade | S235JR ~ P235GH |
| Material | Carbon Steel |
| Size | DN100 ~ 4'' ~ 108mm ~ 114,3mm |
