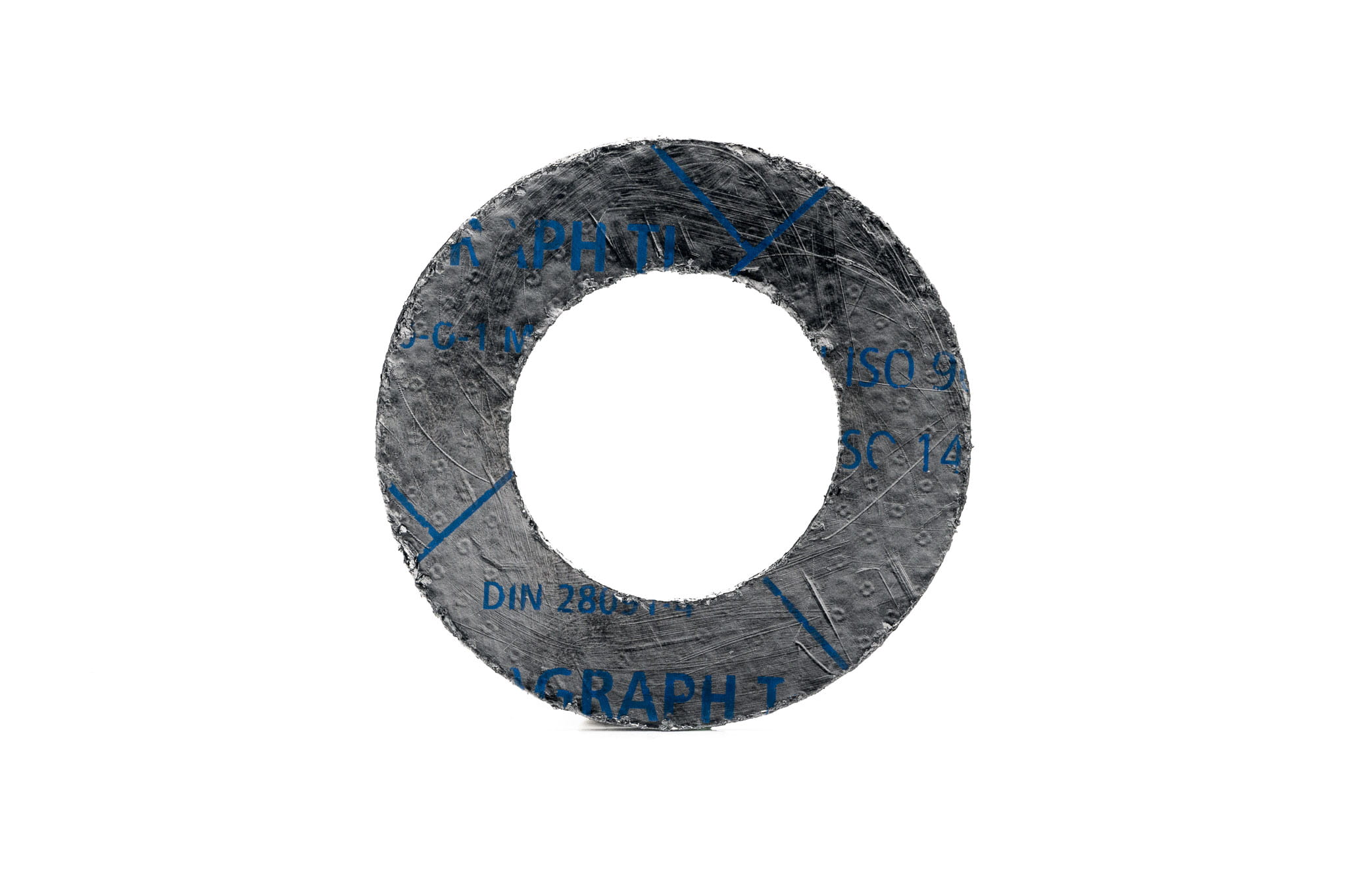

Graphite Gasket DN50 PN10-40 2mm

• size: DN50
• thickness: 2mm
• pressure rating: PN10, PN16, PN25, PN40
• without bolt holes
• temperature: max. +450°C
• maximum pressure: 14MPa
• stability according to DIN 52913, 16h/300°C >48 N/mm²
• application: steam systems, chemical industry, power industry, petrochemical industry, processing industry, etc.
• gaskets can be manufactured according to ASTM B16.20 standard

Alternative Name: Graphite Gasket DN50 PN10-40 2mm flat flange gasket IBC without bolt holes for industrial flange applications according to EN1514-1

Information about the Graphite Gasket DN50 PN10-40 2mm

Graphite Gasket DN50 PN10-40 2mm is manufactured from graphite with a stainless steel 316 sheet insert to improve blowout resistance. Graphite offers many advantages, including flexibility and high abrasion resistance.

The gaskets are designed for operation at high temperatures and can therefore be used in a wide range of applications. They are primarily used in steam systems and in the chemical, power generation, petrochemical, and processing industries.

Additional Information

• temperature: max. +450°C
• maximum pressure: 14MPa
• stability according to DIN 52913, 16h/300°C >48 N/mm²
