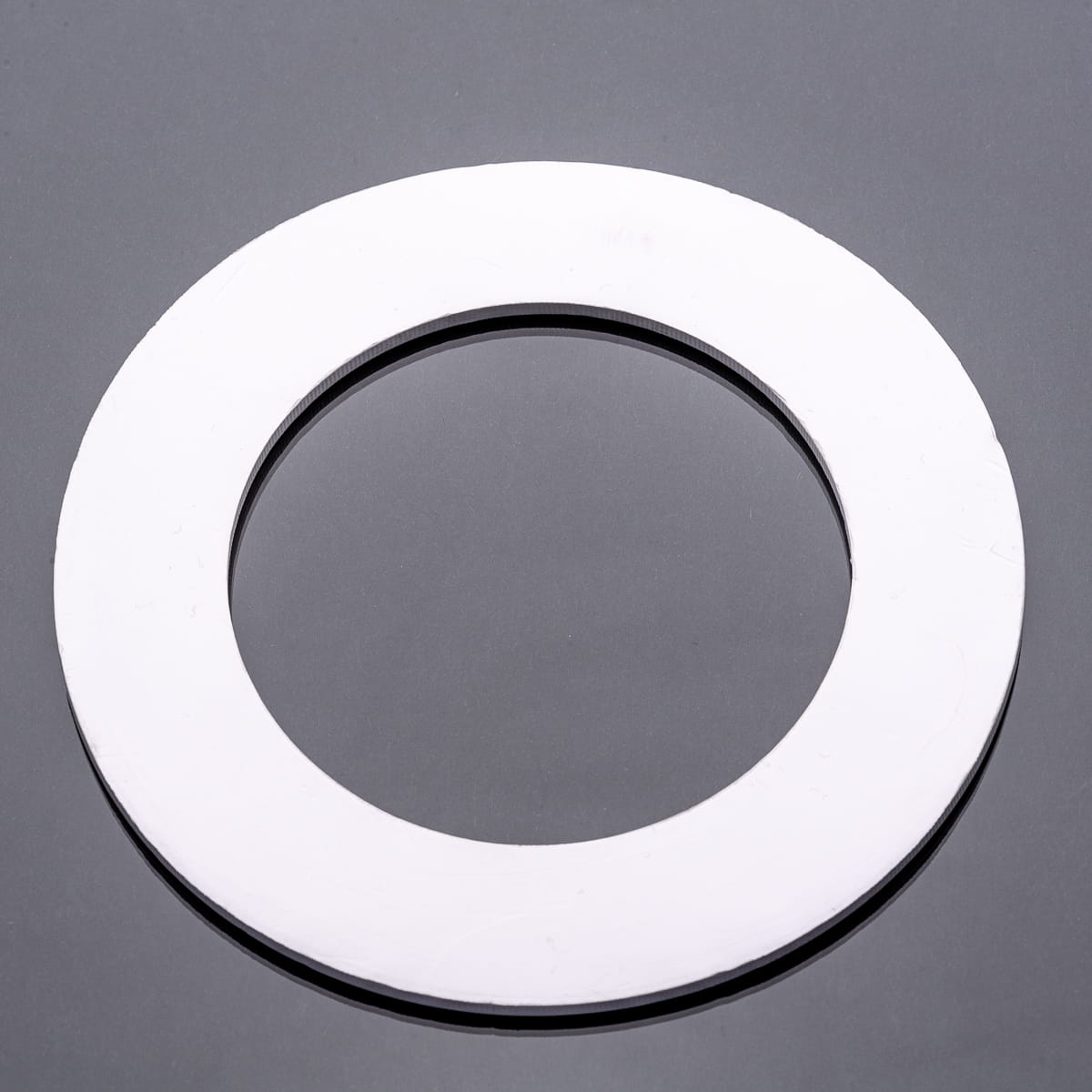

Gasket DN50 PN10 PN40 3mm PTFE

Gasket DN50 PN10 PN40 3mm PTFE

• Size: DN50
• Pressure Rating: PN10 – PN40
• Material: PTFE (Polytetrafluoroethylene)
• Type: TG (thinner than standard gasket) – for raised face and groove flanges according to EN1514-1
• Max Intermittent Temperature: 315°C
• Max Continuous Temperature: -200°C to +260°C
• Properties: High thermal resistance, no moisture absorption, asbestos-free, non-flammable

Inna nazwa: Gasket DN50 PN10 PN40 3mm PTFE sealing gasket, thermal insulation gasket

Information

Gasket DN50 PN10 PN40 3mm PTFE - offers a range of exceptional chemical and thermal properties not commonly found in other thermoplastics. Its high chemical resistance is due to the strong carbon-fluorine bond energy. It maintains its chemical resistance even at elevated temperatures.

In addition to applications in the food and chemical industries, PTFE is suitable for electrical applications due to its excellent high-frequency insulation properties. It is practically unaffected by solvents, with the exception of fluorine and some of its compounds. PTFE gaskets are designed for use in demanding and harsh environments.

Properties

• Max intermittent temperature: 315°C

• Max continuous temperature: -200°C to +260°C

• High thermal resistance

• No moisture absorption

• Media resistance: excellent resistance to chemicals, cold water, hot water, steam, alcohol, salt solutions, weak acids and bases

Manufacturing Options

Available with or without bolt holes (IBC type). Custom cutting available:

• According to EN1514-1, EN12560-1, ASME B16.20, DIN 2690

• According to customer technical drawings

• TG – flat gaskets for raised face and groove flanges

• SR – flat gaskets for male and female flanges

• IBC – flat gaskets for flat face flanges

• Full dimensional range, including custom shapes

• Large segment gaskets (puzzle-type construction)

Applications: Industrial installations, hydraulics, chemical industry, food industry. PTFE gaskets are used in harsh and demanding environments.

More about gaskets you may find here>>

We offer a wide range of gaskets. If you have any questions, please contact us. Call us at 63/2614202 or send an inquiry to the e-mail address: biuro@polberis.pl, we will prepare a price offer for you.
