Gasket DN25 PN40 PTFE FF
Regular price:
Regular price:
product unavailable
add to wish list
Description

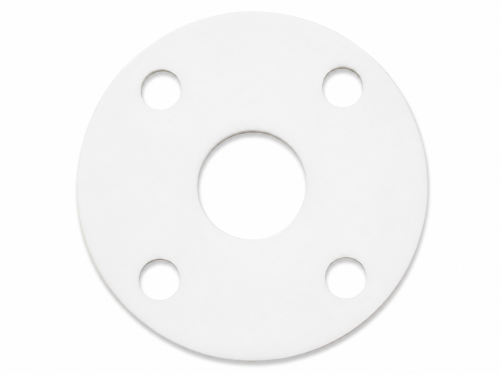

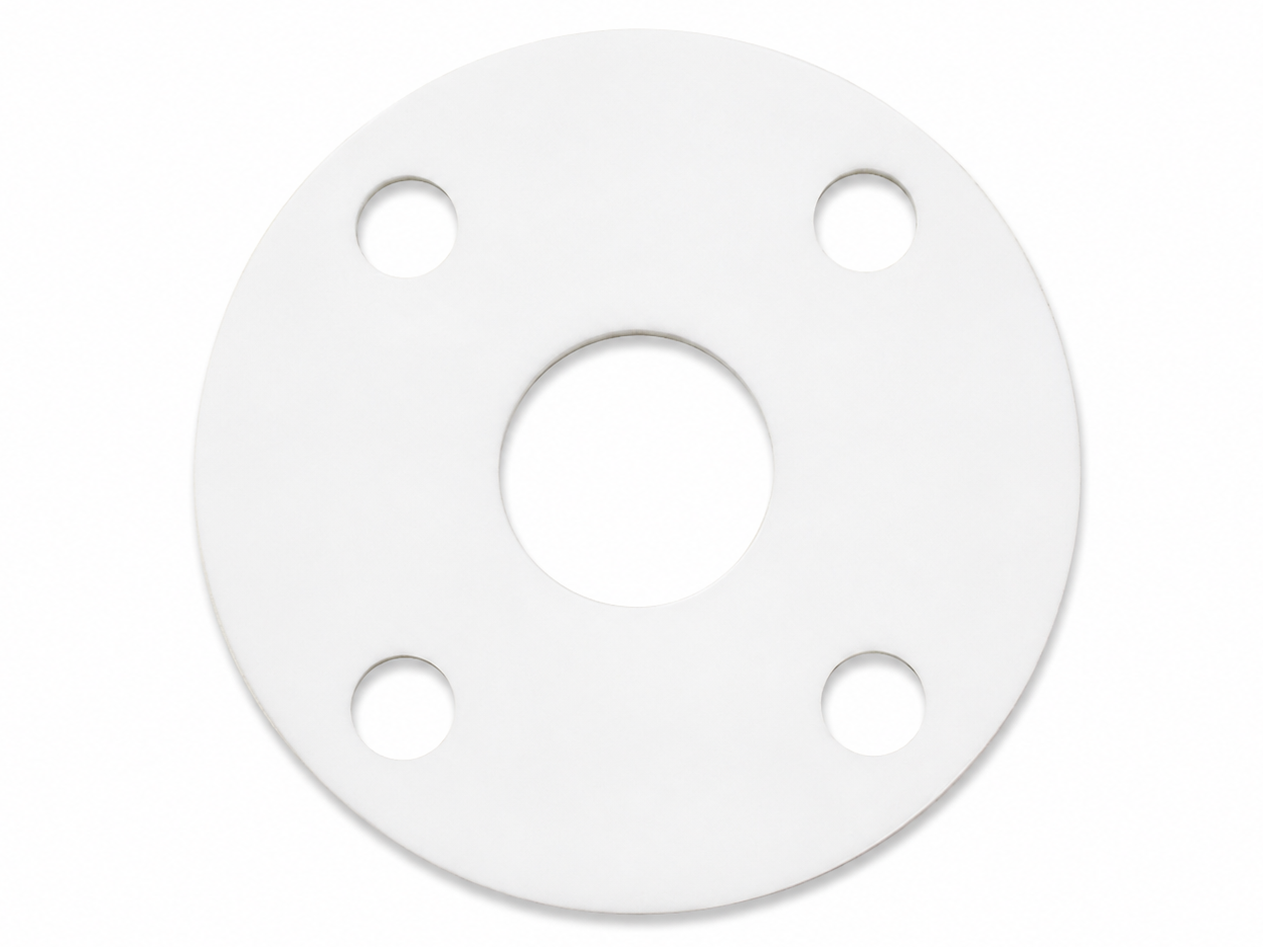

Gasket DN25 PN40 PTFE FF
- Size: DN25
- Pressure rating: PN40
- Material: PTFE
- Maximum intermittent temperature: 315°C
- Continuous operating temperature: -200°C to +260°C
- High thermal resistance
- Zero moisture absorption
- Non-asbestos, non-flammable material
Alternative Name: Gasket DN25 PN40 PTFE FF, PTFE sealing gasket, flat PTFE flange gasket, thermal insulation gasket, steel flange gasket.
Information
Gasket DN25 PN40 PTFE FF offers outstanding chemical and thermal resistance unmatched by most thermoplastics. Its exceptional chemical resistance results from the strong carbon-fluorine molecular bond, allowing reliable performance even at elevated temperatures.
In addition to applications in the food processing and chemical industries, PTFE is also widely used in electrical engineering due to its excellent high-frequency insulation properties.
PTFE is virtually unaffected by most solvents, with fluorine and certain fluorine compounds being among the few exceptions.
Properties
- Maximum intermittent temperature: 315°C
- Continuous operating temperature: -200°C to +260°C
- High thermal resistance
- Zero moisture absorption
- Suitable media: chemicals, cold water, hot water, steam, alcohols, salt solutions, dilute acids and alkalis, solvents
Available on request:
- With or without bolt holes (IBC type)
Applications
Gasket DN25 PN40 PTFE FF is widely used in:
- Industrial installations
- Hydraulic systems
- Chemical processing plants
- Food processing industry
- Pumps
- Industrial valves
- Heat exchangers
- Pharmaceutical equipment
- Refrigeration equipment
- Washing machines
- Hydraulic and pneumatic systems
- Agricultural machinery
- Chemical reactors
- Process piping
Custom Manufacturing
Available according to:
- EN 1514-1
- EN 12560-1
- ASME B16.20
- DIN 2690
- Customer technical drawings
- TG, SR and IBC flange gasket designs
- Custom shapes and dimensions
- Large segmented gaskets
We also offer PTFE gaskets, rubber gaskets, sealing sheets, and O-rings in a wide range of sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.
Gasket DN25 PN40 PTFE FF is also available in other sizes from our product range.
