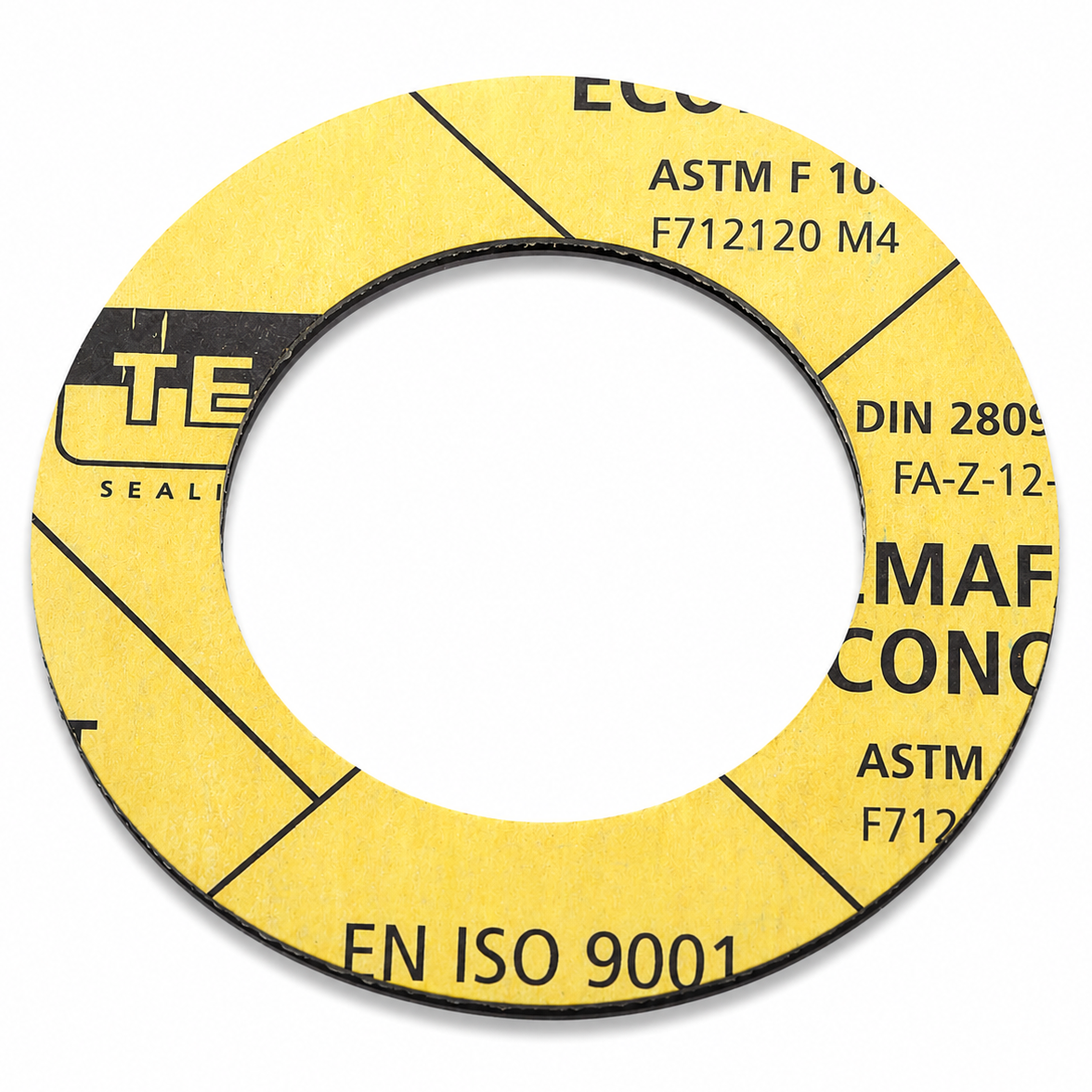

Gasket DN100 PN10 TEMAFAST ECONOMY

• Size: DN100 (115 × 162 × 2 mm)
• Pressure rating: PN10
• Material: TEMAFAST ECONOMY non-asbestos compressed fibre sheet manufactured from organic fibres bonded with NBR/SBR rubber according to DIN 28091-2 and ASTM F104
• Flat IBC gasket without bolt holes
• Maximum intermittent temperature: 210°C
• Maximum continuous operating temperature: 140°C
• Maximum continuous operating temperature with steam: 120°C
• Suitable media: cold water, hot water, steam, alcohol, salt solutions, dilute acids and alkalis
• Applications: industrial installations requiring economical sealing solutions for low operating pressures and temperatures

Alternative Name: Gasket DN100 PN10 TEMAFAST ECONOMY, yellow non-asbestos flat flange gasket, IBC gasket without bolt holes, compressed fibre gasket.

Information

Gasket DN100 PN10 TEMAFAST ECONOMY is manufactured from non-asbestos compressed fibre sheet made of organic fibres bonded with NBR/SBR rubber, produced according to DIN 28091-2 and ASTM F104. It is designed for general industrial sealing applications where moderate operating conditions are required.

TEMAFAST ECONOMY Properties

• Maximum intermittent temperature: 210°C
• Maximum continuous operating temperature: 140°C
• Maximum continuous operating temperature with steam: 120°C
• Available with or without bolt holes (IBC type)

Suitable Media

• Cold water
• Hot water
• Steam
• Alcohol
• Salt solutions
• Dilute acids
• Dilute alkalis

Applications

Recommended for:

• Industrial installations
• Water systems
• Steam systems
• General-purpose industrial sealing
• Low-pressure and moderate-temperature applications

Custom Manufacturing

Available according to:

• EN 1514-1
• EN 12560-1
• ASME B16.20
• DIN 2690
• Customer technical drawings
• TG, SR and IBC flange gasket designs
• Custom shapes and dimensions
• Large segmented gaskets
• Lead time: 2–5 days

Installation

• Verify the correct gasket size and material.
• Inspect the gasket for damage.
• Ensure flange faces are clean and undamaged.
• Clean bolts, nuts, and washers.
• Align the flange bolt holes.
• Carefully centre the gasket between the flanges.
• Do not use sealing compounds.
• Tighten evenly without over-compressing the gasket.

We also offer a wide range of industrial gaskets and O-rings. If you require a different material or size, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Gasket DN100 PN10 TEMAFAST ECONOMY is also available in other sizes from our product range.
