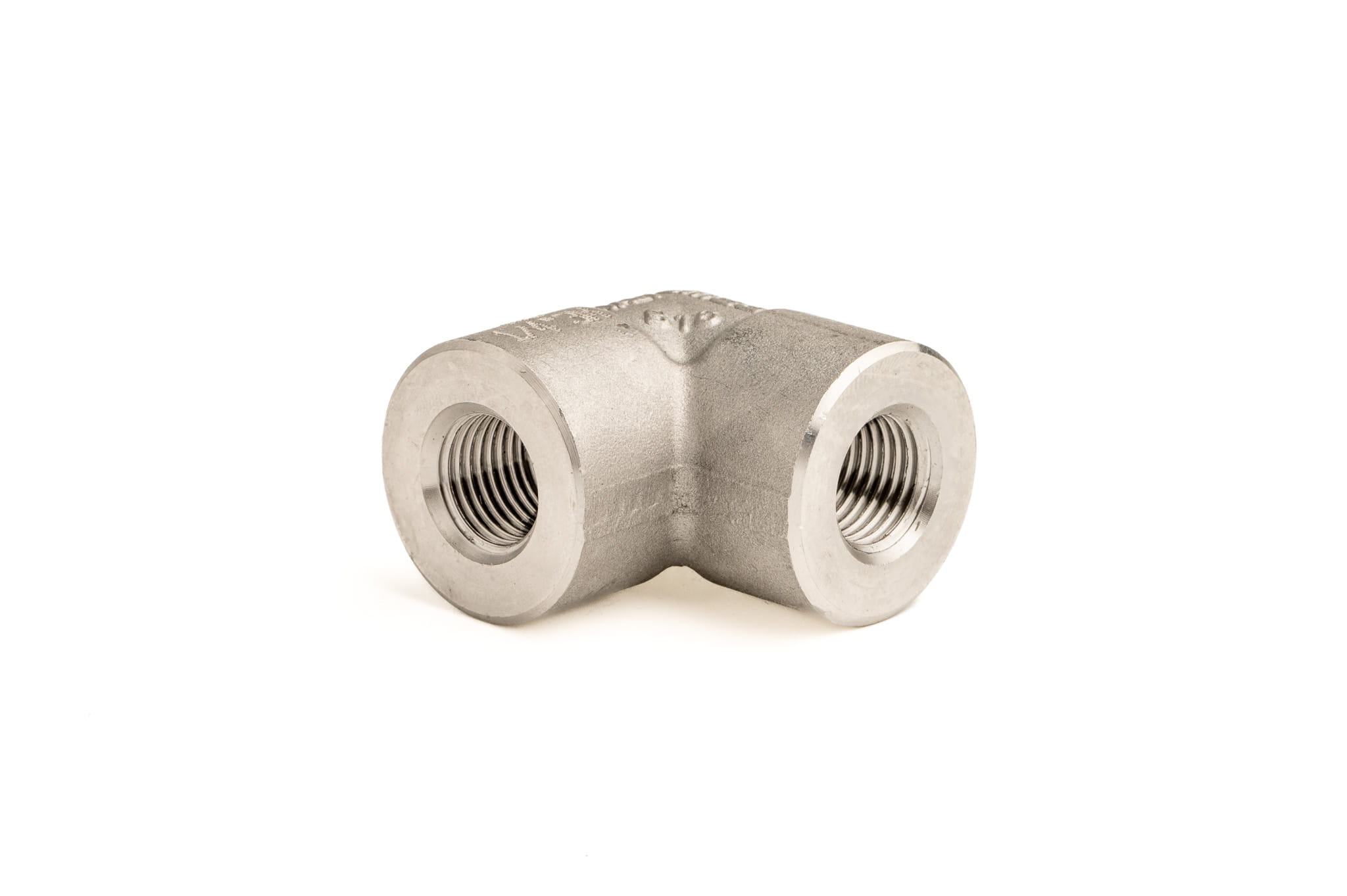

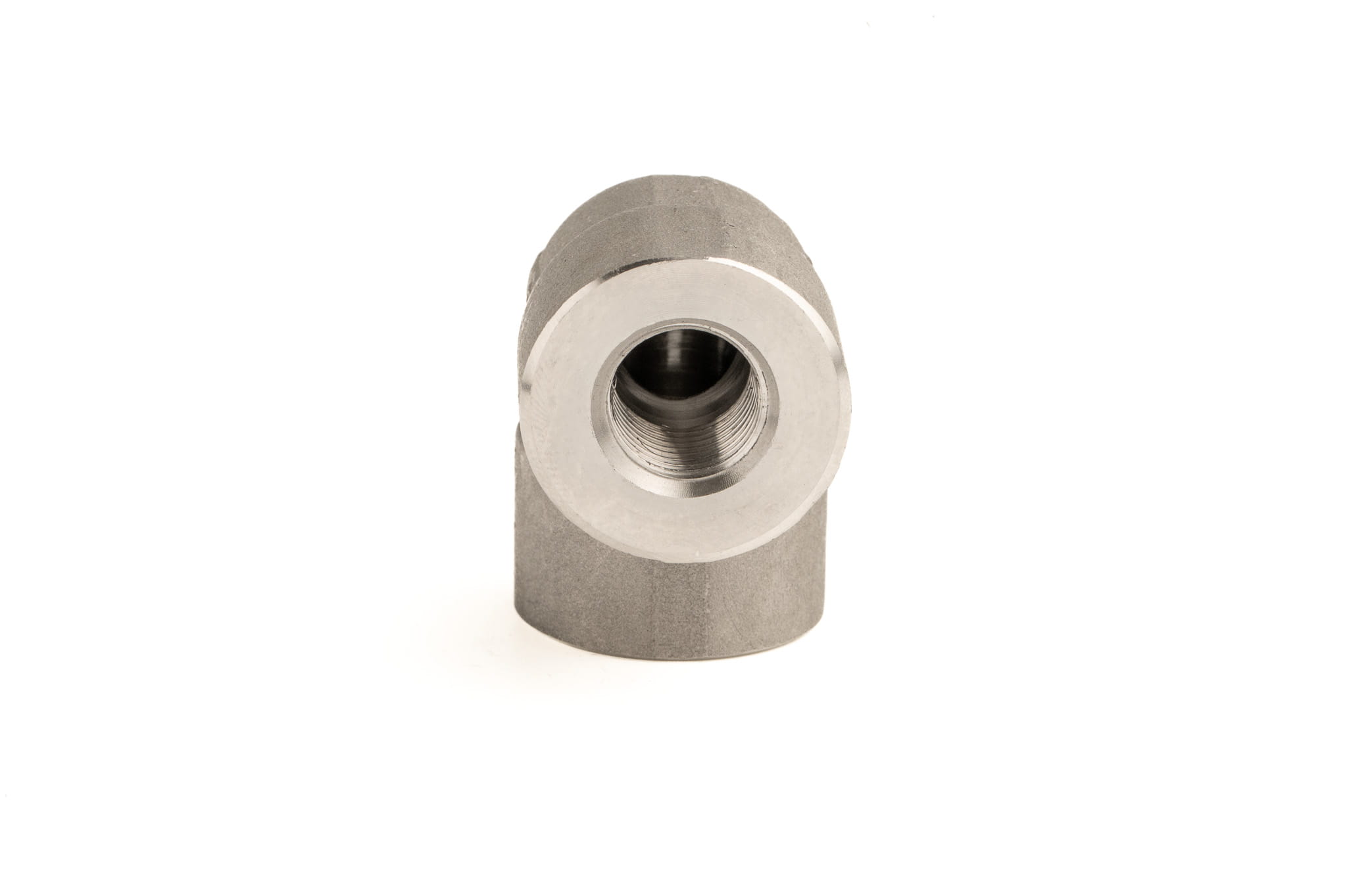

Elbow 1/4" BSPT 316L Class 3000 Rc 90°

Kolano 14'' BSPT 316L 3000 Rc 90st. bok.jpg

Availability: last items

Dispatched within: 24 hours

Gross price: €34.22

incl. 23% TAX, excl. shipping costs

Regular price:

34.22

Net price: €27.82

excl. 23% TAX, excl. shipping costs

Regular price:

quantity pcs

product unavailable

add to wish list

Vendor:

Product code: 12963A

Description

Elbow 1/4" BSPT 316L Class 3000 Rc 90°

Size: 1/4"
Female thread diameter: 11.4–11.9 mm
Thread type: BSPT
Material: 316L stainless steel
Suitable for welding
Female thread
Pressure class: Class 3000 (206 bar)
Angle: 90°
Precision manufactured
Applications: Industrial systems, water installations, acidic media, food processing industry
3.1 material certificate available on request (free of charge)

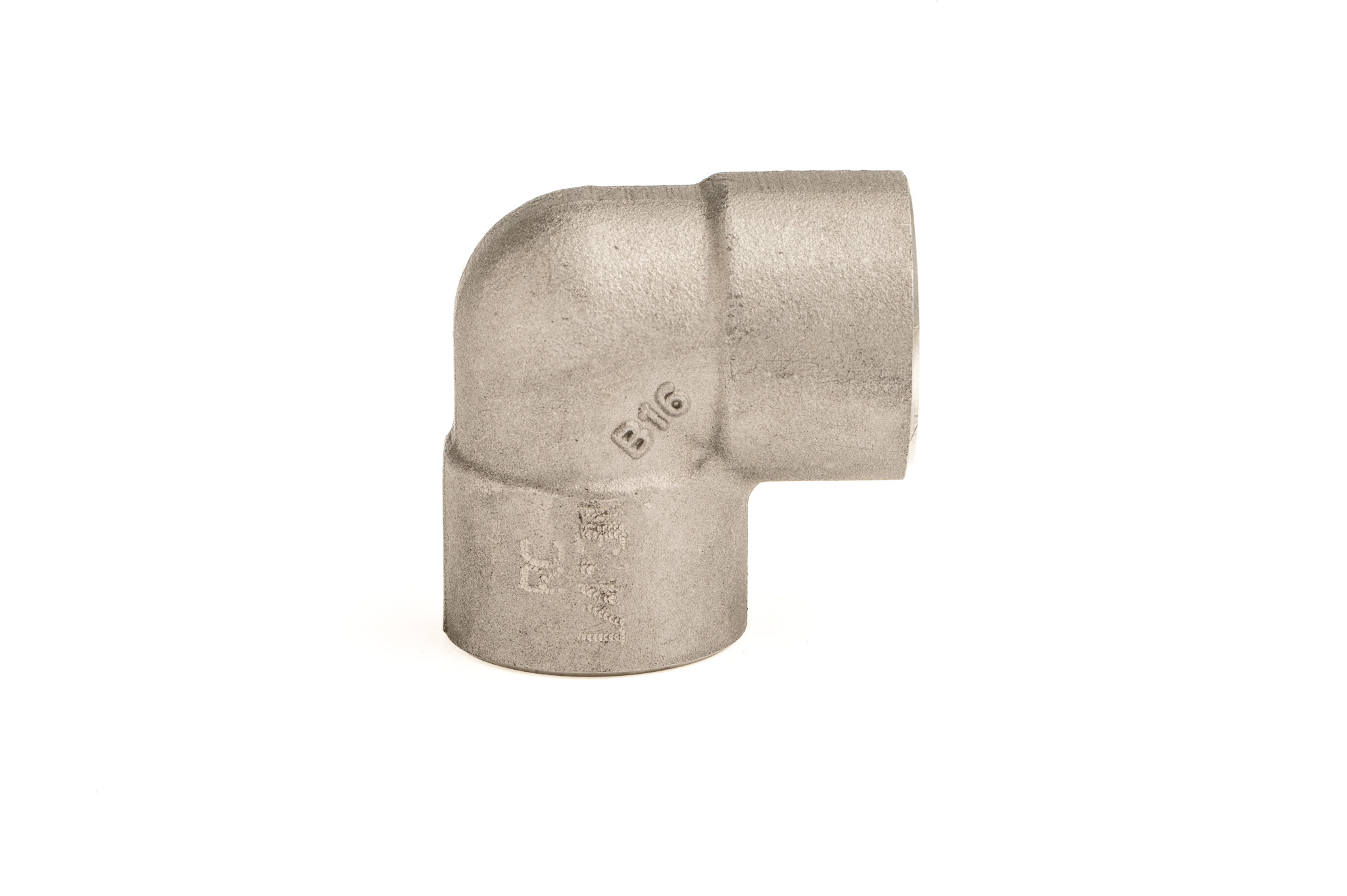

Kolano 316L BSPT Kolano 14'' BSPT 316L 3000 Rc 90st. BOK

Information

The 1/4" BSPT 316L Class 3000 Rc 90° Elbow is a high-pressure threaded fitting designed for demanding industrial installations. Manufactured from 316L stainless steel, it provides excellent corrosion resistance, outstanding weldability, and long service life in aggressive environments.

Material

316L stainless steel is one of the most popular corrosion-resistant stainless steels. It offers excellent weldability, formability, and outstanding resistance to corrosive media.

Applications

Pressure testing systems
Heat exchangers
Pharmaceutical equipment
Dairy industry
Brewing industry
Marine fittings
Coastal architecture
Food processing industry

Advantages of 316 / 316L Stainless Steel

Non-magnetic stainless steel
Excellent ductility
Excellent impact strength
Outstanding weldability
High mechanical strength
Wide operating temperature range

Advantages

High-pressure design (206 bar)
Precision manufactured
Excellent corrosion resistance
BSPT female thread
Suitable for demanding industrial applications

We also offer threaded elbows in many other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or email biuro@polberis.pl.

Learn more about threaded elbows here >>
