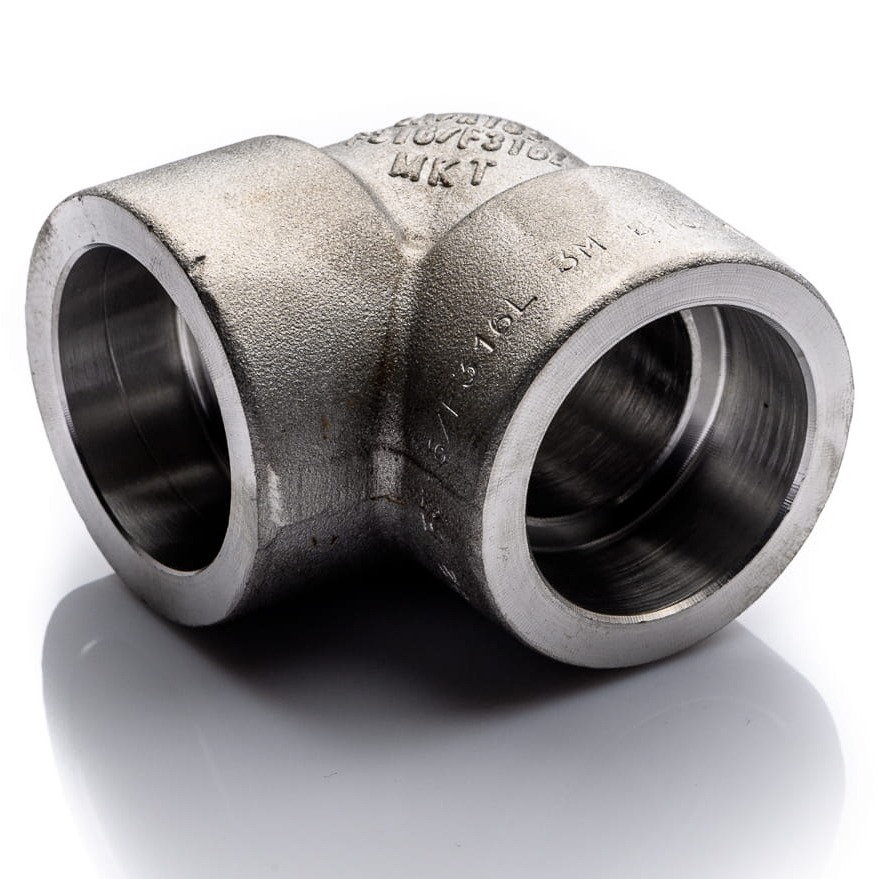

Elbow 1 1/2'' 90° Socket Weld 316L Class 3000

• Size: 1 1/2''
• Angle: 90°
• Connection type: Socket Weld (SW)
• Pressure class: Class 3000 (206 bar)
• Material: 316 / 316L stainless steel
• Socket Weld elbow with recessed socket
• Applications: high-pressure industrial systems, high-temperature installations, refineries, marine industry, food industry, steel industry, hydraulic systems, ships
• Manufactured according to: ANSI B16.11
• Note: No material certificate available (clearance sale)

Alternative Name: Elbow 1 1/2'' 90° Socket Weld 316L Class 3000, Socket Weld elbow, SW elbow, socket fitting, stainless steel elbow, 90° SW fitting, high-pressure elbow.

Information

Elbow 1 1/2'' 90° Socket Weld 316L Class 3000 belongs to the family of high-pressure Socket Weld fittings, where the pipe is inserted into a socket before welding. The welded socket creates a strong, leak-tight connection, ensuring excellent durability and reliability in demanding industrial applications.

Advantages

• Pipe ends do not require beveling before welding
• Quick and easy installation
• Excellent alternative to threaded fittings
• High mechanical strength and leak-tight performance

Limitations

• Not recommended for radioactive installations.

Available sizes

1/8'', 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', 2 1/2'', 3'', 3 1/2'', 4''.

316 / 316L Stainless Steel

316 / 316L stainless steel is a highly corrosion-resistant stainless steel with excellent welding and forming properties. It offers superior corrosion resistance compared to 304 stainless steel.

Equivalent grades: DIN 1.4401, 1.4404, SS316, SS316L, AISI 316, AISI 316L.

Typical applications: Socket Weld fittings, elbows, tees, reducers, flanges, pipes, bars, plates, flat bars, valves, dished heads, heat exchangers, pharmaceutical equipment, dairy equipment, brewing industry, marine fittings, coastal structures, and food processing equipment.

We also offer Socket Weld elbows in other sizes. If you have any questions, please contact us. Call +48 63 261 42 02 or send your enquiry to biuro@polberis.pl.

Elbow 1 1/2'' 90° Socket Weld 316L Class 3000 is also available in other sizes from our product range.

Learn more about Socket Weld fittings here >>
