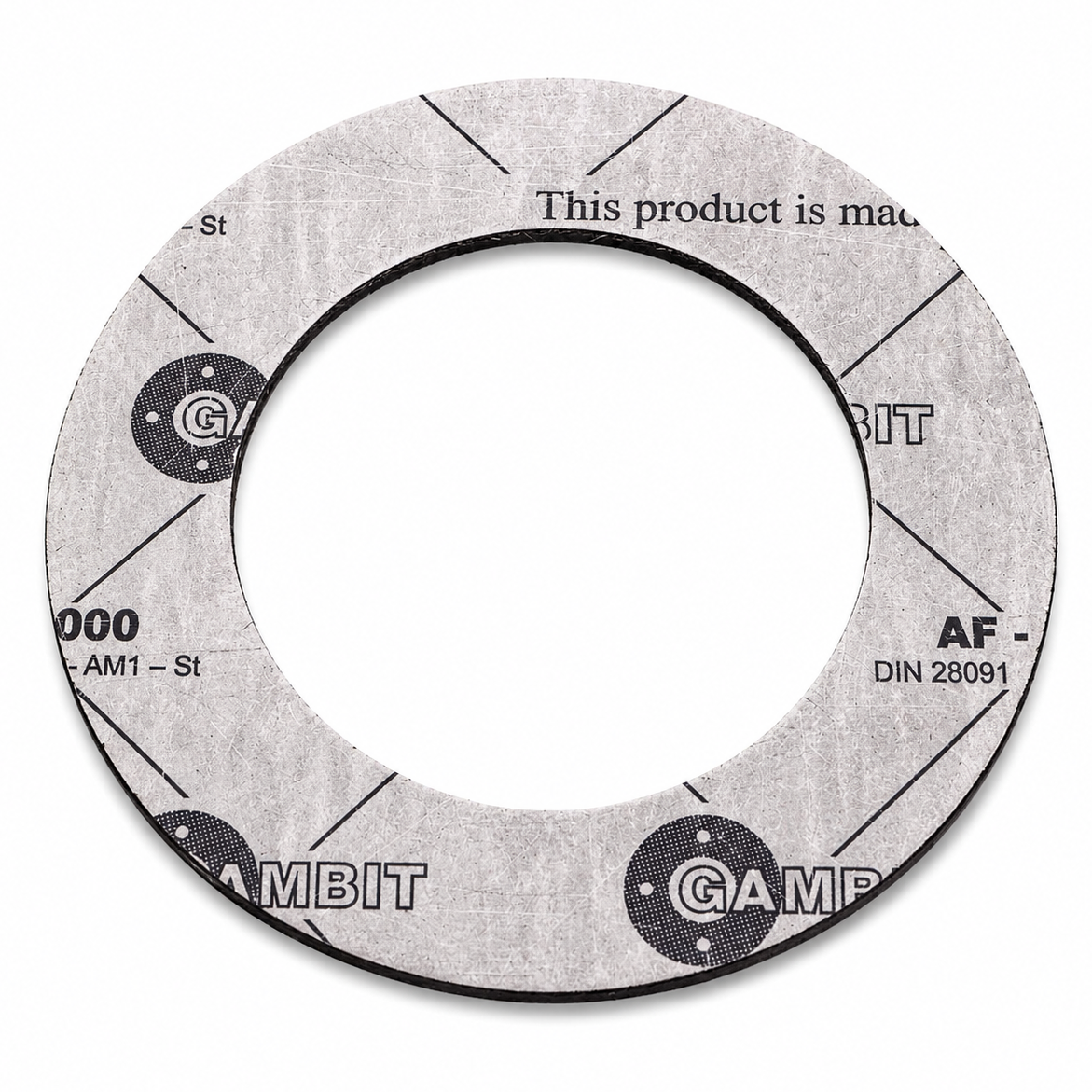

AF1000 Gasket DN32 PN10–40 × 2 mm is manufactured from GAMBIT AF-1000, a high-performance gasket material designed for high-temperature and high-pressure industrial applications. The gasket sheet provides excellent resistance to pressure fluctuations and dynamic operating conditions.

• Maximum continuous operating temperature: 350°C
• Maximum continuous operating temperature in steam: 250°C
• Maximum working pressure: 12 MPa

Available options

• External steel band reinforcement
• Internal steel band reinforcement
• Internal and external steel band reinforcement

Recommended media

Recommended for: water, steam, kerosene, fuels, oils, ethyl alcohol, methyl alcohol, gasoline, ethylene glycol, soap, silicone oil, air.

Test under operating conditions before use with: ammonia, benzene, chloroform, phosphoric acid, potassium permanganate, kerosene, mineral hydraulic oil, phosphate ester hydraulic oil, trichloroethylene, ammonium hydroxide, potassium hydroxide, sodium hydroxide, calcium hydroxide.

Do not use with: acids, alkalis, acetone, aniline, wet chlorine, dry chlorine, cyclohexanone, ethane, phenol, Freon 11 & 12, Freon 22, nitric acid (20%), nitric acid (40%), formic acid, acetic acid, sulphuric acid (20%), fuming sulphuric acid, sulphuric acid (65%), hydrochloric acid (20%), hydrochloric acid (36%), ethyl acetate, seawater.

Standard sheet sizes

• Sheet size: 1500 × 1500 mm
• Thicknesses: 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm, 6.0 mm

Custom gasket cutting

Available according to:

• EN 1514-1
• EN 12560-1
• ASME B16.20
• DIN 2690
• Customer technical drawings
• TG flat gaskets for tongue-and-groove flanges (PN-86/H-74374/03)
• SR flat gaskets for male-and-female flanges (PN-86/H-74374/04)
• IBC flat gaskets for raised-face flanges (PN-86/H-74374/02)
• Full dimensional range, including custom shapes
• Large segmented gaskets (puzzle type)
• Lead time: 2–5 days

How to install the AF1000 Gasket DN32 PN10–40 × 2 mm

• Check that the gasket is the correct size and material.
• Inspect the gasket for damage.
• Check that the flanges are not distorted.
• Clean the flange faces and fastening components (bolts, nuts, and washers).
• Align the flanges and bolt holes.
• Carefully insert and centre the gasket between the flanges.
• Do not use sealing compounds.
• Tighten the flanges, ensuring that the gasket is not over-compressed or damaged.

If you are unsure which gasket to choose, please contact us. Call +48 63 261 42 02 for technical advice.

We offer a wide range of gaskets and O-rings. If you have any questions, please contact us. Email: biuro@polberis.pl, Tel: +48 63 261 42 02. We will prepare a quotation for you.

AF1000 Gasket DN32 PN10–40 × 2 mm is also available in other sizes from our product range.
