Zawór kulowy 1 1/4'' NPT 63bar stal węglowa

Dostępność: duża ilość
Wysyłka w: 24 godziny
Cena brutto: 273,86 zł
zawiera 23% VAT, bez kosztów dostawy
273.86
Cena netto: 222,65 zł
bez 23% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: GENEBRE
Kod produktu: 12187D
Pin It

Opis

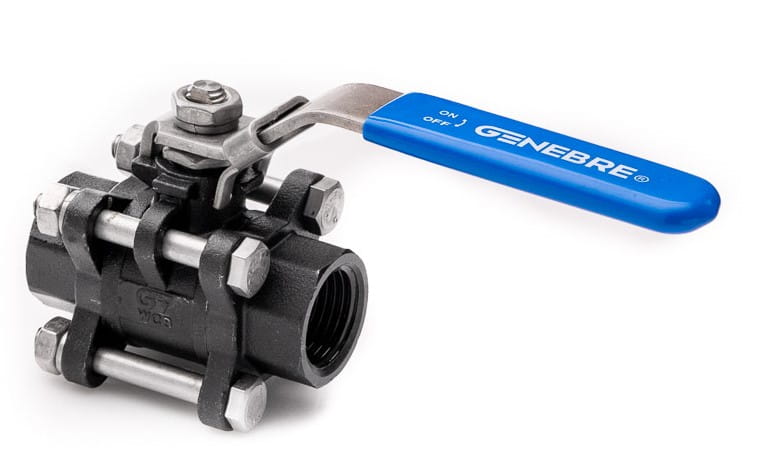

Ball valve 1 1/4'' NPT 63bar carbon steel

  • size: 1 1/4''
  • material: carbon steel
  • medium: WOG i.e. water oil gas
  • thread: NPT
  • pressure: 63 bar
  • max. working pressure: 1000 p.s.i.
  • operation: lever
  • handle color: blue
  • operating temperature –25 ºC + 180 ºC.
  • seat/seal: PTFE
  • ball/pin: 316 stainless steel
  • lever with locking system
  • solid workmanship
  • quality control carried out strictly in accordance with applicable standards
  • application: in industry, agriculture, household

Inna nazwa: zawór kulowy F-F gwintowany równoprzelotowy niebieska rączka ball Valve 1" Carbon Steel 150psi Threaded NPT 1000 WOG CS



Ciśnienie pracy zaworu kulowego jest zależne od temperatury pracy zaworu. Należy je odczytać z poniższego wykresu, tzn.:

  • Przy temperaturze pracy -20ºC zawór wytrzyma ciśnienie 1000 p.s.i. tj. 69bar
  • Przy temperaturze pracy +40ºC zawór wytrzyma ciśnienie 1000 p.s.i. tj. 69 bar
  • Przy temperaturze pracy +100ºC zawór wytrzyma ciśnienie 600 p.s.i. tj. 41,4 bar
  • Przy temperaturze pracy +150ºC zawór wytrzyma ciśnienie 350 p.s.i. tj. 24,13 bar

Other name: F-F Threaded Equal Port Ball Valve Blue Handle Ball Valve 1" Carbon Steel 150psi Threaded NPT 1000 WOG CS Ball valve 1'' NPT 63bar carbon steel



The operating pressure of a ball valve depends on the valve's operating temperature. They should be read from the chart below, i.e.:

At an operating temperature of -20ºC, the valve will withstand a pressure of 1000 p.s.i. i.e. 69bar
At an operating temperature of +40ºC, the valve will withstand a pressure of 1000 p.s.i. i.e. 69 bar
At an operating temperature of +100ºC, the valve will withstand a pressure of 600 p.s.i. i.e. 41.4 bar
At an operating temperature of +150ºC, the valve will withstand a pressure of 350 p.s.i. i.e. 24.13 bar



This ball valve model is suitable for installations with high requirements. Withstands a wide range of temperatures. The PTFE Teflon seal allows safe flow of most media.

More information about ball valves you may find here >>

Our offer includes also ball valves in other sizes. If you have any questions contact us. Call 63/2614202 or send an inquiry to email: biuro@polberis.pl

If you want to know how much you will pay for transport to your country. Write us an email: biuro@polberis.pl. We will send you an offer. You have a European VAT number and don't want to pay TAX. Write to us for an offer. Please free feel to contact us for any information.
